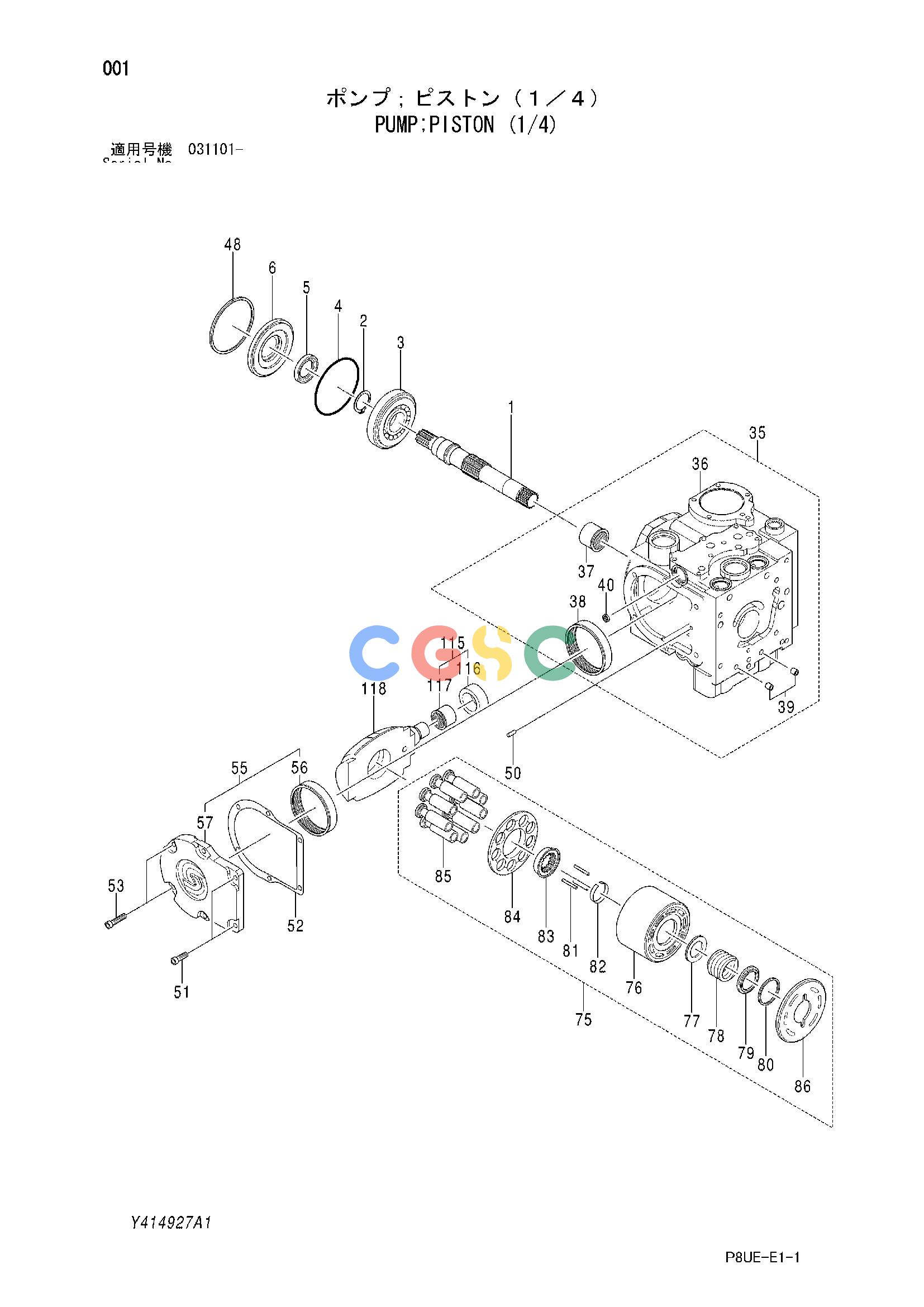

日立零件查询（CC150C-3A）PUMP;PISTON (1/4) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y414927 | [1] | PUMP;PISTON (1/4) | This PART NO. consists of all parts shown in PUMP;PISTON(1/4) to (4/4). |
| 1. | Y416860 | [1] | SHAFT | |
| 2. | Y416861 | [1] | RING;RETAINING | |
| 3. | Y416862 | [1] | BRG.;ROL. | |
| 4. | Y416863 | [1] | O-RING | |
| 5. | Y416864 | [1] | SEAL | |
| 6. | Y461865 | [1] | SEAL | |
| 35. | +++++++ | [1] | HOUSING ASS'Y | |
| 36. | +++++++ | [1] | HOUSING | |
| 37. | Y416893 | [1] | BRG.;NEEDLE | |
| 38. | +++++++ | [1] | BRG.;NEEDLE | |
| 39. | Y416894 | [2] | PLUG | |
| 40. | Y416895 | [1] | FILTER | |
| 48. | Y416902 | [1] | RING;RETAINING | |
| 50. | Y416904 | [1] | PIN | |
| 51. | 4263228 | [3] | SCREW | |
| 52. | Y416906 | [1] | GASKET SIDE COVER | |
| 53. | Y416907 | [4] | SOCKET;SCREW | |
| 55. | Y416908 | [1] | COVER;SIDE ASS'Y | |
| 56. | +++++++ | [1] | BRG.;NEEDLE | |
| 57. | +++++++ | [1] | COVER;SIDE | |
| 75. | Y416926 | [1] | BLOCK;CYL. KIT | |
| 76. | Y416927 | [1] | BLOCK;CYL. | |
| 77. | Y416928 | [1] | WASHER | |
| 78. | Y416929 | [1] | SPRING | |
| 79. | Y416930 | [1] | WASHER | |
| 80. | Y416931 | [1] | RING;RETAINING | |
| 81. | Y416932 | [3] | PIN | |
| 82. | Y416933 | [1] | RETAINER | |
| 83. | Y416934 | [1] | GUIDE | |
| 84. | Y416935 | [1] | RETAINER | |
| 85. | Y416936 | [9] | PISTON | |
| 86. | Y416937 | [1] | PLATE;VALVE | |
| 115. | Y416962 | [1] | BRG. ASS'Y | |
| 116. | +++++++ | [1] | CAM | |
| 117. | Y416963 | [1] | BRG.;NEEDLE | |
| 118. | Y416964 | [1] | PLATE;SWASH | |
