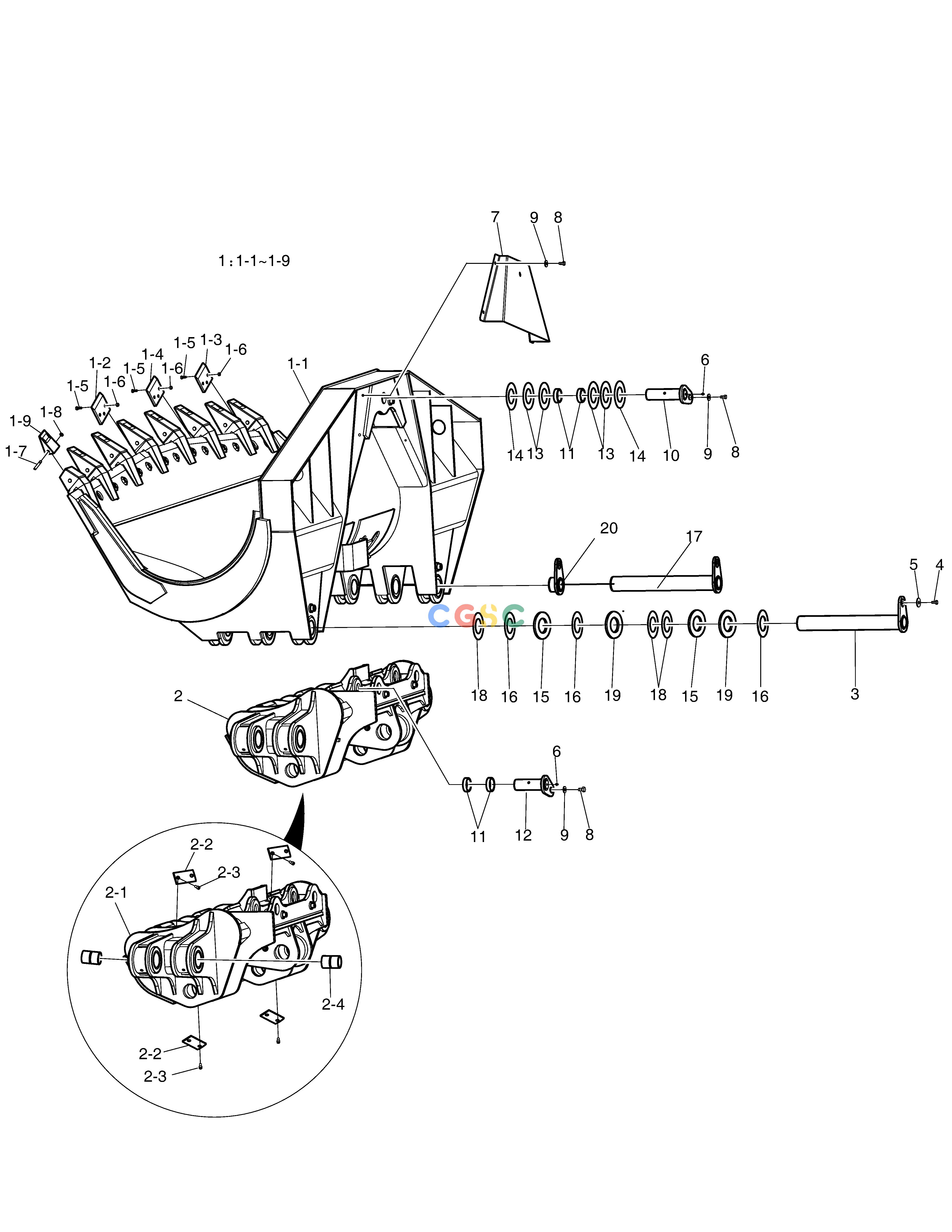

斗山零件查询BUCKET ASS'Y-DISCHARGE SIDE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01180A
|
[1] |
BUCKET ASSY
|
|
| 1. |
160601-00650A
|
[1] |
|
|
| 1-1. |
160601-00651A
|
[1] |
|
|
| 1-2. |
250201-00960
|
[2] |
|
|
| 1-3. |
250201-00961
|
[2] |
|
|
| 1-4. |
250201-00962
|
[1] |
|
|
| 1-5. |
S0533866
|
[15] |
|
|
| 1-6. |
S4013333
|
[15] |
. NUT
|
|
| 1-7. |
K1055020
|
[8] |
PIN
|
|
| 1-8. |
K1055021
|
[8] |
STOPPER
|
|
| 1-9. |
K1055017
|
[8] |
POINT,TOOTH
|
|
| 10. |
120501-02171
|
[1] |
|
|
| 11. |
110951-00750
|
[4] |
|
|
| 12. |
120501-02172
|
[1] |
|
|
| 13. |
DS7701484
|
[8] |
|
|
| 14. |
DS7701485
|
[4] |
|
|
| 15. |
DS7701298
|
[3] |
SHIM
|
|
| 16. |
DS7701474
|
[3] |
SHIM
|
|
| 17. |
120501-02175A
|
[1] |
|
|
| 18. |
110947-00313
|
[2] |
|
|
| 19. |
110947-00314
|
[2] |
|
|
| 2. |
110958-01571A
|
[1] |
|
|
| 2-1. |
110958-01572A
|
[1] |
|
|
| 2-2. |
250201-00809
|
[4] |
PLATE
|
|
| 2-3. |
S2221063
|
[8] |
BOLT,SOCKET
|
|
| 2-4. |
130702-00128A
|
[4] |
|
|
| 20. |
110508-12910
|
[1] |
|
|
| 3. |
120501-02170A
|
[1] |
|
|
| 4. |
S0521063
|
[2] |
BOLT
|
|
| 5. |
DS0401023
|
[2] |
WASHER,PLAIN
|
|
| 6. |
S6710041
|
[6] |
NIPPLE,GREASE
|
|
| 7. |
110508-09919
|
[1] |
|
|
| 8. |
S0515053
|
[6] |
BOLT M12X1.75X25
|
|
| 9. |
DS0401054
|
[6] |
WASHER,PIN
|
|
