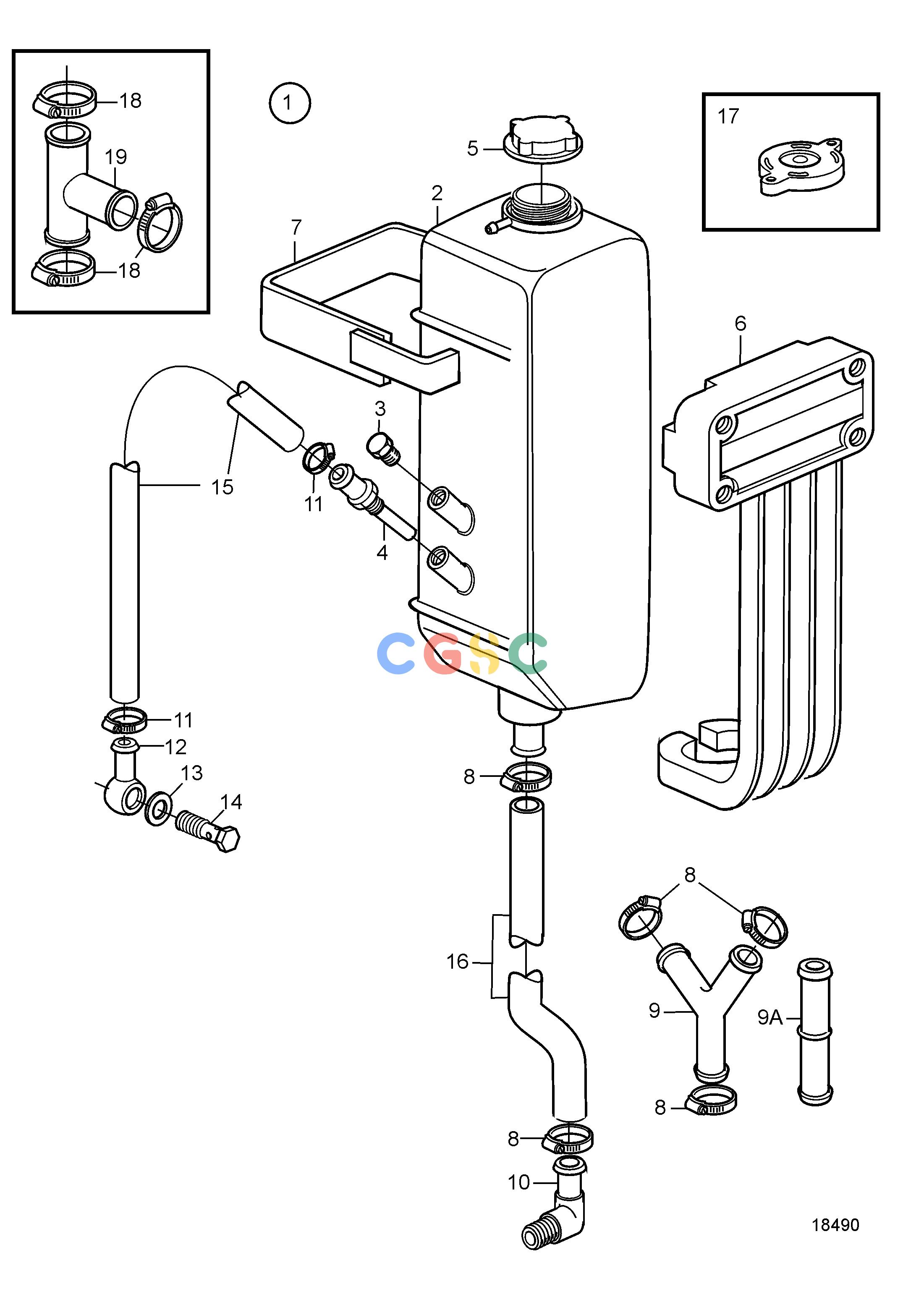

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ECooling SystemExpansion Tank: 3581297EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581297
|
[1] |
Expansion tank
|
|
| 2. |
844062
|
[1] |
Expansion tank
|
|
| 3. |
947660
|
[1] |
Plug
|
|
| 4. |
843247
|
[1] |
Connecting pipe
|
|
| 5. |
860866
|
[1] |
Filler cap
|
|
| 6. |
843260
|
[1] |
Bracket
|
|
| 7. |
843266
|
[1] |
Clamp
|
|
| 8. |
943472
|
[6] |
Hose clamp
|
|
| 9. |
345845
|
[1] |
Distribution pipe
|
|
| 9A. |
831752
|
[1] |
Connecting pipe
|
|
| 10. |
948600
|
[1] |
Elbow nipple
|
|
| 11. |
994556
|
[2] |
Hose clamp
|
|
| 12. |
858750
|
[1] |
Banjo nipple
|
|
| 13. |
11994
|
[2] |
Gasket
|
|
| 14. |
947975
|
[1] |
Hollow screw
|
|
| 15. |
942700
|
[1] |
Hose
|
|
| 16. |
952969
|
[1] |
Hose
|
|
| 17. |
845587
|
[1] |
Filler cap
|
|
| 18. |
945652
|
[4] |
Hose clamp
|
|
