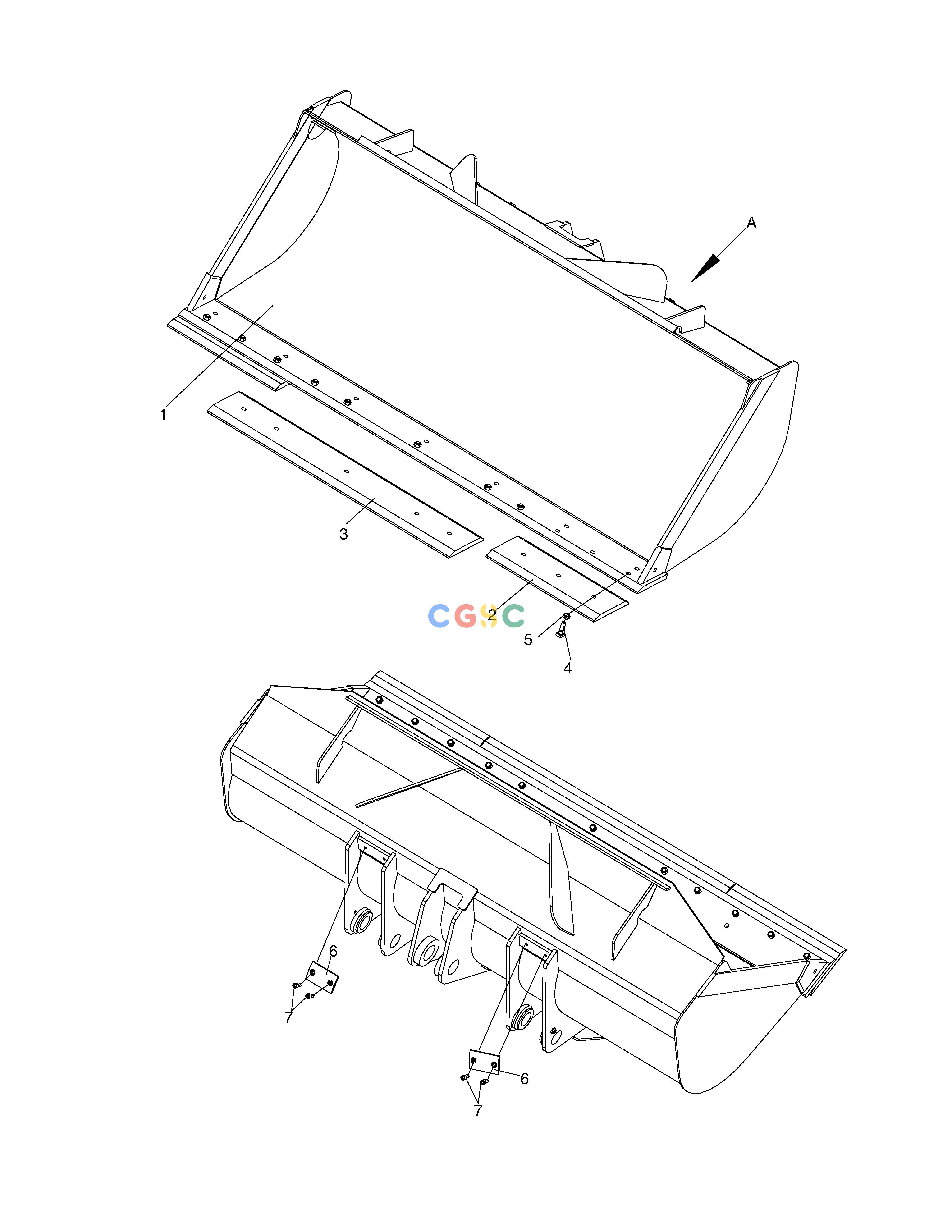

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 230104-01814 | [1] | BUCKET ASSY | 230104-01814A |
| -. | 230104-01814A | [1] | BUCKET ASSY;31M | |
| 1. | 230104-01815 | [1] | BUCKET | |
| 1. | 230104-01815A | [1] | BUCKET | |
| 2. | K1040465A | [1] | TOOTH;SIDE(R.H) | |
| 3. | K1040464A | [5] | TOOTH | |
| 4. | K1040466A | [1] | TOOTH;SIDE(L.H) | |
| 5. | S4013133 | [16] | NUT | |
| 6. | K1041947 | [2] | BOLT | |
| 7. | K1047626 | [14] | BOLT | |
| 8. | K1047636 | [4] | SHIM |
