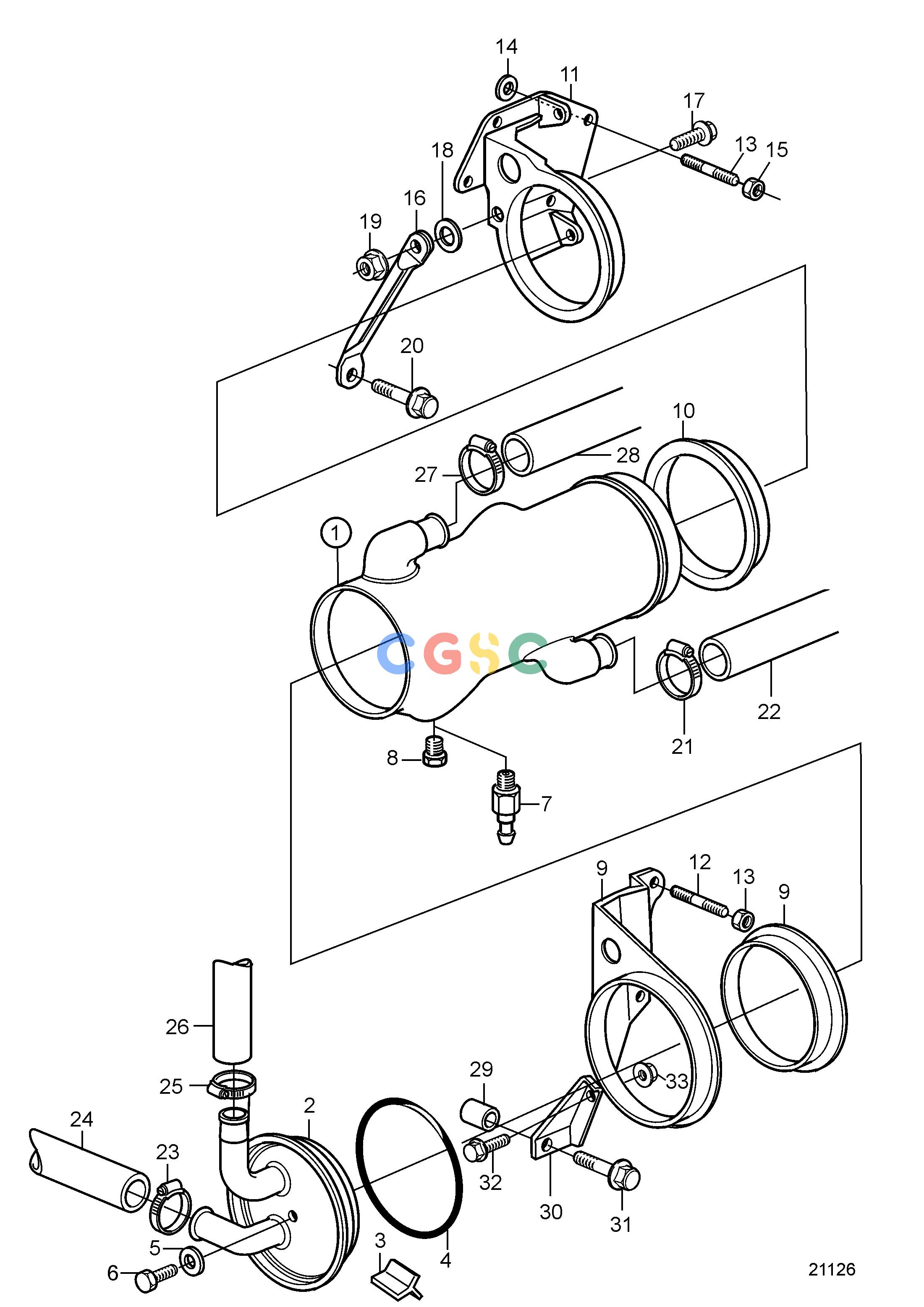

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ECooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3586703
|
[1] |
Heat exchanger
|
|
| 2. |
860755
|
[1] |
Cap
|
|
| 3. |
860127
|
[3] |
Sealing strip
|
|
| 4. |
925027
|
[1] |
O-ring
|
|
| 5. |
964106
|
[1] |
Gasket
|
|
| 6. |
963567
|
[1] |
Hexagon screw
|
|
| 7. |
949918
|
[1] |
Shut-off cock
|
|
| 8. |
861551
|
[1] |
Plug
|
For 3586703
|
| 9. |
3581466
|
[1] |
Bracket
|
|
| 10. |
838733
|
[2] |
Back-up ring
|
|
| 11. |
3581468
|
[1] |
Bracket
|
|
| 12. |
953005
|
[1] |
Stud
|
|
| 12. |
17378
|
[1] |
Stud
|
|
| 13. |
953001
|
[4] |
Stud
|
|
| 14. |
960142
|
[2] |
Washer
|
|
| 15. |
971095
|
[6] |
Flange nut
|
|
| 16. |
860450
|
[1] |
Stay
|
|
| 17. |
946671
|
[1] |
Flange screw
|
|
| 18. |
3850090
|
[1] |
Spacer
|
|
| 19. |
948645
|
[1] |
Flange lock nut
|
|
| 20. |
965193
|
[1] |
Flange screw
|
|
| 21. |
993964
|
[1] |
Hose clamp
|
|
| 22. |
3581470
|
[1] |
Hose
|
Heat exchanger-water pump.
|
| 23. |
994560
|
[1] |
Hose clamp
|
|
| 24. |
860405
|
[1] |
Hose
|
Heat exchanger-after cooler.
|
| 25. |
994560
|
[1] |
Hose clamp
|
|
| 26. |
3581474
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow.
|
| 27. |
993964
|
[1] |
Hose clamp
|
|
| 28. |
3581469
|
[1] |
Hose
|
Thermostat housing-heat exchanger.
|
| 29. |
861554
|
[1] |
Spacer
|
|
| 30. |
3581467
|
[1] |
Stay
|
|
| 31. |
965226
|
[1] |
Flange screw
|
|
| 32. |
946440
|
[1] |
Flange screw
|
|
| 33. |
948645
|
[1] |
Flange lock nut
|
|
