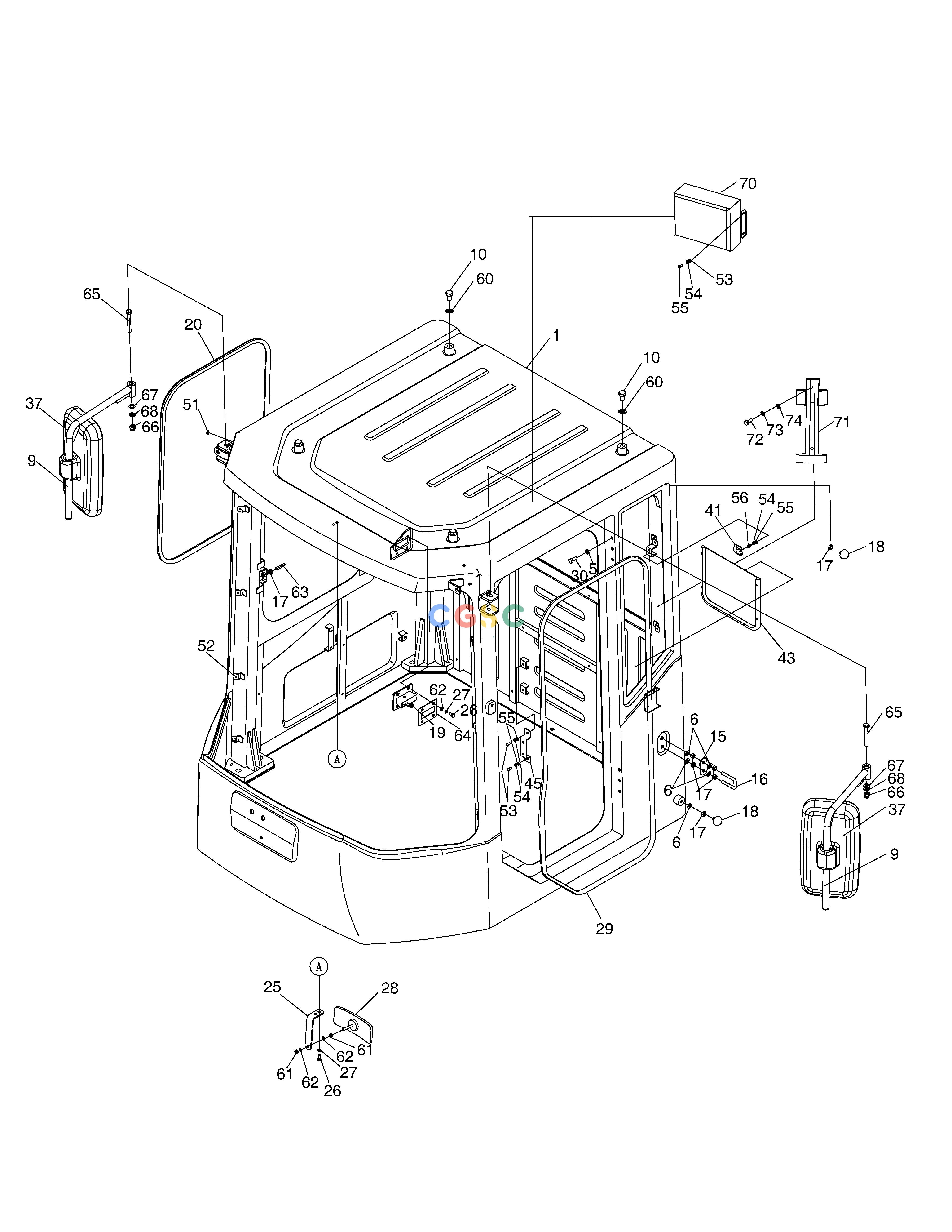

斗山零件查询CABIN(1) - BODY;ROPS&TINTED GLASS SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-01371C
|
[1] |
CABIN ASSY;TIN&ROPS
|
|
| -. |
220101-01371
|
[1] |
CABIN ASSY;5T
|
|
| 1. |
160604-00212A
|
[1] |
BODY ASSY,CABIN
|
|
| 10. |
S0521066
|
[4] |
BOLT
|
|
| 15. |
K1041149
|
[1] |
PLATE
|
|
| 16. |
120119-00001
|
[1] |
BOLT,U;CABIN
|
|
| 17. |
S4012633
|
[8] |
NUT
|
|
| 18. |
K1041151
|
[3] |
RUBBER
|
|
| 19. |
K1041152
|
[1] |
LOCK
|
|
| 20. |
K1041154
|
[1] |
RUBBER
|
|
| 25. |
110405-00001
|
[1] |
BRACKET;MIRROR
|
|
| 26. |
S0508666
|
[6] |
BOLT
|
|
| 27. |
S5102503
|
[6] |
. WASHER
|
|
| 28. |
K1041159
|
[1] |
MIRROR;REAR VIEW
|
|
| 29. |
K1041160
|
[1] |
RUBBER
|
|
| 30. |
S0512063
|
[12] |
WASHER
|
|
| 37. |
K1048042
|
[2] |
MIRROR
|
|
| 41. |
K1048046
|
[2] |
HOOK
|
|
| 43. |
K1048048
|
[1] |
NET
|
|
| 45. |
110406-00074
|
[1] |
BRACKET;CABIN
|
|
| 5. |
S5102603
|
[12] |
. WASHER
|
|
| 51. |
K1048193
|
[2] |
BUSHING;RUBBER
|
|
| 52. |
4120-2219
|
[47] |
SCRIVET
|
|
| 53. |
S0504656
|
[4] |
BOLT
|
|
| 54. |
S5102303
|
[8] |
. WASHER
|
|
| 55. |
S5000313
|
[8] |
WASHER
|
|
| 56. |
S3450978
|
[4] |
SCREWS MACHINE
|
|
| 6. |
S5010613
|
[6] |
WASHER
|
|
| 60. |
S5010913
|
[4] |
WASHER
|
|
| 61. |
180308-00052
|
[1] |
RUBBER;CABIN
|
|
| 62. |
S0561263
|
[2] |
BOLT M12X1.75X75
|
|
| 63. |
120112-00122
|
[1] |
BOLT;CABIN
|
|
| 64. |
DS0401066
|
[6] |
WASHER,PLAIN
|
|
| 65. |
S5102703
|
[2] |
WASHER
|
|
| 66. |
S4400703
|
[2] |
NUT,HEX CAP
|
|
| 67. |
DS0401066
|
[6] |
WASHER,PLAIN
|
|
| 68. |
S5102703
|
[2] |
WASHER
|
|
| 70. |
250105-00484A
|
[1] |
PLATE,CABIN
|
|
| 71. |
110406-01994
|
[1] |
BRACKET
|
|
| 72. |
S3450848
|
[2] |
SCREW,MACHINE
|
|
| 73. |
S5102203
|
[2] |
WASHER
|
|
| 74. |
S5000213
|
[2] |
. WASHER
|
|
| 9. |
110406-00807B
|
[2] |
BRACKET,MIRROR,BASE
|
|
