沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ECooling SystemOil Cooler, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
188 次

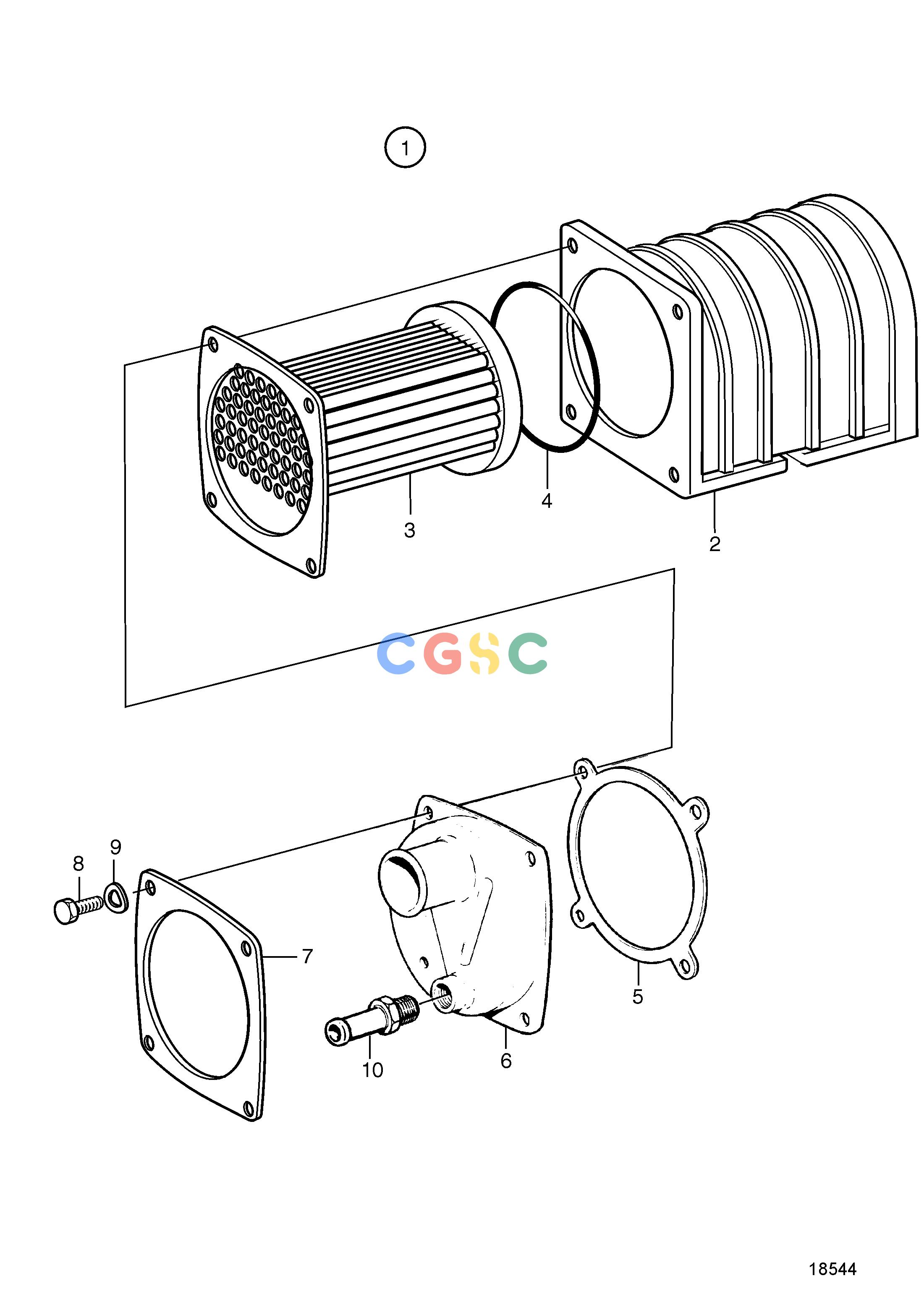

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860635
|
[1] |
Oil cooler
|
|
| 2. |
|
|
|
|
| 3. |
860636
|
[1] |
Insert
|
|
| 4. |
948981
|
[1] |
O-ring
|
|
| 5. |
842597
|
[1] |
Gasket
|
|
| 6. |
842602
|
[1] |
End cover
|
|
| 7. |
842596
|
[1] |
Flange
|
|
| 8. |
955297
|
[4] |
Hexagon screw
|
|
| 9. |
941907
|
[4] |
Spring washer
|
|
| 10. |
949918
|
[1] |
Shut-off cock
|
|
