神钢零件查询(F4HFE6136 B003) - ENGINE 5801939277 47603479 SPRAYER PATRIOT 2250 T4B (7/15-) (50.200.AA) - AIR CONDITIONING COMPRESSOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
762 次

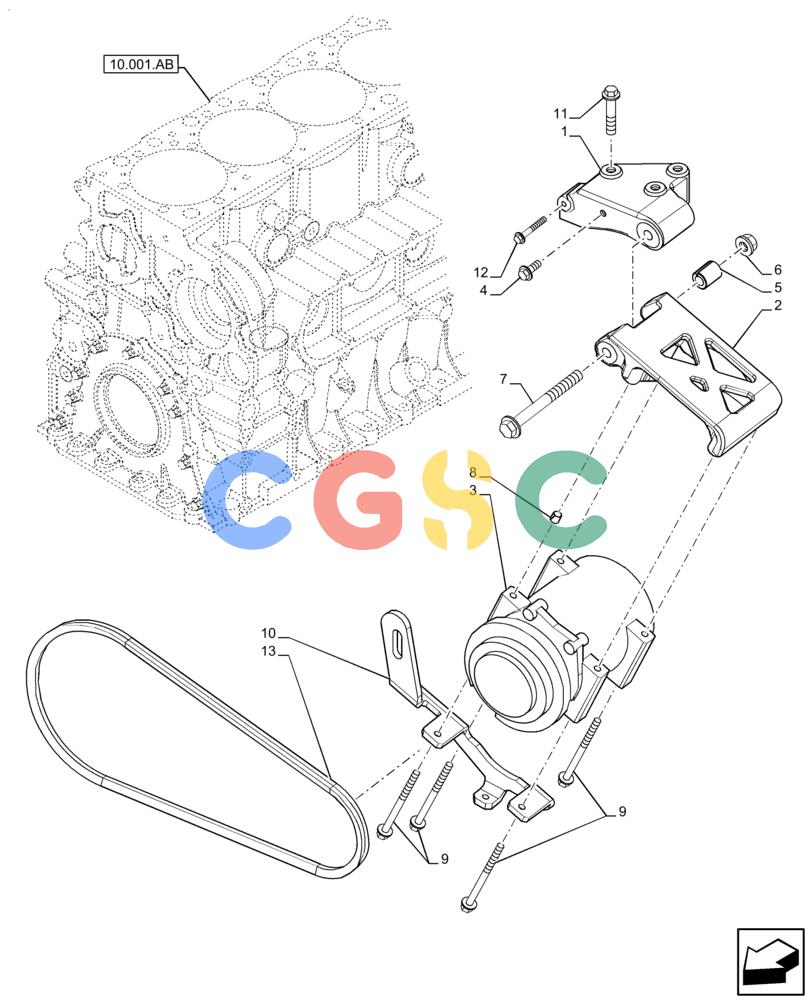

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 2852624 | [1] | AIRCOND. COMPRESSOR | TOR Superseded by part number: 84159489 |
| 4. | 2852234 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 6. | 2852627 | [1] | FLANGE NUT,Hex, M12 x 1.75 | TORM12 x 1.75 Superseded by part number: 17044921 |
| 7. | 2852925 | [1] | SCREW,Hex, M12 x 1.75 x 130mm | TORM12 x 1.75 x 130mm Superseded by part number: 16599724 |
