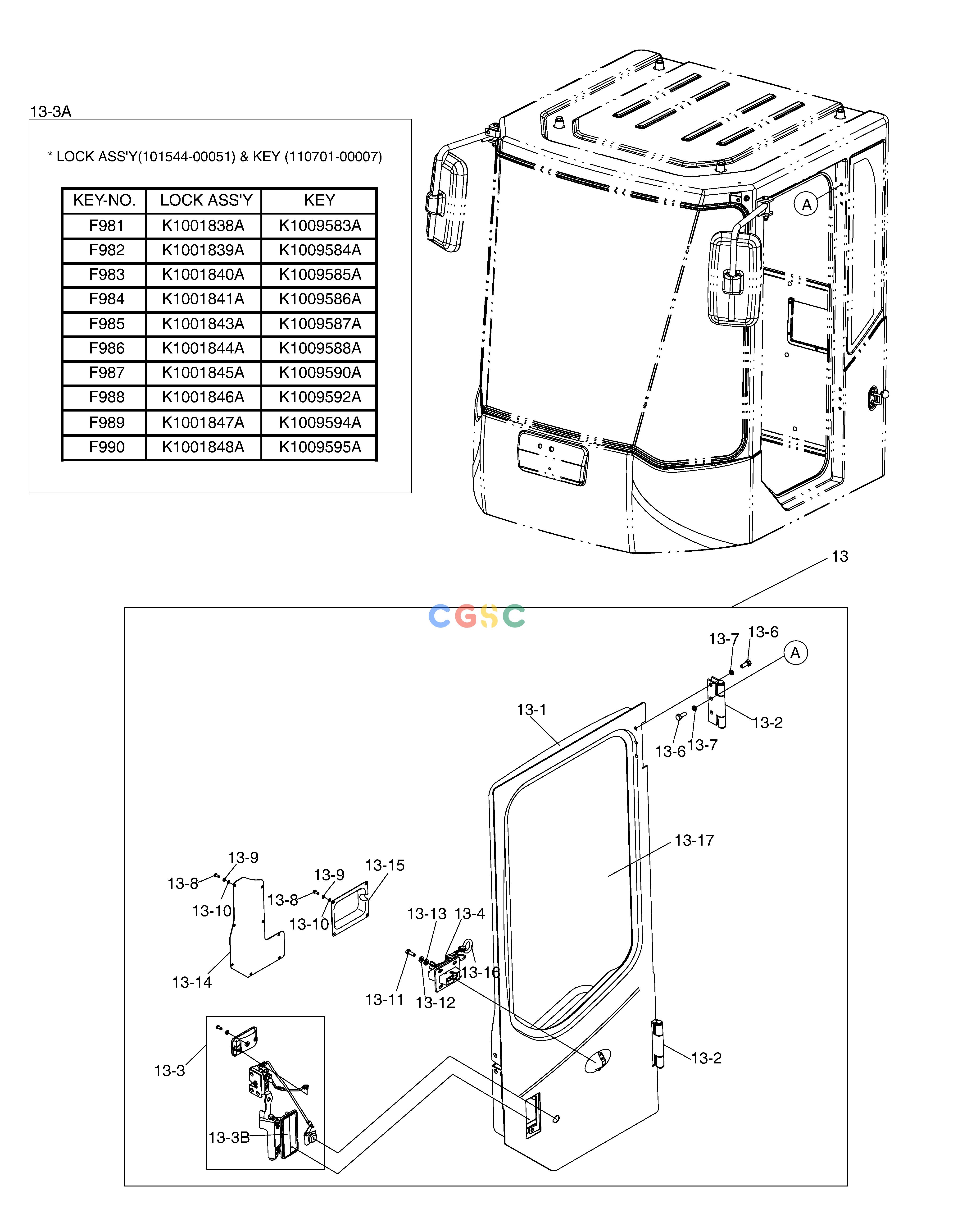

斗山零件查询CABIN(3) - DOOR ASS'Y(L.H);TINED SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-01032C
|
[1] |
CABIN ASSY
|
|
| -. |
220101-01032B
|
[1] |
CABIN ASSY
|
220101-01032C
|
| 13. |
110982-00716
|
[1] |
DOOR ASSY;CABIN
|
|
| 13-1. |
110982-00010E
|
[1] |
. DOOR,SIDE;CABIN
|
|
| 13-10. |
S5000213
|
[13] |
. WASHER
|
|
| 13-11. |
S0508856
|
[4] |
. SCREW,MACHINE；M8X20
|
|
| 13-12. |
S5102503
|
[4] |
. WASHER
|
|
| 13-13. |
S5000513
|
[4] |
. WASHER;PLAIN
|
|
| 13-14. |
250201-00039
|
[1] |
. PLATE;CABIN
|
|
| 13-15. |
K1005940
|
[1] |
. PLATE
|
|
| 13-16. |
310301-00025
|
[1] |
. ROPE,WIRE
|
|
| 13-17. |
500119-00226
|
[1] |
. GLASS,TINTED
|
|
| 13-2. |
110927-00005
|
[2] |
. HINGE,DOOR;CABIN
|
|
| 13-3. |
101544-00051
|
[1] |
. LOCKER
|
|
| 13-3A. |
110701-00007
|
[1] |
.. CYLINDER,DOOR KEY
|
|
| 13-3B. |
110925-00034
|
[1] |
. HANDLE;OUTER
|
|
| 13-4. |
2125-9055
|
[1] |
. LOCK;BACK
|
|
| 13-6. |
S0512063
|
[6] |
WASHER
|
|
| 13-7. |
S5102603
|
[6] |
. WASHER
|
|
| 13-8. |
S3450828
|
[13] |
. SCREW
|
|
| 13-9. |
S5102203
|
[13] |
WASHER
|
|
