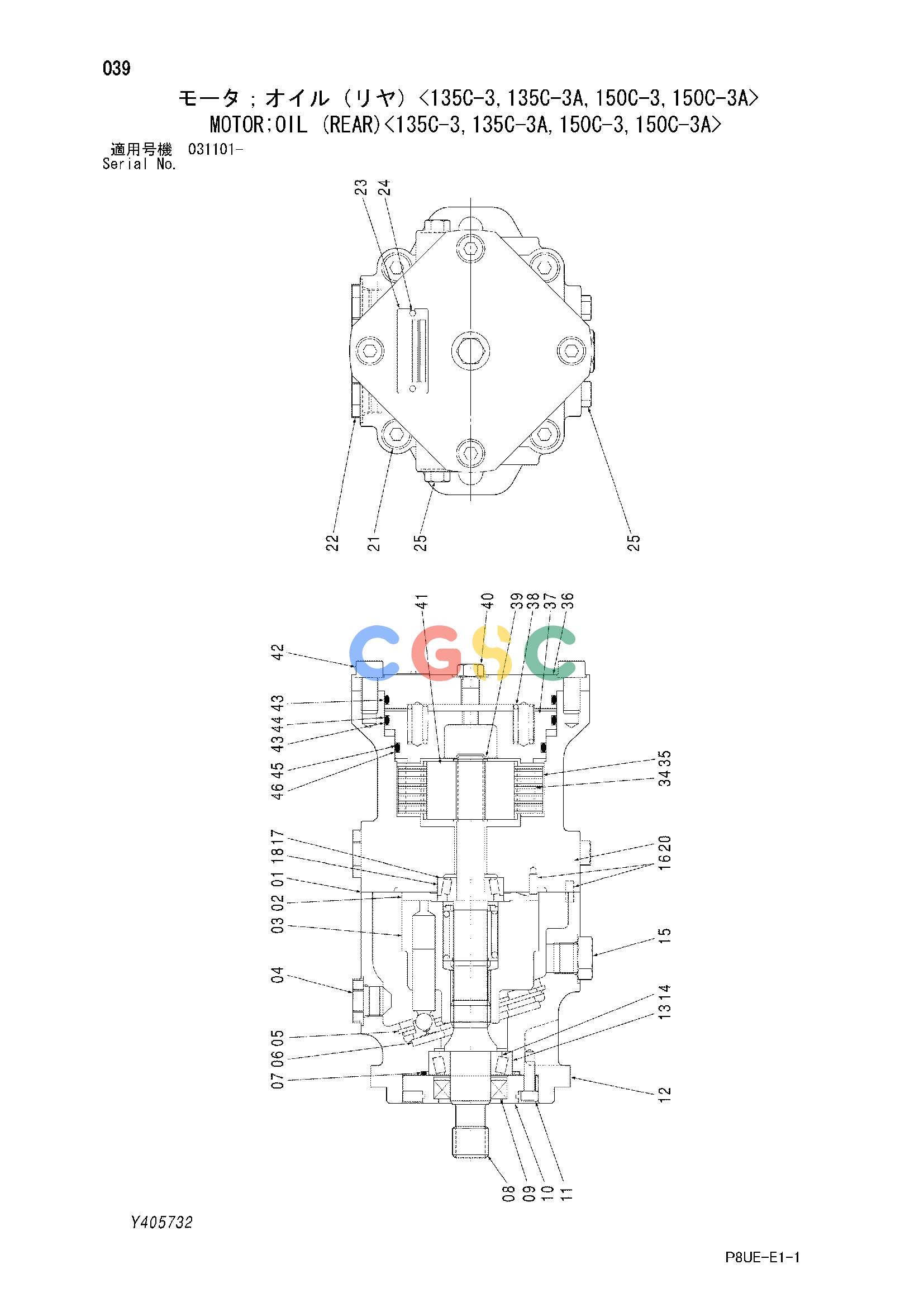

日立零件查询（CC150C-3A）MOTOR;OIL (REAR)<135C-3,135C-3A,150C-3,150C-3A> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
904 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y405732 | [1] | MOTOR;OIL | |
| 01. | Y412200 | [1] | GASKET | |
| 02. | Y412201 | [1] | PLATE;VALVE | |
| 03. | Y412202 | [1] | BLOCK;CYL. | |
| 04. | Y412203 | [1] | PLUG | |
| 05. | Y412204 | [1] | RING;RETAINING | |
| 06. | Y412205 | [1] | PLATE;THRUST | |
| 07. | A810055 | [1] | O-RING | |
| 08. | Y412206 | [1] | SHAFT | |
| 09. | Y412207 | [1] | SEAL | |
| 10. | Y412208 | [1] | COVER | |
| 11. | Y412209 | [4] | BOLT;SOCKET | |
| 12. | Y412210 | [1] | HOUSING | |
| 13. | Y412211 | [1] | BRG. | |
| 14. | Y412212 | [1] | BRG. | |
| 15. | Y412213 | [1] | PLUG | |
| 16. | Y412214 | [3] | PIN | |
| 17. | Y412215 | [1] | SHIM | |
| 18. | Y412216 | [1] | BRG. | |
| 20. | Y412217 | [1] | CAP | |
| 21. | Y412218 | [4] | BOLT;SOCKET | |
| 22. | 4260820 | [2] | PLUG | |
| 23. | +++++++ | [1] | NAME-PLATE | |
| 24. | 4260808 | [2] | SCREW;DRIVE | |
| 25. | 4260813 | [4] | PLUG | |
| 34. | Y412219 | [10] | PLATE;FRICTION | |
| 35. | Y412220 | [11] | PLATE | |
| 36. | Y412221 | [1] | COVER | |
| 37. | Y412222 | [1] | PISTON | |
| 38. | Y412223 | [10] | SPRING | |
| 39. | 991339 | [2] | RING;RETAINING | |
| 40. | Y412224 | [1] | PLUG | |
| 41. | Y412225 | [1] | HUB | |
| 42. | J781020 | [4] | BOLT;SOCKET | |
| 43. | Y412226 | [2] | O-RING | |
| 44. | Y412227 | [1] | RING;BACK-UP | |
| 45. | Y412228 | [1] | O-RING | |
| 46. | Y412229 | [1] | RING;BACK-UP | |
