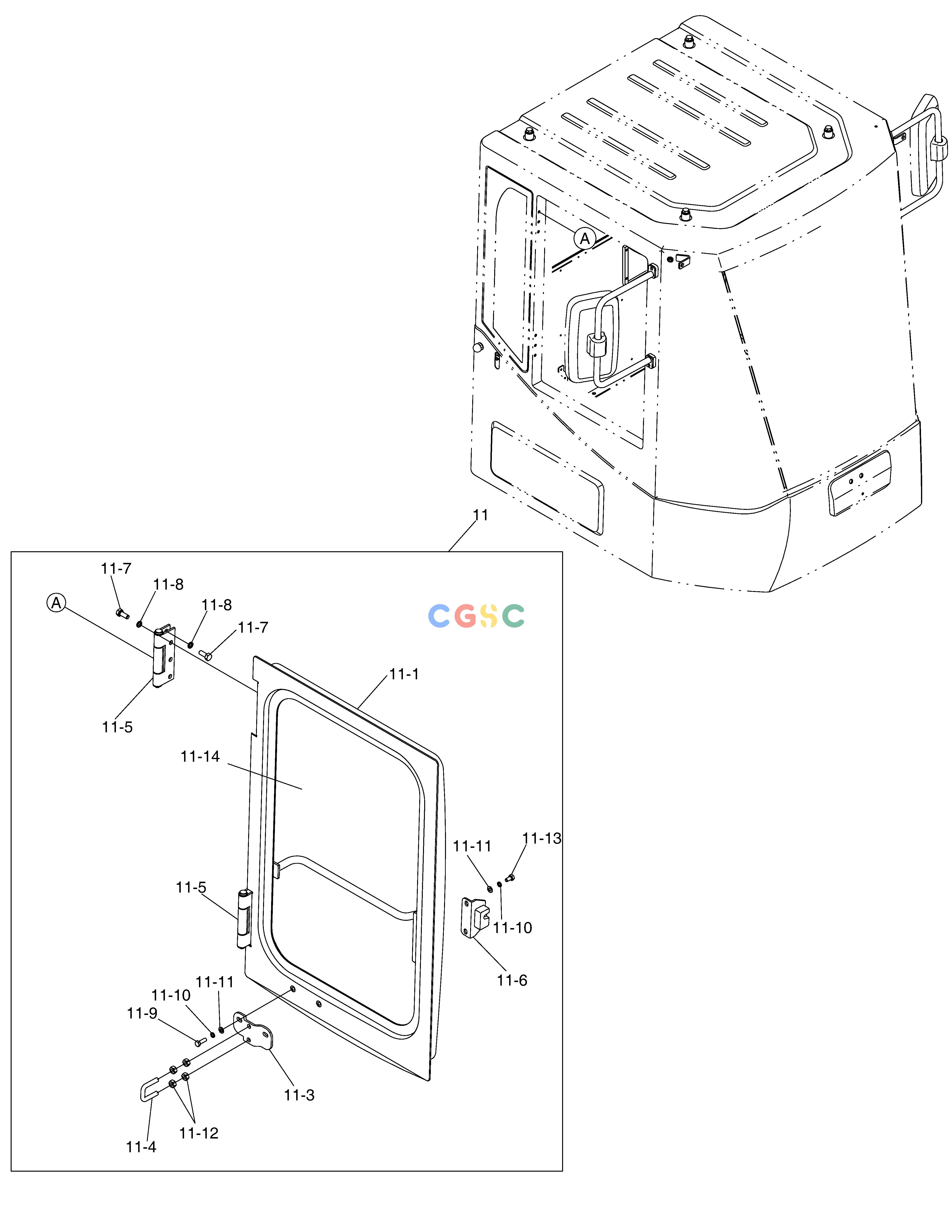

斗山零件查询CABIN(4) - DOOR ASS'Y(R.H);ROPS&TINTED GLASS SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
285 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-01371
|
[1] |
CABIN ASSY;5T
|
|
| 11. |
110982-00717
|
[1] |
DOOR ASSY;CABIN
|
|
| 11-1. |
110982-00009
|
[1] |
. DOOR,SIDE
|
|
| 11-10. |
S5102503
|
[4] |
. WASHER
|
|
| 11-11. |
S5010513
|
[4] |
WASHER
|
|
| 11-12. |
S4012633
|
[4] |
NUT
|
|
| 11-13. |
S0508656
|
[2] |
. BOLT；M8X16
|
|
| 11-14. |
500119-00225
|
[1] |
. GLASS,TINTED
|
|
| 11-3. |
K1042237
|
[1] |
. BRACKET
|
|
| 11-4. |
120119-00005
|
[1] |
. BOLT,U;CABIN
|
|
| 11-5. |
110927-00005
|
[2] |
. HINGE,DOOR;CABIN
|
|
| 11-6. |
K1041156
|
[1] |
. LOCK;WINDOW
|
|
| 11-7. |
S0512063
|
[6] |
WASHER
|
|
| 11-8. |
S5102603
|
[6] |
. WASHER
|
|
| 11-9. |
S0509053
|
[2] |
. BOLT
|
|
