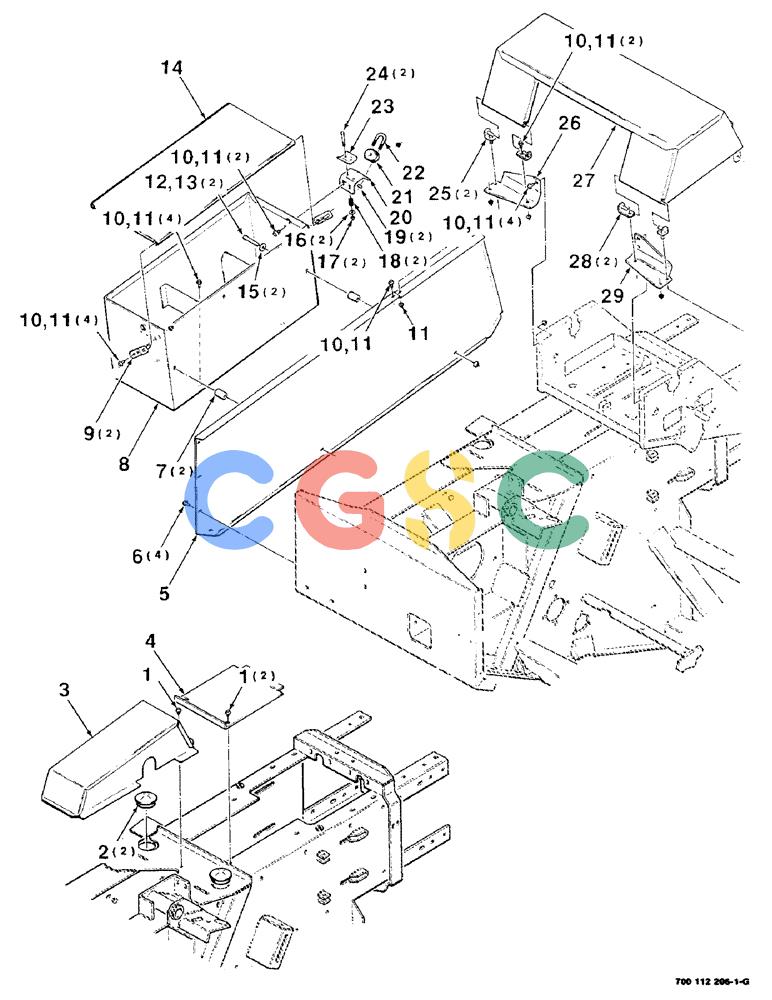

凯斯零件查询(8520) - CASE IH RECTANGULAR BALER (1/88-12/99) (7-10) - SHIELDS AND TWINE BOX ASSEMBLY - RIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7771322
|
[3] |
BOLT,Hex Serr, 5/16" - 18 x 1/2"
|
CAS
5/16-18 X 1/2 HFSS Superseded by part number: 256873
|
| 2. |
700703259
|
[2] |
PLUG
|
CAS
- hole
|
| 3. |
700112249
|
[1] |
SHIELD
|
CAS
SHEILD WA - top
|
| 4. |
700112277
|
[1] |
COVER
|
CAS
|
| 5. |
700112242
|
[1] |
SHIELD
|
HFI
- right
|
| 6. |
703132
|
[4] |
SERRATED SCREW
|
CAS
5/16-18 X 3/4 HFSS Superseded by part number: 145913
|
| 7. |
6605315
|
[2] |
HUB
|
CAS
SPACER
|
| 8. |
700112506
|
[1] |
BOX
|
HFI
TWINE BOX - right
|
| 9. |
700108543
|
[2] |
SUPPORT
|
CAS
WA
|
| 10. |
7883325
|
[17] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 X 3/4 HWHMS Superseded by part number: 121-115
|
| 11. |
704239
|
[18] |
FRONT AXLE
|
NNA
5/16-18 HFSLN Superseded by part number: 231-5145, 231-5145, NLS
|
| 12. |
701888
|
[2] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
|
CAS
3/8-16 X 2-1/4 C Superseded by part number: 87791064, 87791064, 87936
|
| 13. |
704247
|
[2] |
NUT
|
CAS
3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
| 14. |
700112241
|
[1] |
LID
|
HFI
- box, twine
|
| 15. |
705533
|
[2] |
WASHER
|
NNA
3/8 HARDENED PLAIN WASHER Superseded by part number: 496-11041, 496-11041, 80702
|
| 16. |
705707
|
[2] |
WASHER,1/4", SAE
|
CAS
1/4 NARROW PLAIN WASHER Superseded by part number: 87361
|
| 17. |
704395
|
[2] |
NUT
|
CAS
1/4-20 LHSN Superseded by part number: 86625061
|
| 18. |
58925
|
[2] |
SPRING
|
CAS
- tension
|
| 19. |
230-4215
|
[2] |
NUT,5/16"-18, GA
|
CAS
5/16-18 HCLN
|
| 20. |
700112260
|
[1] |
SUPPORT
|
HFI
- tension
|
| 21. |
700711131
|
[1] |
GUIDE
|
CAS
- twine Superseded by part number: 84298727
|
| 22. |
766543
|
[1] |
SCREW
|
L
Superseded by part number: 51200861
|
| 23. |
6549869
|
[1] |
SUPPORT
|
L
BRACKET - tension
|
| 24. |
7701964
|
[2] |
SCREW,Hex, 1/4" - 20 x 2 1/2", Gr 5
|
L
1/4-20 X 2-1/2 C Superseded by part number: 87845
|
| 25. |
700112258
|
[2] |
SUPPORT
|
CAS
WA
|
| 26. |
700112257
|
[1] |
SUPPORT
|
HFI
- pivot, right
|
| 27. |
700112244
|
[1] |
SHIELD
|
HFI
WA - top
|
| 28. |
700108535
|
[2] |
SUPPORT
|
CAS
WA
|
| 29. |
700112256
|
[1] |
SUPPORT
|
HFI
- pivot, left
|
