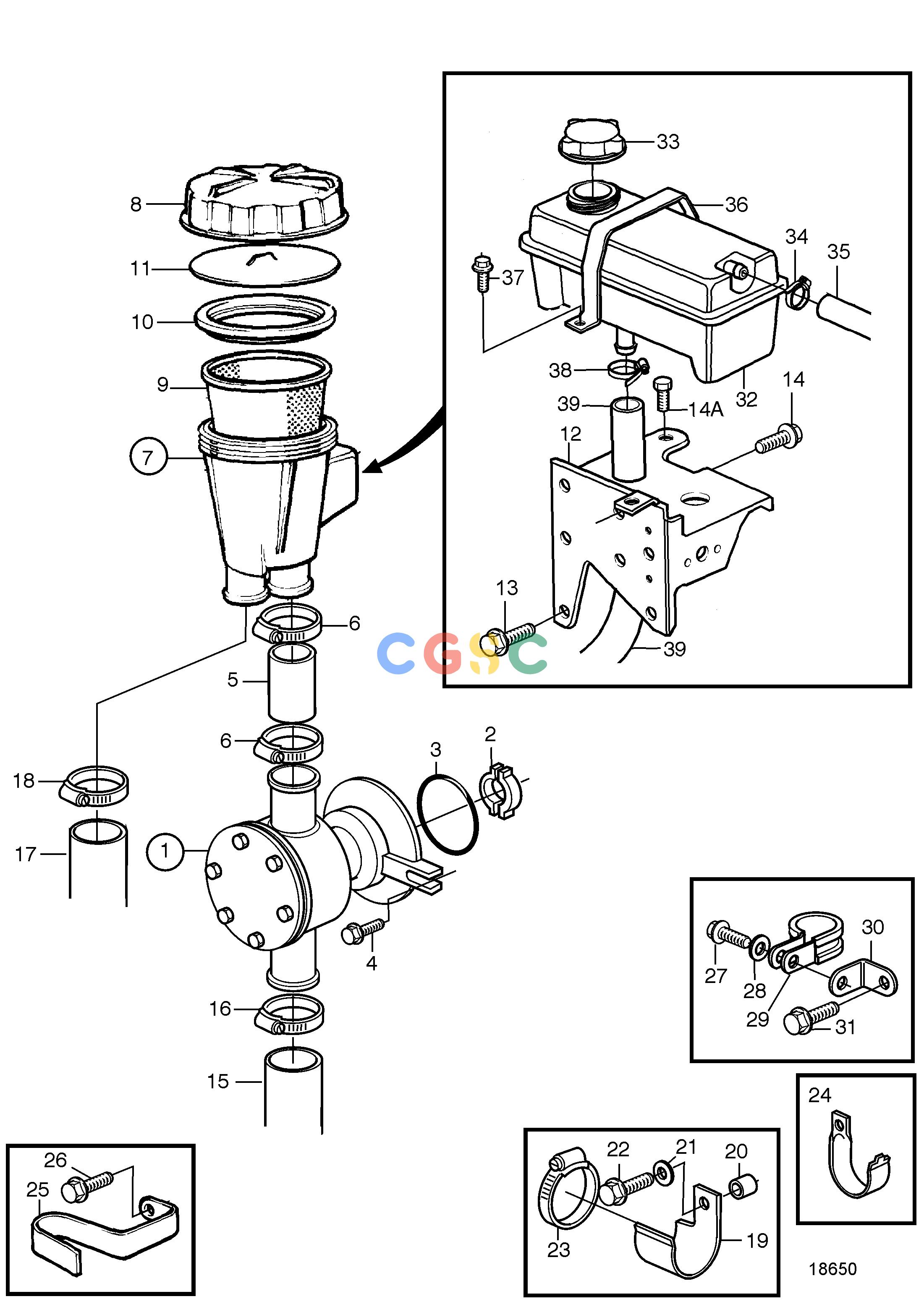

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ECooling SystemSea Water Pump, Sea Water Filter and Expansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581558
|
[1] |
Sea water pump
|
Repl by 3583115
|
| 1. |
|
|
|
|
| 1. |
3583115
|
[1] |
Sea water pump
|
|
| 2. |
858467
|
[1] |
Companion flange
|
|
| 3. |
968971
|
[1] |
O-ring
|
|
| 4. |
945444
|
[2] |
Flange screw
|
|
| 5. |
949315
|
[1] |
Rubber hose
|
L=60mm
|
| 6. |
994561
|
[2] |
Hose clamp
|
|
| 7. |
860631
|
[1] |
Sea water filter
|
|
| 8. |
842722
|
[1] |
Cover
|
|
| 9. |
860687
|
[1] |
Strainer
|
|
| 10. |
842724
|
[1] |
Seal
|
|
| 11. |
842982
|
[1] |
Pressure plate
|
|
| 12. |
3581478
|
[1] |
Bracket
|
|
| 13. |
946470
|
[1] |
Flange screw
|
L=35mm
|
| 13. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 14. |
944926
|
[4] |
Flange screw
|
|
| 14A. |
946471
|
[1] |
Flange screw
|
|
| 15. |
861737
|
[1] |
Hose
|
Intake-sea water pump., Std
|
| 15. |
1140664
|
[1] |
Exhaust hose
|
Intake-sea water pump., Alt
|
| 16. |
961669
|
[2] |
Hose clamp
|
|
| 17. |
861018
|
[1] |
Hose
|
Sea water filter-oil cooler.
|
| 18. |
994561
|
[1] |
Hose clamp
|
|
| 19. |
3580758
|
[1] |
Bracket
|
|
| 20. |
843075
|
[1] |
Spacer sleeve
|
|
| 21. |
955894
|
[1] |
Washer
|
|
| 22. |
945444
|
[1] |
Flange screw
|
|
| 23. |
961669
|
[1] |
Hose clamp
|
|
| 24. |
834974
|
[1] |
Bracket
|
|
| 25. |
861387
|
[1] |
Bracket
|
|
| 26. |
947760
|
[1] |
Flange screw
|
|
| 27. |
948746
|
[1] |
Flange screw
|
(968855)
|
| 28. |
955893
|
[1] |
Washer
|
|
| 29. |
952640
|
[1] |
Clamp
|
|
| 30. |
846780
|
[1] |
Bracket
|
|
| 31. |
965183
|
[1] |
Flange screw
|
|
| 32. |
861105
|
[1] |
Expansion tank
|
|
| 33. |
1674083
|
[1] |
Pressure cap
|
|
| 34. |
945652
|
[1] |
Hose clamp
|
|
| 35. |
942700
|
[1] |
Hose
|
Expansion tank-thermostat housing., L=440mm
|
| 36. |
3581463
|
[1] |
Clamp
|
|
| 37. |
946544
|
[1] |
Flange screw
|
|
| 38. |
994559
|
[1] |
Hose clamp
|
|
| 39. |
3581465
|
[1] |
Hose
|
Expansion tank- water pump.
|
