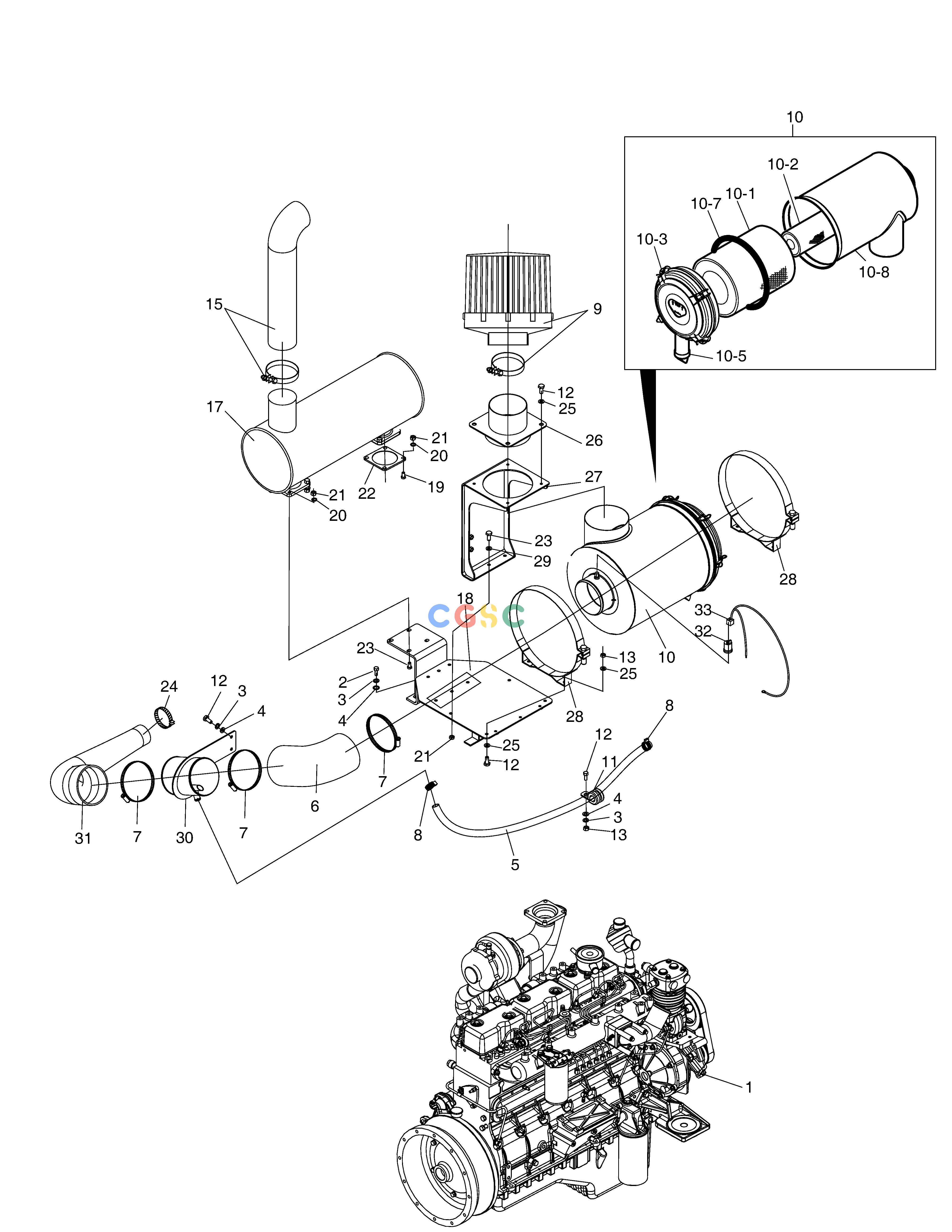

斗山零件查询ENGINE-ZF T/M(TURBO AIR PRE-DLS) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-01282A
|
[-] |
ENGINE ASSY
|
|
| -. |
150109-01282B
|
[-] |
ENGINE ASSY;TIER2 DE08TIS
|
|
| -. |
150109-01282C
|
[-] |
ENGINE ASSY;TIER2 DE08-PBL00
|
|
| -. |
150109-01282G
|
[-] |
ENGINE ASSY;SUB
|
|
| -. |
150109-01282H
|
[-] |
ENGINE ASSY;SUB
|
|
| 1. |
DE08-PBL00
|
[1] |
. ENGINE ASSY;DISD DL507 SAE2
|
|
| 10. |
400414-00501
|
[1] |
|
|
| 10-1. |
400504-00271
|
[1] |
ELEMENT,AIR CLEANER;OUTER
|
|
| 10-2. |
400504-00270
|
[1] |
ELEMENT,AIR CLEANER;INNER
|
|
| 10-3. |
110508-04478
|
[1] |
COVER ASSY,AIR CLEANER;DV180S-
|
|
| 10-5. |
410116-00278
|
[1] |
VALVE;DV180S-7 AIR CLEANER_VAC
|
|
| 10-7. |
204-00071
|
[1] |
RING,O
|
|
| 10-8. |
160601-01459
|
[1] |
BODY ASSY
|
|
| 11. |
124-00208D5
|
[1] |
CLIP
|
|
| 12. |
S0512253
|
[11] |
BOLT M10X1.5X30
|
|
| 13. |
S4012633
|
[5] |
NUT
|
|
| 15. |
420203-00451
|
[1] |
PIPE,EXHAUST;TURBO AIR PRE-CLEANER
|
420203-00451B
|
| 15. |
420203-00451B
|
[1] |
PIPE
|
|
| 17. |
240103-00645
|
[1] |
MUFFLER
|
240103-00645A
|
| 17. |
240103-00645A
|
[1] |
MUFFLER
|
240103-00645B
|
| 17. |
240103-00645B
|
[1] |
MUFFLER
|
|
| 18. |
110406-03722A
|
[1] |
|
|
| 19. |
S0760763
|
[4] |
BOLT
|
|
| 19. |
S0560663
|
[4] |
BOLT M12X1.75X45
|
|
| 19. |
S0760763
|
[4] |
BOLT
|
|
| 2. |
S0512053
|
[6] |
BOLT
|
|
| 20. |
S5010703
|
[8] |
WASHER;PLAIN
|
|
| 20. |
S5010703
|
[16] |
WASHER;PLAIN
|
|
| 21. |
120311-00162
|
[11] |
NUT,LOCK
|
|
| 21. |
120311-00289
|
[11] |
NUT,LOCK
|
|
| 21. |
120311-00289A
|
[11] |
NUT,LOCK;M12X1.25
|
|
| 22. |
400602-00715
|
[1] |
GASKET
|
|
| 23. |
S0760563
|
[7] |
BOLT
|
|
| 23. |
S0515463
|
[7] |
BOLT
|
|
| 23. |
S0760563
|
[7] |
BOLT
|
|
| 24. |
S8500092
|
[1] |
CLAMP;HOSE
|
|
| 25. |
DS0401063
|
[12] |
WASHER,PLAIN
|
|
| 26. |
420206-00093A
|
[1] |
PIPE
|
|
| 26. |
420206-00093B
|
[1] |
PIPE;AIR
|
|
| 27. |
110406-03724A
|
[1] |
|
|
| 28. |
110902-00288
|
[2] |
|
|
| 29. |
DS0401211
|
[3] |
WASHER,PIN
|
|
| 3. |
S5102603
|
[9] |
. WASHER
|
|
| 30. |
420206-00092A
|
[1] |
|
|
| 31. |
420101-01295A
|
[1] |
HOSE,AIR
|
|
| 31. |
420101-01295B
|
[1] |
HOSE,AIR
|
|
| 32. |
800217-00117
|
[1] |
INDICATOR,DUST
|
|
| 33. |
310207-04258
|
[1] |
HARNESS,ENGINE
|
|
| 4. |
S5010613
|
[9] |
WASHER
|
|
| 5. |
420108-01361A
|
[1] |
|
|
| 6. |
420101-01294A
|
[1] |
HOSE,AIR
|
|
| 6. |
420101-01294B
|
[1] |
HOSE,AIR
|
|
| 7. |
S8500168
|
[3] |
CLAMP;HOSE
|
|
| 8. |
S8450023
|
[2] |
CLAMP
|
|
| 9. |
K1043471
|
[1] |
PRE CLEANER
|
|
| 9. |
400415-00045
|
[1] |
CLEANER,PRE
|
|
