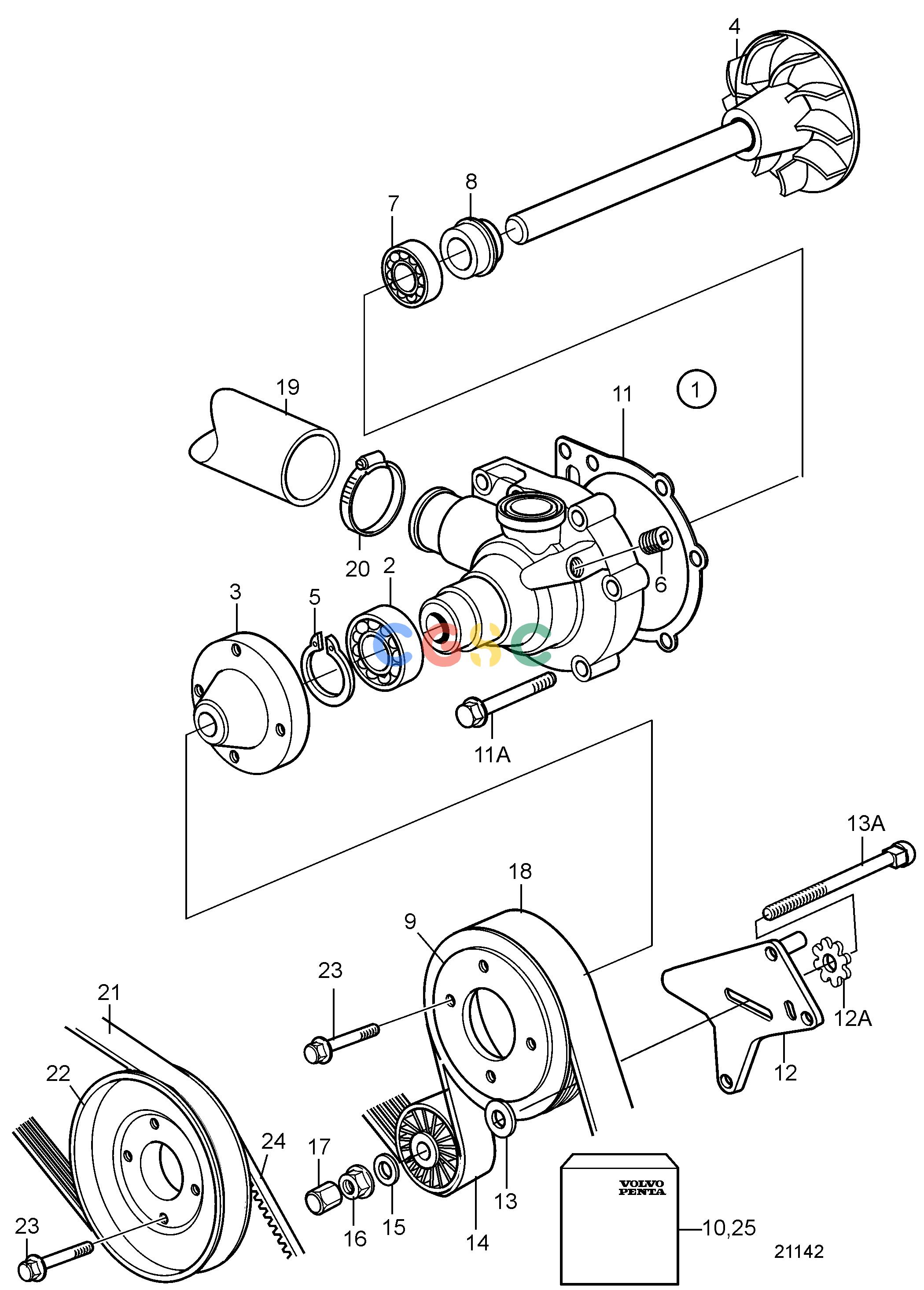

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ECooling SystemWater PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
634 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583096
|
[1] |
Water pump
|
Replaced by 1 pc 3809412, coolant pump, 1 pc 3588384, pulley and 4 pcs 947760, flange screw., Repl b
|
| 1. |
3809412
|
[1] |
Water pump
|
|
| 1. |
3803869
|
[1] |
Coolant pump
|
|
| 2. |
184861
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 3. |
3588402
|
[1] |
Hub
|
|
| 4. |
3583087
|
[1] |
Impeller, with shaft
|
Included in overhaul kit.
|
| 5. |
914462
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 6. |
479977
|
[1] |
Plug
|
|
| 7. |
1660609
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 8. |
1676432
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 9. |
3580971
|
[1] |
Pulley
|
For multi-V-belt.
|
| 10. |
877385
|
[1] |
Repair kit
|
|
| 11. |
859027
|
[1] |
Gasket
|
Included in overhaul kit.
|
| 11A. |
947760
|
[6] |
Flange screw
|
|
| 12. |
3582167
|
[1] |
Bracket
|
Included in service kit.
|
| 12A. |
3582168
|
[1] |
Gear
|
Included in service kit.
|
| 13. |
3582189
|
[1] |
Spacer
|
Included in service kit.
|
| 13A. |
982331
|
[1] |
Square neck screw
|
Included in service kit.
|
| 14. |
3582324
|
[1] |
Tension pulley
|
Included in service kit.
|
| 15. |
976945
|
[1] |
Washer
|
Included in service kit.
|
| 16. |
971095
|
[1] |
Flange nut
|
Included in service kit.
|
| 17. |
3582677
|
[1] |
Nut
|
Included in service kit.
|
| 18. |
3582424
|
[1] |
Drive belt
|
|
| 19. |
3581099
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump.
|
| 20. |
943478
|
[1] |
Hose clamp
|
|
| 21. |
860388
|
[1] |
Drive belt
|
|
| 22. |
860454
|
[1] |
Pulley
|
|
| 23. |
947760
|
[4] |
Flange screw
|
|
| 24. |
977542
|
[1] |
V-belt
|
|
| 25. |
877180
|
[1] |
Service kit
|
|
