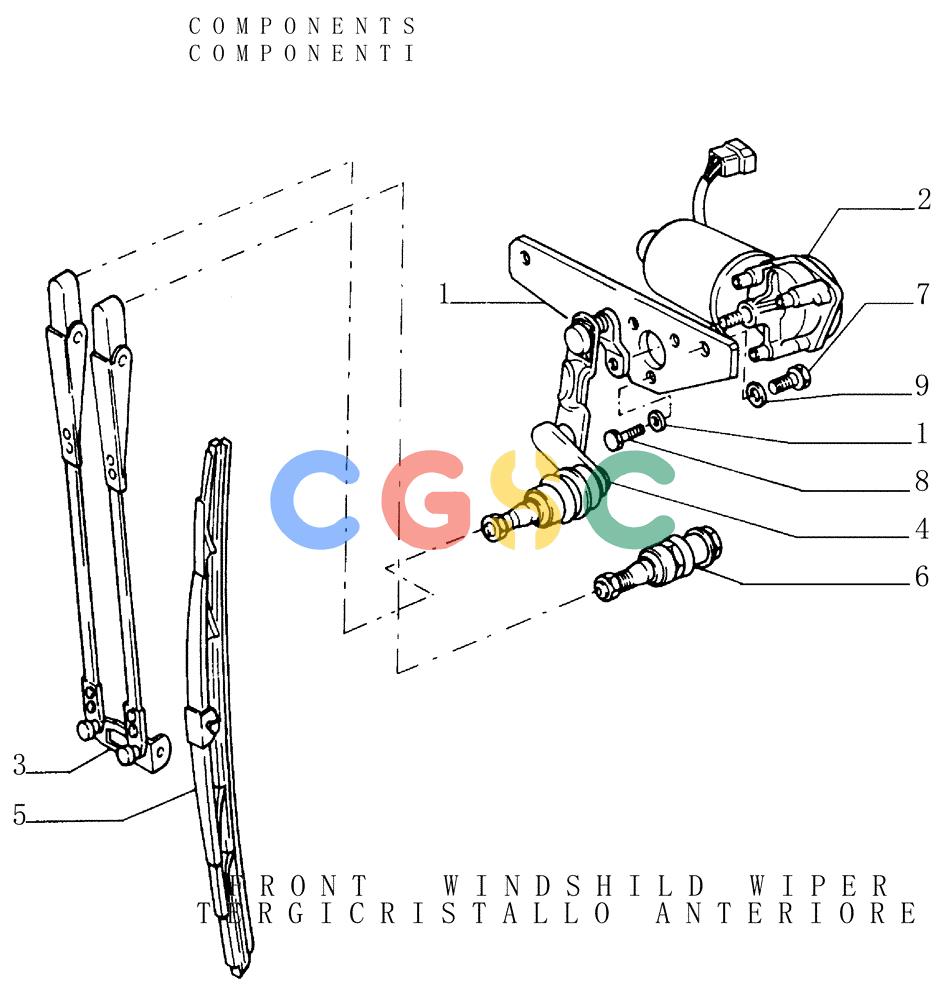

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (5.652[14]) - ROPS CAB - WINDSHIELD WIPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 70741511 | [1] | BRACKET | LEC |
| 2. | 70741507 | [1] | SMALL ELECTRIC MOTOR | LEC24V Superseded by part number: 70742332 |
| 3. | 79094632 | [1] | ARM | LEC |
| 4. | 70741509 | [1] | CONNECTING LINK | LEC |
| 5. | 79073503 | [1] | COMMUTATOR BRUSH | LEC |
| 6. | 70741510 | [1] | PIN | LEC |
| 7. | 16043221 | [2] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 8. | 10902231 | [3] | SCREW,Hex, M6 x 16mm, Cl 10.9 | LEC Superseded by part number: 86639037 |
| 9. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 10. | 14496431 | [3] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
