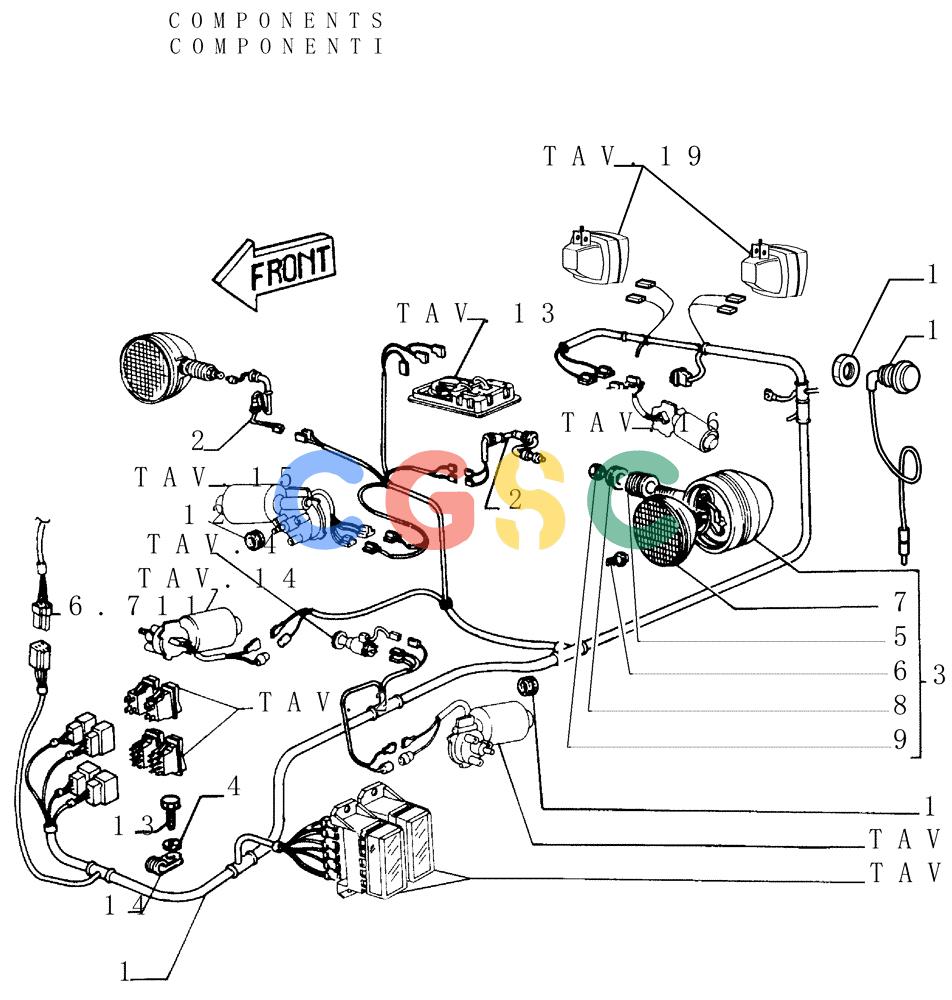

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (5.652[17]) - ROPS CAB - ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79105227 | [1] | ELECTRIC CABLE | LEC |
| 2. | 79087249 | [2] | ELECTRIC CABLE | LEC |
| 3. | 79102125 | [1] | HEADLAMP | LEC- RIGHT ASSY |
| 3. | 79092952 | [1] | HEADLAMP | TOR- LEFT ASSY |
| 4. | 14496531 | [22] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 5. | 79109449 | [1] | SPACER | LEC |
| 6. | 76069460 | [1] | BULB | NH24V Superseded by part number: 79069460 |
| 7. | 79107914 | [1] | LENS | LEC |
| 8. | 79109450 | [1] | WASHER | LEC |
| 9. | 79109451 | [1] | NUT | LEC Superseded by part number: 79073825 |
| 10. | 79089196 | [1] | ELECTRIC CABLE | LEC- AERIAL Superseded by part number: 71480988 |
| 11. | 10727720 | [1] | NUT,Thin, M20 x 1.5, Cl 05, LH | LEC |
| 12. | 10403180 | [2] | INSULATING RING | MKT22X1,5 |
| 13. | 16043021 | [22] | SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd | LEC Superseded by part number: 16043024 |
| 14. | 10450790 | [1] | RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type | LEC22X9 Superseded by part number: 10450990 |
| 14. | 10450490 | [21] | CLAMP,16mm, Coat, 9mm Bolt Hole, P Type | LEC9mm hole dia. Superseded by part number: |
