日立零件查询（CC150C-3A）WATER FLANGE AND THERMOSTAT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
552 次

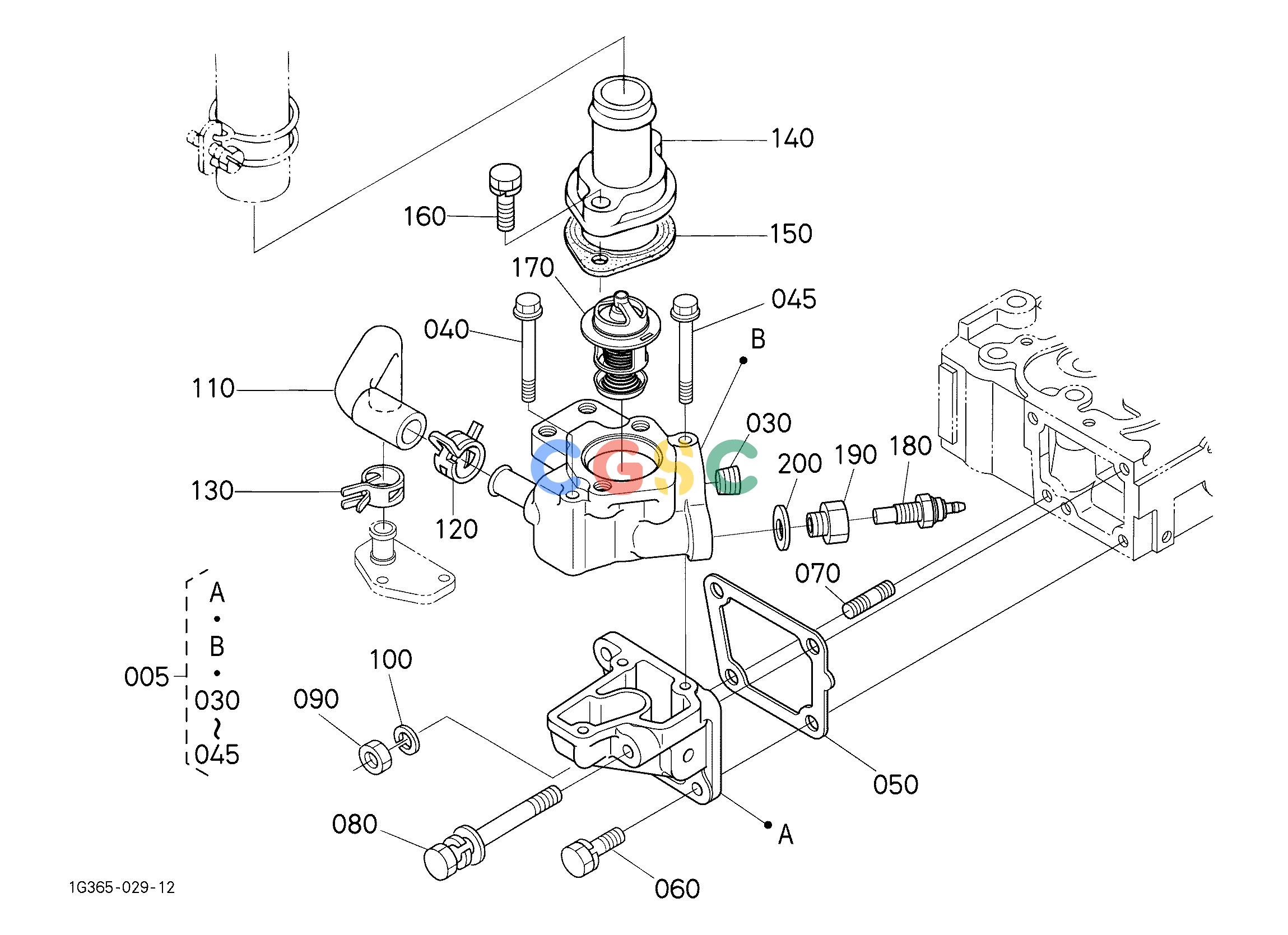

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 005. | KBT1G38872700 | [1] | COMP FLANGE,WATER | |
| 010. | ---- | | BLANK | |
| 020. | ---- | | BLANK | |
| 030. | KBT1A02196020 | [1] | PLUG | |
| 040. | KBT0175450660 | [2] | BOLT,FLANGE | |
| 045. | KBT0175450665 | [1] | BOLT,FLANGE | |
| 050. | KBT1A02172920 | [1] | GASKET,WATER FLANGE | |
| 060. | KBT0112350820 | [2] | BOLT | |
| 070. | KBT1522191530 | [1] | STUD | |
| 080. | KBT1A02191020 | [1] | BOLT | |
| 090. | KBT0215650080 | [1] | NUT | |
| 100. | KBT0451260080 | [1] | WASHER,SPRING | |
| 110. | KBT1A02173340 | [1] | PIPE,WATER RETURN | |
| 120. | KBT1A02111720 | [1] | CLAMP,HOSE | |
| 130. | KBT0931888180 | [1] | CLAMP,HOSE | |
| 140. | KBT1532173260 | [1] | COVER,THERMOSTAT | |
| 150. | KBT1622173270 | [1] | GASKET,THERMOSTAT | |
| 160. | KBT0112350835 | [2] | BOLT | |
| 170. | KBT1A02173012 | [1] | ASSY THERMOSTAT | |
| 180. | KBT1K41183040 | [1] | SENDING UNIT,THERMO | |
| 190. | KBT1622272840 | [1] | ADAPTER | |
| 200. | KBT0471701700 | [1] | WASHER,WITH RUBBER | |
