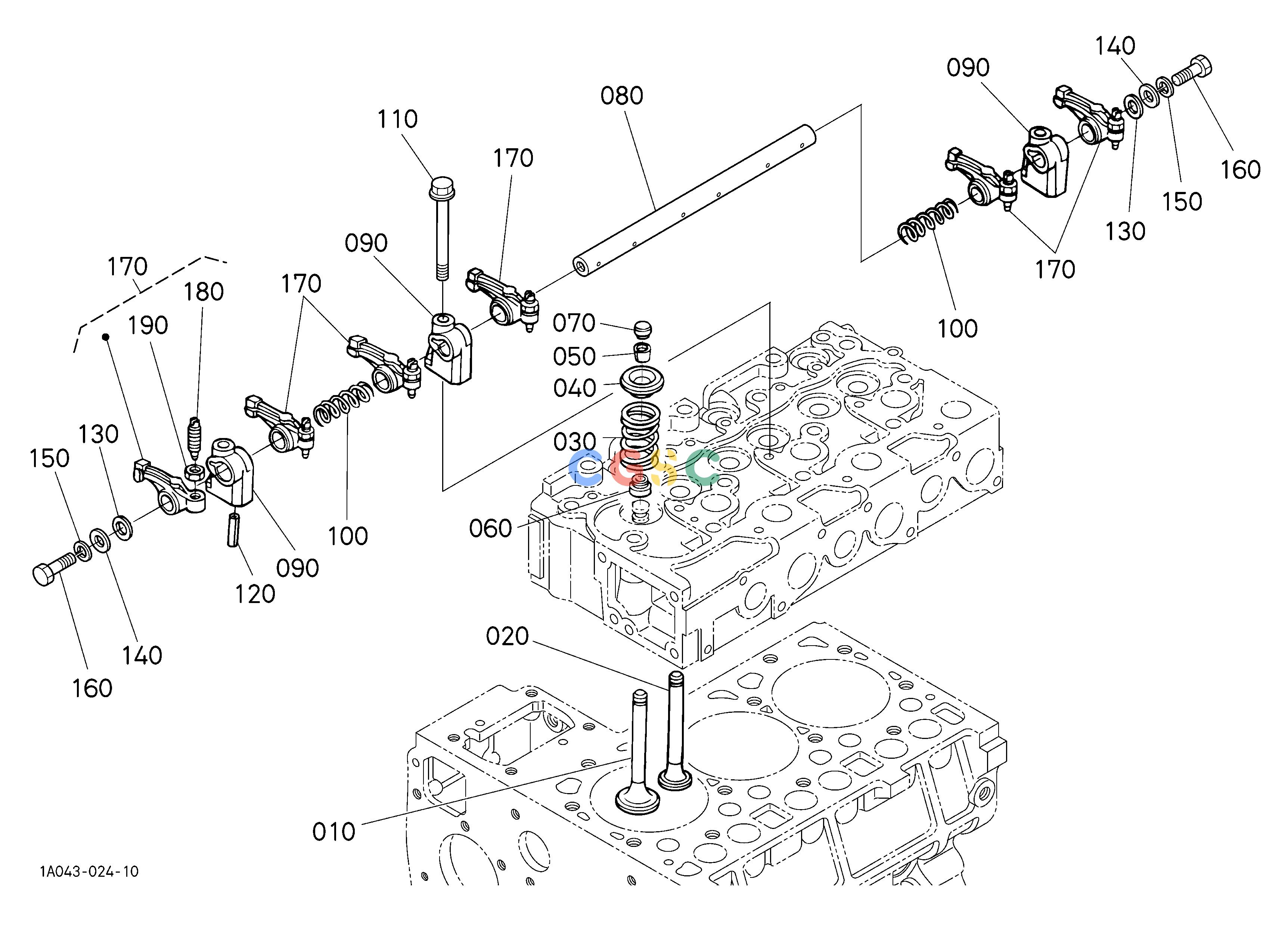

日立零件查询（CC150C-3A）VALVE AND ROCKER ARM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | KBT1G89613110 | [3] | VALVE,INLET | |
| 020. | KBT1G89613120 | [3] | VALVE,EXHAUST | |
| 030. | KBT1522113240 | [6] | SPRING,VALVE | |
| 040. | KBT1522113330 | [6] | RETAINER,VALVE SP. | |
| 050. | KBT1522113980 | [6] | COLLET,VALVE SPRING | SET |
| 060. | KBT1522113153 | [6] | SEAL,VALVE STEM | |
| 070. | KBT1522113280 | [6] | CAP,VALVE | |
| 080. | KBT1A02114260 | [1] | SHAFT,ROCKER ARM | |
| 090. | KBT1522114353 | [3] | BRACKET,ROCKER ARM | |
| 100. | KBT1522114310 | [2] | SPRING,ROCKER ARM | |
| 110. | KBT0175450855 | [3] | BOLT,FLANGE | |
| 120. | KBT0541100528 | [1] | PIN,SPRING | |
| 130. | KBT1522114430 | [2] | WASHER,R-ARM.SHAFT | |
| 140. | KBT0401360080 | [2] | WASHER,PLAIN | |
| 150. | KBT0451260080 | [2] | WASHER,SPRING | |
| 160. | KBT0115350812 | [2] | BOLT | |
| 170. | KBT1562114030 | [6] | ASSY ROCKER ARM | |
| 180. | KBT1552114230 | [6] | SCREW,ADJUSTING | |
| 190. | KBT1502114240 | [6] | NUT | |
