沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EElectrical SystemElectrical System: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
632 次

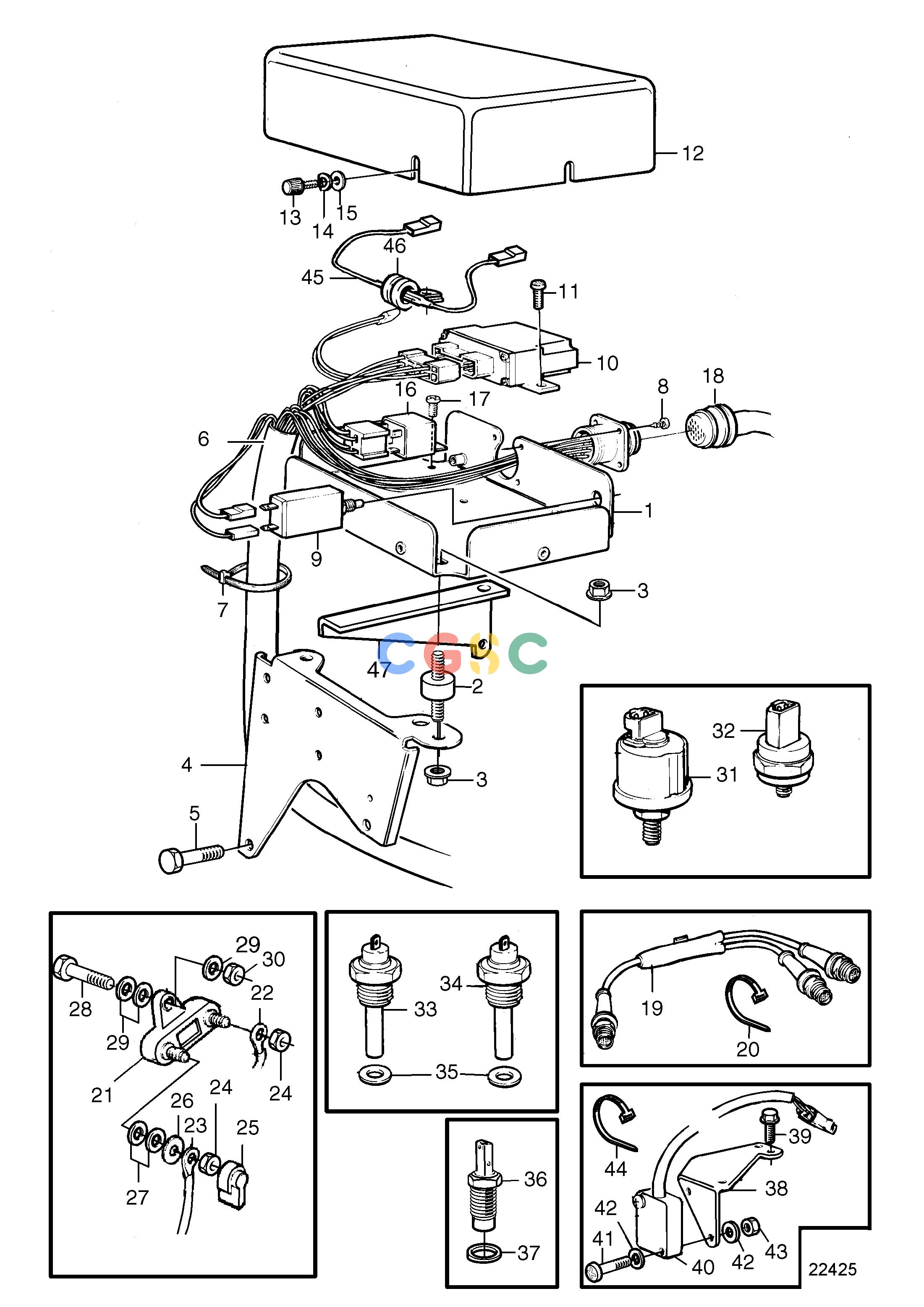

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581402
|
[1] |
Bracket
|
|
| 2. |
1348141
|
[3] |
Absorber
|
|
| 3. |
945407
|
[6] |
Flange nut
|
|
| 4. |
3581530
|
[1] |
Bracket
|
|
| 5. |
947760
|
[1] |
Flange screw
|
L=40mm
|
| 5. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 6. |
873742
|
[1] |
Wiring harness
|
|
| 7. |
948211
|
[1] |
Cable tie
|
|
| 8. |
955119
|
[4] |
Cross recessed screw
|
|
| 9. |
966689
|
[1] |
Fuse
|
|
| 10. |
881797
|
[1] |
Rotation speed relay, rpm
|
(872616)
|
| 11. |
968476
|
[2] |
Flange screw
|
|
| 12. |
860779
|
[1] |
Cover
|
|
| 13. |
846736
|
[3] |
Lock screw
|
|
| 14. |
941904
|
[3] |
Spring washer
|
|
| 15. |
960137
|
[3] |
Washer
|
|
| 16. |
873740
|
[1] |
Relay
|
12V 40A
|
| 17. |
968476
|
[1] |
Flange screw
|
|
| 18. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 18. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 18. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 18. |
873838
|
[1] |
Extension cable
|
L=9.0m
|
| 18. |
873839
|
[1] |
Extension cable
|
L=11,0m
|
| 19. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 20. |
948211
|
[3] |
Cable tie
|
|
| 23. |
|
|
|
See group 44
|
| 31. |
866835
|
[1] |
Sensor, oil-engine
|
0-10BAR
|
| 31. |
866836
|
[1] |
Sensor, oil-engine
|
For double steering positions., Alt, 0-10bar
|
| 32. |
863169
|
[1] |
Pressure monitor, oil-pressure
|
0,7bar
|
| 33. |
873066
|
[1] |
Thermo monitor, coolant temp.
|
97°C
|
| 34. |
827151
|
[1] |
Temperature sensor, coolant temp.
|
40-120°C
|
| 34. |
840074
|
[1] |
Temperature sensor, coolant temp.
|
For double steering positions., Alt, 120°C
|
| 35. |
957181
|
[2] |
Gasket
|
|
| 36. |
862251
|
[1] |
Tachometer sensor
|
For revolution relay.
|
| 37. |
957181
|
[1] |
Gasket
|
|
| 38. |
860970
|
[1] |
Bracket
|
|
| 39. |
946544
|
[2] |
Flange screw
|
|
| 40. |
874498
|
[1] |
Position sensor, rpm
|
(872597)
|
| 41. |
956050
|
[2] |
Cross recessed screw
|
|
| 42. |
955890
|
[4] |
Washer
|
|
| 43. |
966650
|
[2] |
Lock nut
|
|
| 44. |
948211
|
[1] |
Cable tie
|
|
| 45. |
873717
|
[1] |
Resistor
|
Later prod
|
| 46. |
952627
|
[1] |
Clamp
|
|
| 47. |
3581444
|
[1] |
Bracket
|
|
