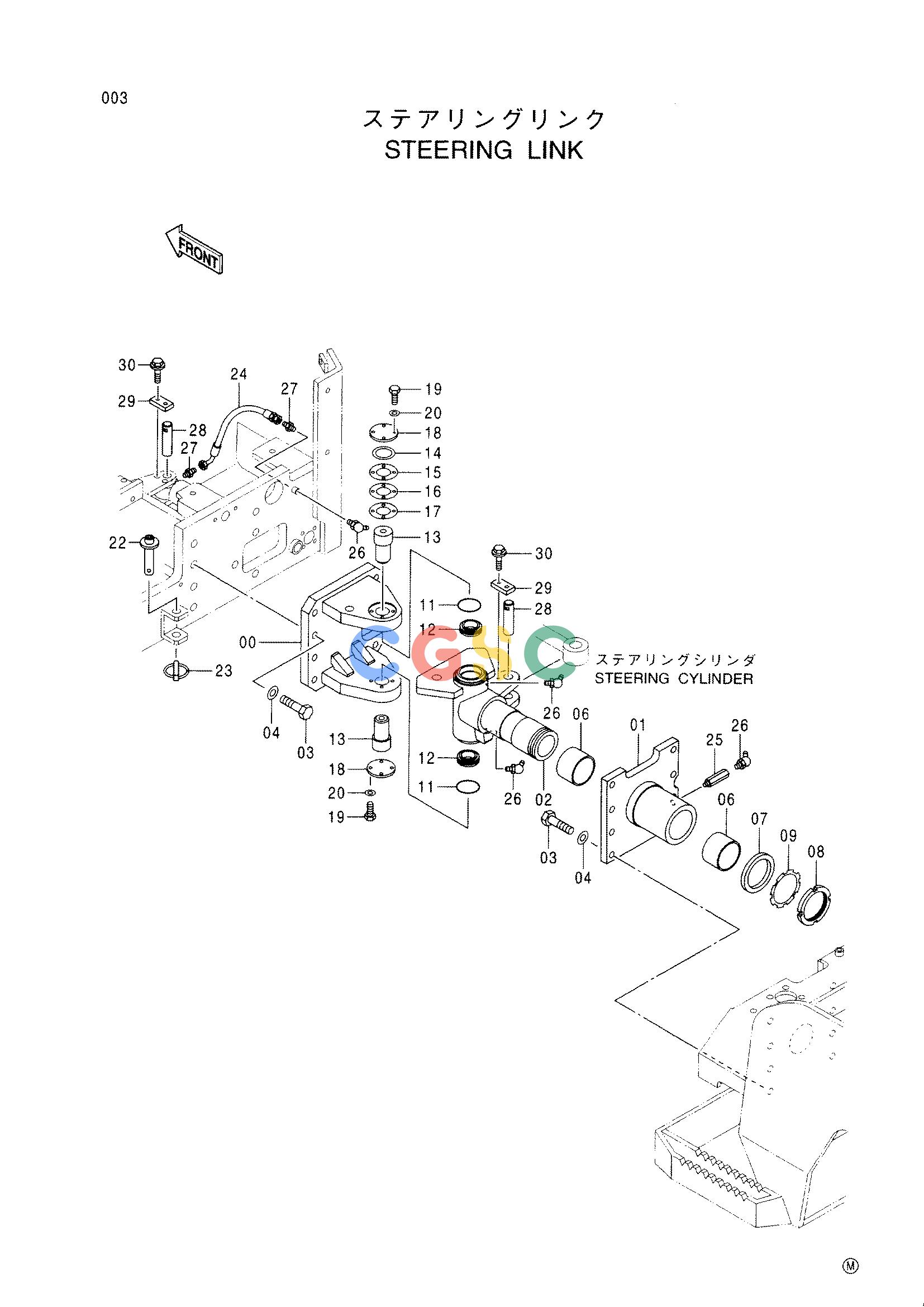

日立零件查询（CC150CW）STEERING LINK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425751 | [1] | BRACKET | |
| 01. | 425752 | [1] | BRACKET | |
| 02. | 425753 | [1] | BRACKET | |
| 03. | 947698 | [16] | BOLT | |
| 04. | 424196 | [16] | WASHER | |
| 06. | 439128 | [2] | BUSHING | |
| 07. | 433673 | [1] | WASHER | |
| 08. | 439129 | [1] | NUT;BRG. | |
| 09. | 439130 | [1] | WASHER;BRG. | |
| 11. | 925294 | [2] | O-RING | |
| 12. | 439127 | [2] | BRG. | |
| 13. | 434422 | [2] | PIN | |
| 14. | 425627 | [1] | SEAL | |
| 15. | 425628 | [3] | SHIM 0.1 | |
| 16. | 425629 | [2] | SHIM 0.3 | |
| 17. | 425630 | [1] | SHIM 0.8 | |
| 18. | 425631 | [2] | COVER | |
| 19. | 500280 | [8] | BOLT | |
| 20. | 425551 | [8] | WASHER | |
| 22. | 425805 | [1] | PIN | |
| 23. | 425469 | [1] | PIN;RING | |
| 24. | 425495 | [1] | HOSE | |
| 25. | 424972 | [1] | REDUCER | |
| 26. | 310040 | [4] | FITTING;GREASE | |
| 27. | 424128 | [2] | ADAPTER;S | |
| 28. | 425637 | [2] | PIN | |
| 29. | 425638 | [2] | PLATE;LOCK | |
| 30. | 500028 | [4] | BOLT;SEMS | |
