纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.440[03]) - FRONT IMPLEMENT ALL HYDR.- TILT CYLINDER - OPTIONAL CODE 76035980 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
908 次

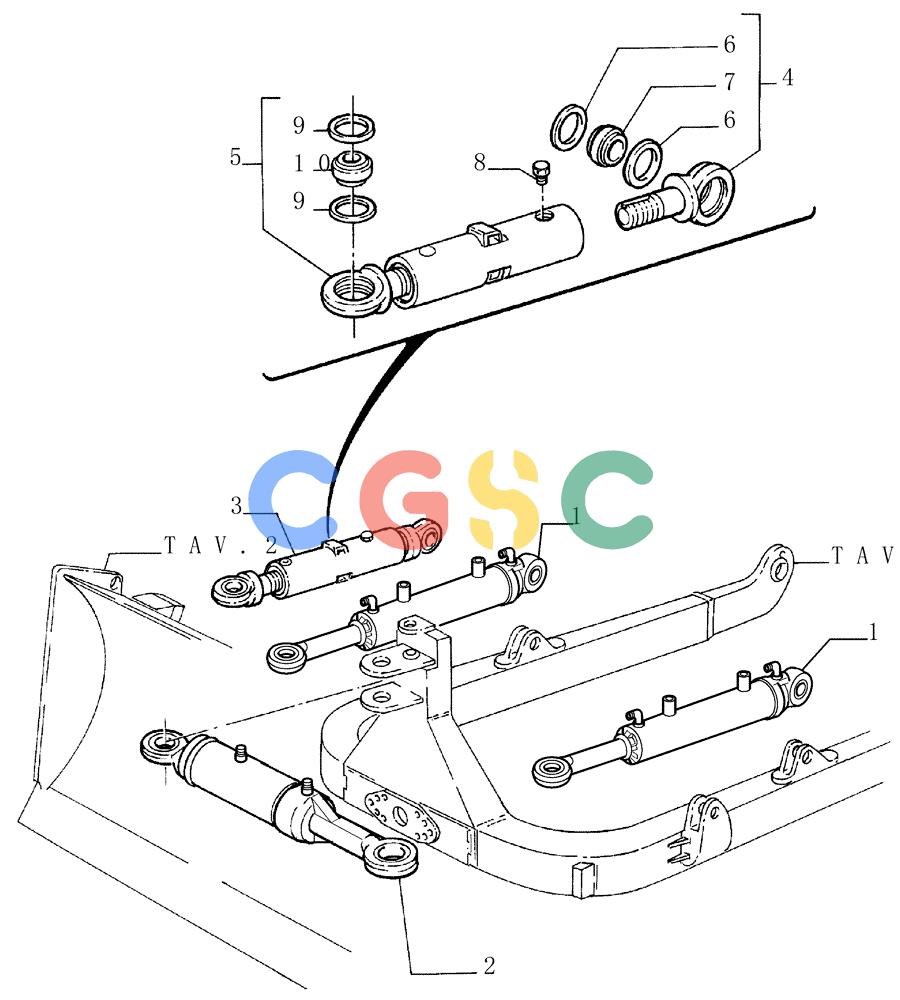

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76045930 | [2] | OPERATING CYLINDER | LEC |
| 2. | 76043921 | [1] | OPERATING CYLINDER,Double Acting, 63mm Rod, 135mm Stroke | LEC |
| 2. | 76043921R | [1] | REMAN-HYD CYLINDER | LECFD145 CRAWLER DOZER (N.A. VERSION) (10/98-) |
| 2. | 76043921C | [1] | CORE-HYD CYLINDER | LECReturn Number |
| 3. | 76033270 | [1] | TOP LINK | LEC- ASSY Superseded by part number: 76089280 |
| 4. | 76033266 | [1] | TRACK ROD END ASSY | LEC- ASSY |
| 5. | 76041140 | [1] | SLEEVE | LEC- ASSY Superseded by part number: 76089280 |
| 6. | 11061376 | [2] | SNAP RING,M68, Int | NH |
| 7. | 79037239 | [1] | ARTICULATION | LEC |
| 8. | 15853531 | [1] | BOLT,Hex, M12 x 1.25 x 14mm, Cl 10.9, Full Thd | TOR Superseded by part number: 15853521 |
