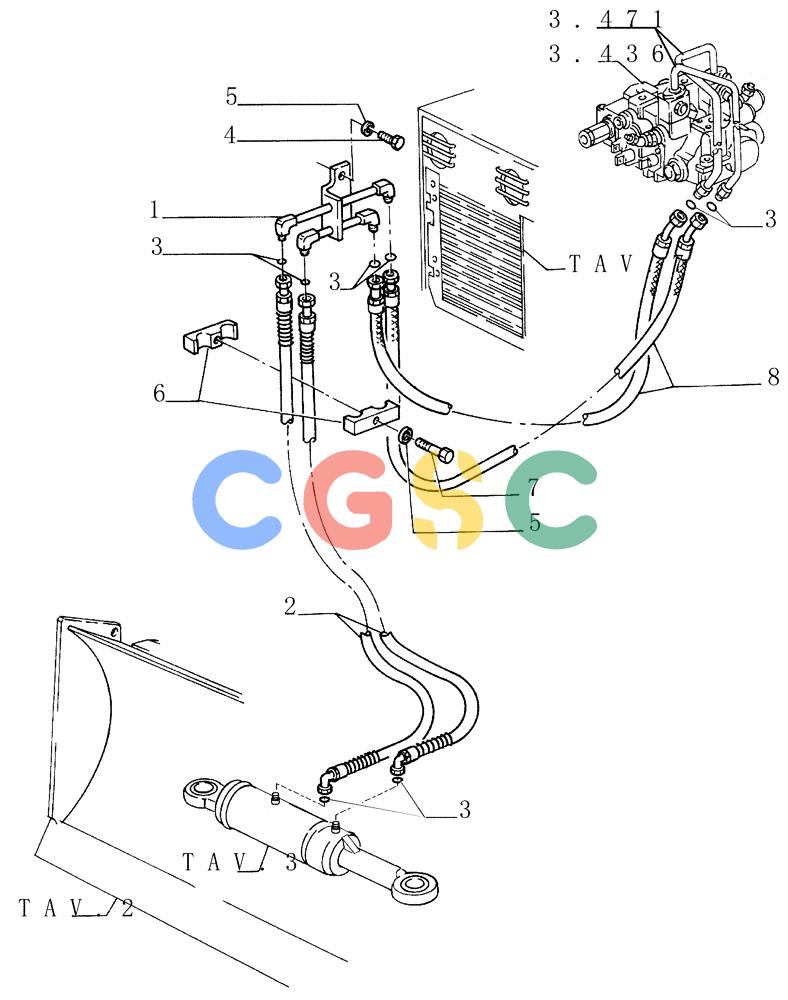

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.440[05]) - FRONT IMPLEMENT ALL. HYDR.- HYDR. SYSTEM - OPTIONAL CODE 76035980 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
637 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041237 | [1] | BRACKET | LEC |
| 2. | 76041175 | [2] | FLEXIBLE HOSE | LEC |
| 3. | 70923841 | [8] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
| 4. | 14420131 | [2] | HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd | LEC |
| 5. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 6. | 76041055 | [1] | COLLAR CLAMP | LEC |
| 7. | 11106231 | [1] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 8. | 76041176 | [2] | FLEXIBLE HOSE | LEC |
