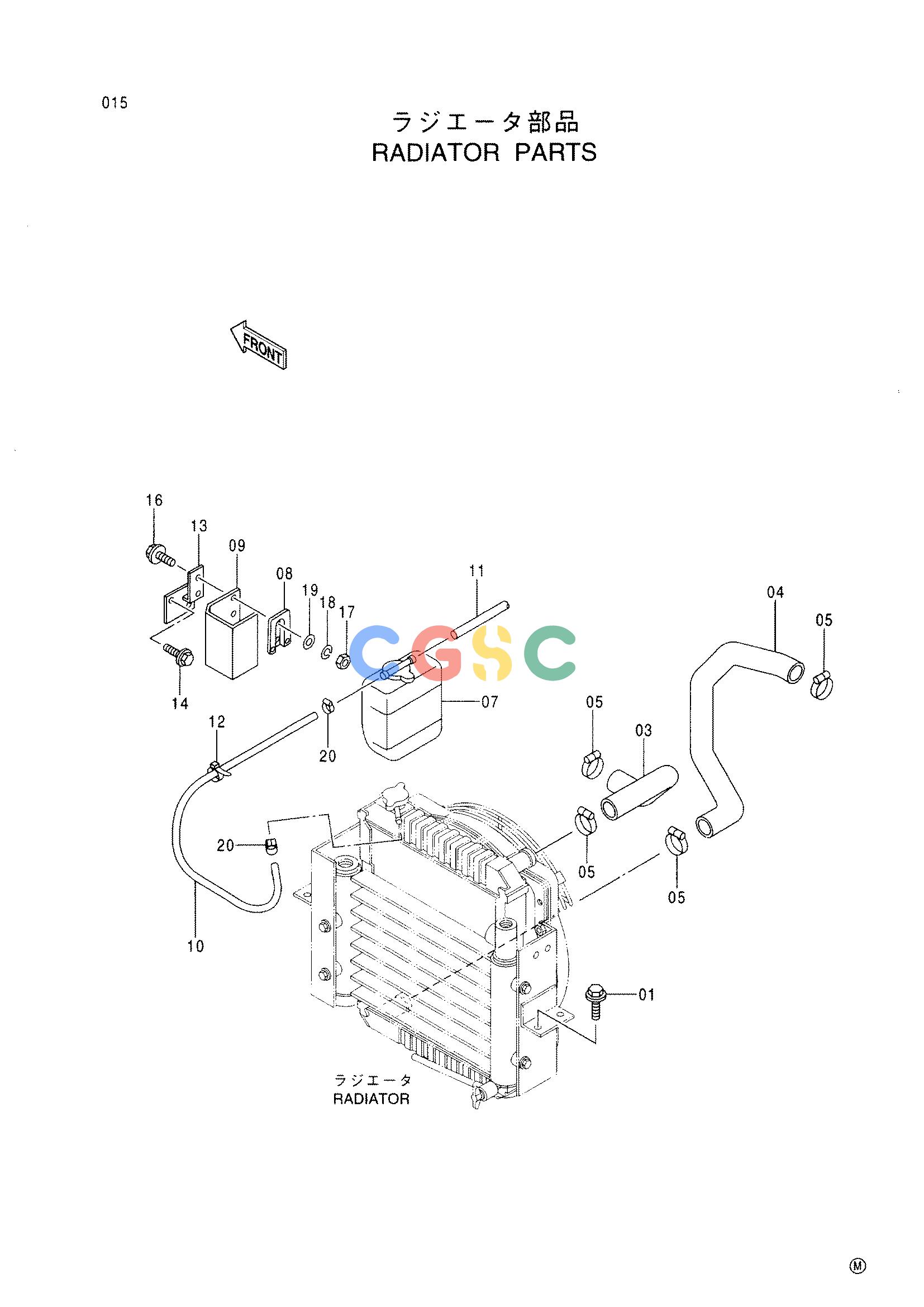

日立零件查询（CC150CW）RADIATOR PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 500029 | [4] | BOLT;SEMS | |
| 03. | 425576 | [1] | HOSE;WATER | |
| 04. | 425577 | [1] | HOSE;WATER | |
| 05. | 313035 | [4] | CLAMP;HOSE | |
| 07. | 425521 | [1] | TANK;WATER | |
| 08. | 425027 | [1] | PLATE | |
| 09. | 425702 | [1] | COVER | |
| 10. | 425695 | [1] | HOSE;WATER | |
| 11. | 425500 | [1] | HOSE;WATER | |
| 12. | 438094 | [2] | CLIP;BAND | |
| 13. | 425814 | [1] | BRACKET | |
| 14. | 500048 | [2] | BOLT;SEMS | |
| 16. | 947611 | [2] | BOLT;SEMS | |
| 17. | 947853 | [2] | NUT | |
| 18. | 947886 | [2] | WASHER;SPRING | |
| 19. | 947322 | [2] | WASHER;PLANE | |
| 20. | 425035 | [2] | CLAMP | |
