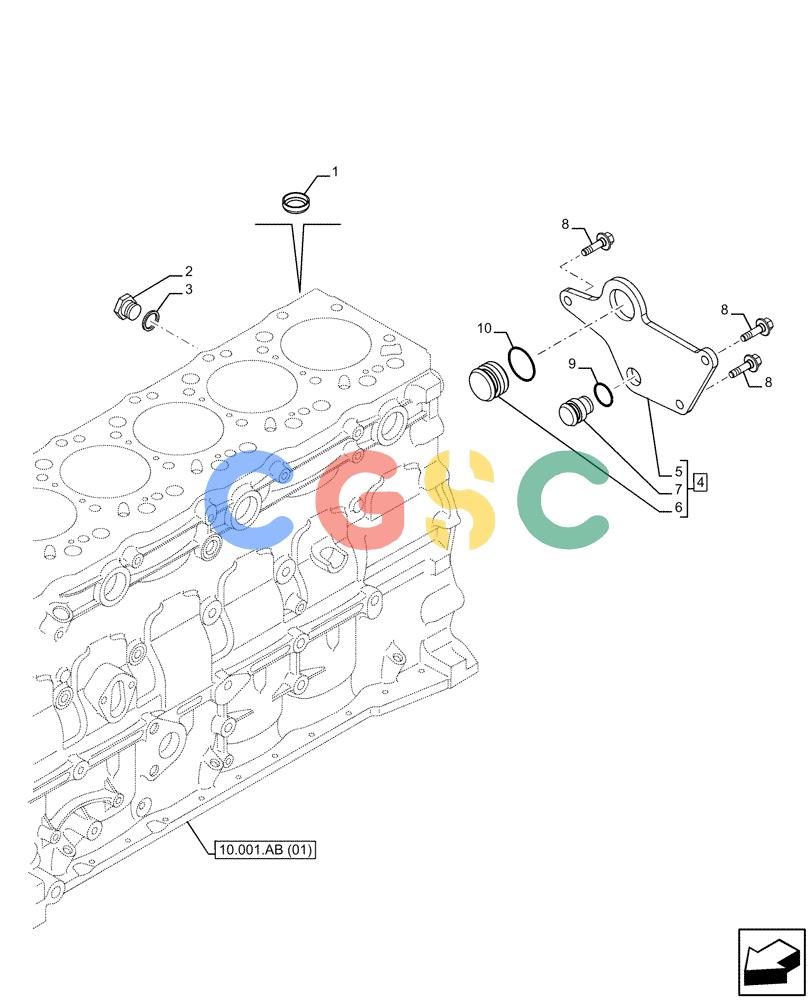

神钢零件查询(F4HFE6137 B003) - ENGINE 5801925169 47748446 TC 5.80 TIER 4B (1/12-) (10.304.AP) - ENGINE, BREATHER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
906 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2856545 | [1] | PLUG | TOR Superseded by part number: 504086298 |
| 1. | 504086298 | [1] | COVER | CUR |
| 1. | 4895039 | [1] | EXPANSION PLUG,M17.73 | TOR |
| 1. | 4895086 | [1] | | |
| 2. | 2856546 | [1] | PLUG | TOR Superseded by part number: 10300511 |
| 2. | 10300511 | [1] | PLUG,M12 x 1.5 x 12, Cl5.8 | JES |
| 2. | 4895089 | [1] | PLUG,0.886" L | TOR |
| 3. | 4858607 | [1] | COPPER WASHER,12mm ID x 17mm OD x 1.50mm | TTF Superseded by part number: 2854292 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Incl in 4 |
| 8. | 4899110 | [3] | SCREW,Hex Flg, M6 x 1 x 20 | TOR |
| 9. | 4898372 | [1] | O-RING,13.11mm ID x 2.62mm Width | TOR |
| 10. | 17288281 | [1] | O-RING | TOR Superseded by part number: 2855200 |
