斗山零件查询SPARE PARTS - PROMOTION SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
948 次

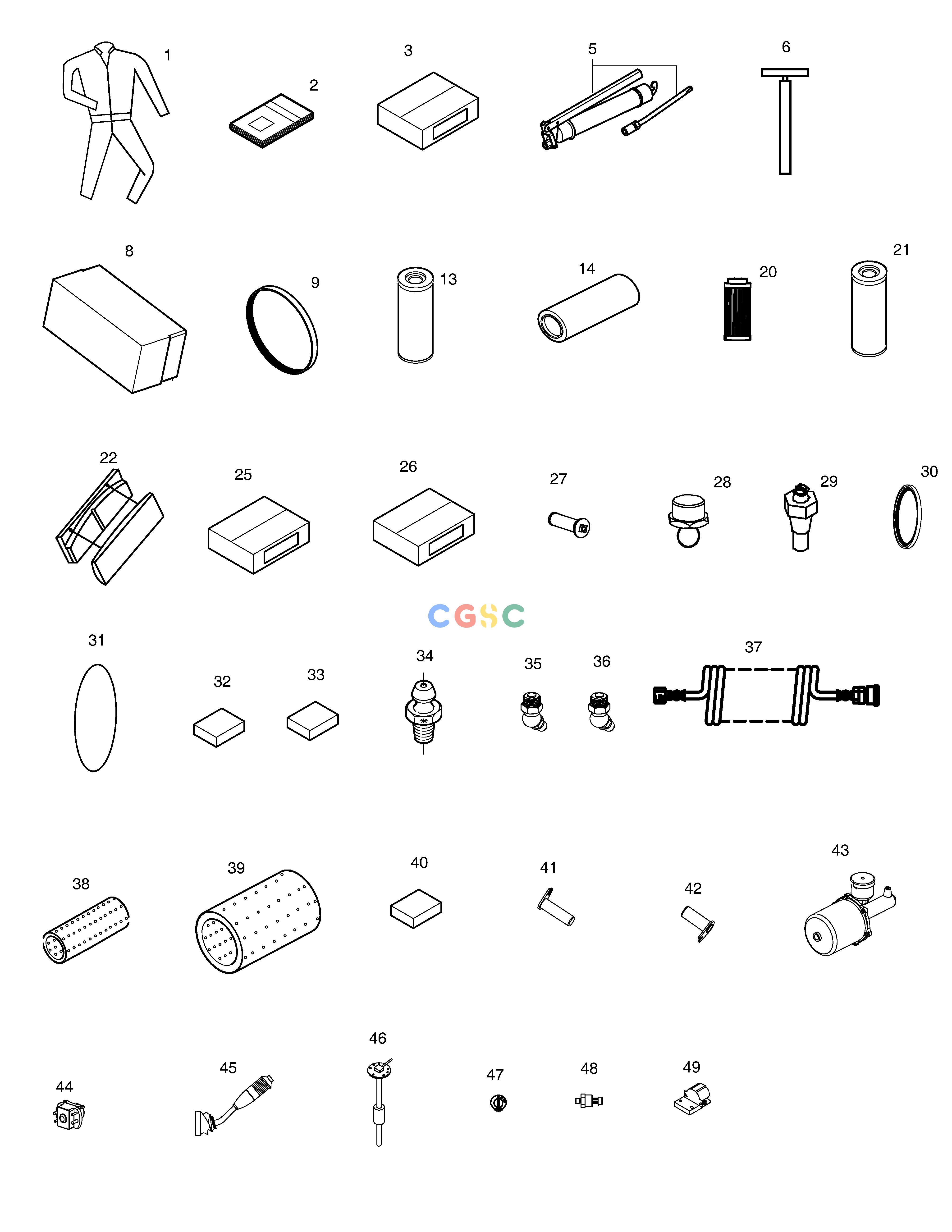

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
950106-01346
|
[1] |
PARTS BOOK;SD310
|
|
| -. |
101594-01231
|
[-] |
SPARE PARTS;PROMOTION
|
950106-01346
|
| 1. |
940205-00375
|
[1] |
WEAR,WORK
|
|
| 13. |
400406-00013
|
[3] |
FILTER;RETURN
|
|
| 14. |
400406-00263
|
[1] |
|
|
| 2. |
950106-01346
|
[1] |
PARTS BOOK;SD310
|
|
| 20. |
400504-00224
|
[3] |
. ELEMENT,OIL FILTER
|
|
| 21. |
1.471-00005
|
[2] |
FILTER;TRANSMISSION
|
|
| 22. |
130106-00057
|
[16] |
DISK,BRAKE
|
|
| 25. |
100403-00073
|
[1] |
BOX,SPARE PARTS
|
|
| 26. |
100403-00071
|
[1] |
BOX,SPARE PARTS
|
|
| 27. |
400408-00018
|
[1] |
FILTER,SUCTION
|
|
| 28. |
410116-00984
|
[1] |
VALVE,AIR
|
|
| 28. |
410116-00167
|
[1] |
VALVE
|
410116-00984
|
| 29. |
301317-00102
|
[1] |
SENSOR
|
|
| 3. |
100403-00009A
|
[1] |
BOX,SPARE PARTS
|
|
| 30. |
401106-00529
|
[1] |
SEAL,OIL
|
|
| 30. |
401106-00170
|
[1] |
SEAL,OIL
|
|
| 31. |
401002-00394
|
[1] |
RING,O
|
|
| 32. |
101529-00898
|
[1] |
SEAL KIT;CYLINDER;BOOM
|
|
| 32. |
101529-00004
|
[1] |
SEAL KIT;CYLINDER;BOOM
|
|
| 33. |
101529-00897
|
[1] |
SEAL KIT;BUCKET CYLINDER
|
|
| 33. |
101529-00005
|
[1] |
SEAL KIT;BUCKET CYLINDER
|
|
| 34. |
300202-00012
|
[1] |
ADAPTER,CONNECTER
|
|
| 35. |
S6710101
|
[2] |
NIPPLE;GREASE
|
|
| 36. |
S6710041
|
[2] |
NIPPLE,GREASE
|
|
| 37. |
420101-00110
|
[1] |
HOSE,AIR
|
|
| 38. |
400504-00270
|
[4] |
ELEMENT,AIR CLEANER;INNER
|
|
| 38. |
400504-00209
|
[4] |
ELEMENT,AIR CLEANER
|
|
| 39. |
400504-00271
|
[4] |
ELEMENT,AIR CLEANER;OUTER
|
|
| 39. |
400504-00210
|
[4] |
.. ELEMENT,AIR CLEANER
|
|
| 40. |
101529-00896
|
[1] |
SEAL KIT,STEERING CYLINGDER
|
|
| 40. |
101529-00003
|
[1] |
SEAL KIT,STEERING CYLINGDER
|
|
| 41. |
120501-00372C
|
[2] |
PIN
|
|
| 42. |
120501-00373E
|
[1] |
PIN
|
|
| 43. |
400916-00401
|
[1] |
PUMP
|
|
| 43. |
400916-00133A
|
[1] |
BRAKE PUMP
|
400916-00401
|
| 44. |
301202-00011
|
[1] |
RELAY,BATTERY
|
|
| 45. |
301403-00002
|
[1] |
SWITCH,COMBINATION
|
|
| 46. |
301316-00031
|
[1] |
|
|
| 47. |
301419-00001
|
[1] |
SWITCH,STARTER
|
|
| 48. |
301309-00104
|
[1] |
SENSOR,PRESSURE
|
|
| 49. |
K1054730
|
[1] |
BUZZER,BACK
|
|
| 5. |
A142420
|
[1] |
GUN,GREASE
|
|
| 6. |
850311-00003
|
[1] |
GUN,AIR
|
|
| 8. |
300706-00637
|
[1] |
BOX,ELECTRIC;FUSE
|
|
| 9. |
130202-00021
|
[1] |
BELT
|
|
