凯斯零件查询(8530) - CASE IH RECTANGULAR BALER (1/88-12/99) (9-68) - HYDRAULIC DRIVE AND CONTROL ASSEMBLY - REAR, (RADIAL PISTON PUMP) (S.N. CFH0024001 THRU CFH0062219) Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8530) - CASE IH RECTANGULAR BALER (1/88-12/99) (9-68) - HYDRAULIC DRIVE AND CONTROL ASSEMBLY - REAR, (RADIAL PISTON PUMP) (S.N. CFH0024001 THRU CFH0062219) Case Agriculture

广数供应链运营团队, 15 02月, 2025，浏览： 791 次

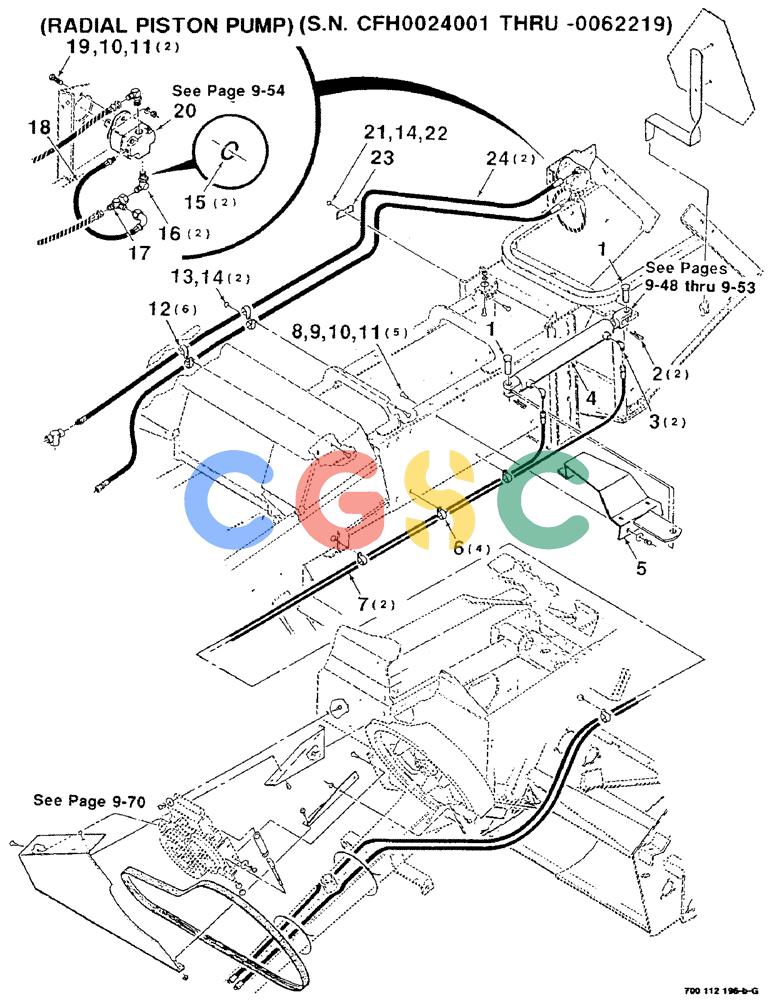

Pos.	Part No	Qty	Parts name	Comments
1.	7037682	[2]	PIN	CAS - clevis Superseded by part number: B17284
2.	S120261	[2]	PIN	CAS .148 X 2-3/4 HAIRPIN COTTER
3.	7746381	[2]	ELBOW	CAS 3/8 X 90 DEGREE ELBOW Superseded by part number: 218-1054
4.	796102	[1]	CYLINDER	CAS - hydraulic Superseded by part number: 700711032, 700711078
. .	700704934	[1]	CYLINDER	CAS - hydraulic Superseded by part number: 700711078, 700711032
. .	700711032	[1]	CYLINDER ASSY.	L CYLINDER - hydraulic
5.	700112726	[1]	SUPPORT	CAS BRACKET - mounting, cylinder
6.	7898737	[4]	CLAMP	CAS - hose Superseded by part number: 9827902
7.	700706425	[2]	HOSE	CAS - hydraulic
8.	700047	[5]	BOLT	CAS 3/8-16 X 1 RHSNB Superseded by part number: 80280503
9.	80702	[5]	WASHER,0.44" ID x 1" OD x 0.08" Thk	NH 3/8 HARDENED PLAIN WASHER
10.	705038	[7]	CONTROL VALVE	CAS 3/8" Superseded by part number: 492-11038
11.	704023	[7]	NUT,3/8"-16, G5	CAS 3/8-16 H Superseded by part number: 280136
12.	755769	[6]	CLAMP	HFI - hose Superseded by part number: 87029955
13.	7700065	[2]	CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5	CAS 3/8-16 X 3/4 RHSNB Superseded by part number: 280430
14.	704247	[3]	NUT	CAS 3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
15.	738484	[2]	O-RING	IH Superseded by part number: 167266
16.	7046600	[2]	ELBOW	HFI 90 DEGREE ELBOW (Includes item 15) Superseded by part number: 87329785
17.	7846850	[1]	TEE	CAS - swivel run Superseded by part number: 86511870
18.	700706426	[1]	HOSE	CAS - hydraulic
19.	702035	[2]	BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd	CAS 3/8-16 X 1-1/4 C
20.	7796386	[1]	HYDRAULIC MOTOR	HFI MOTOR - hydraulic Superseded by part number: 86629586, 700723556, 700723563, 76350
21.	700054	[1]	CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5	CAS 3/8-16 X 1-1/4 RHSNB Superseded by part number: 86508773
22.	704635	[1]	NUT	CAS 3/8-16 HCLN Superseded by part number: 230-4216, 230-4216, 88902
23.	451641	[1]	CLAMP	CAS - line
24.	700706361	[2]	HOSE	CAS - hydraulic
