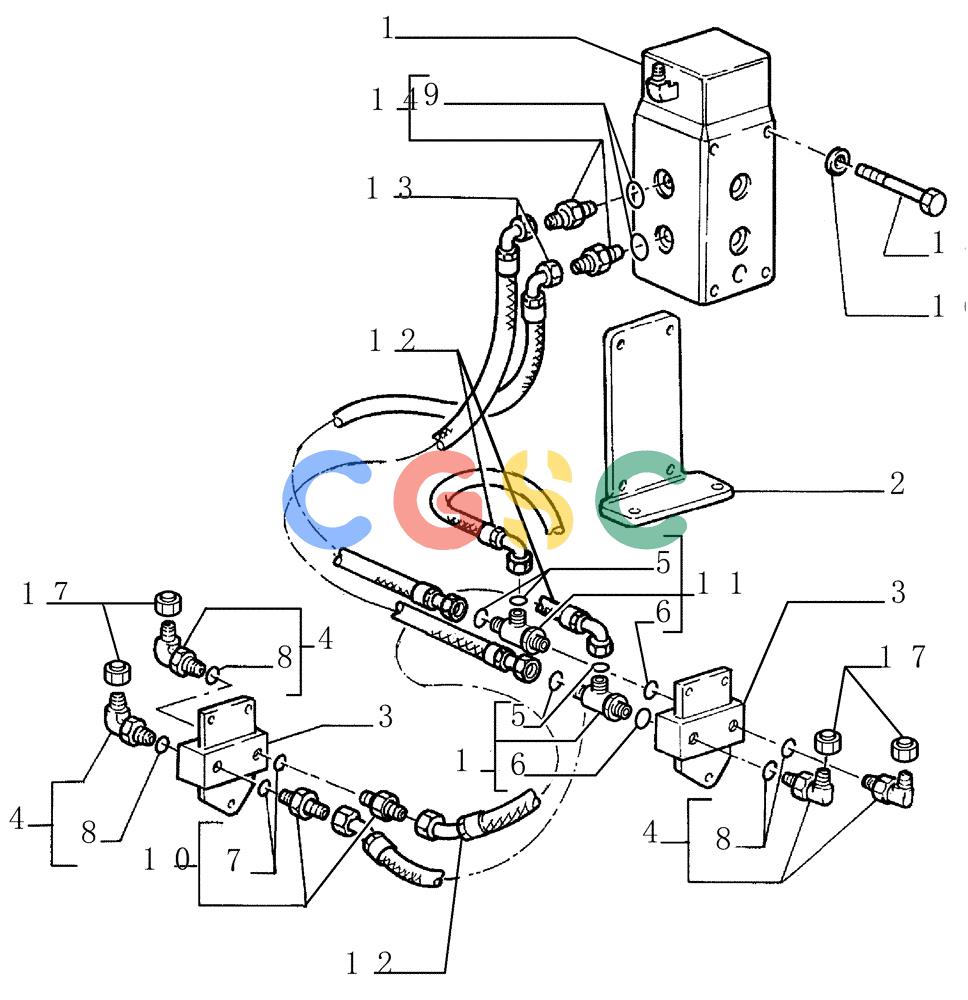

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.441[01]) - ALL HYDRAULIC VERSION - HYDR. SYSTEM - OPTIONAL CODE 76048220 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
169 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040313 | [1] | SHUNTER | LEC- ASSY SEE TAV. 6 |
| 2. | 76041196 | [1] | BRACKET | LEC Superseded by part number: 76054552 |
| 3. | 76033358 | [2] | BLOCK | LEC |
| 4. | 78100129 | [4] | HYD CONNECTOR | BHB- ASSY Superseded by part number: 86579691, 9992298 |
| 5. | 70930357 | [2] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | LEC Superseded by part number: 9992069 |
| 8. | 70923841 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
| 9. | 70923843 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
| 10. | 78100098 | [2] | HYD CONNECTOR | LEC- ASSY Superseded by part number: 86579679 |
| 11. | 78100119 | [2] | HYD CONNECTOR | LEC- ASSY |
| 12. | 76041180 | [2] | FLEXIBLE HOSE | LEC |
| 13. | 76041181 | [2] | FLEXIBLE HOSE | LEC |
| 14. | 79094128 | [2] | HYD CONNECTOR | LEC- ASSY Superseded by part number: 154221912 |
| 15. | 11032331 | [4] | BOLT,Hex, M6 x 90mm, Cl 10.9 | TOR Superseded by part number: 11032321 |
| 16. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 17. | 78100135 | [4] | PLUG,M12 | LEC |
| 6. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
