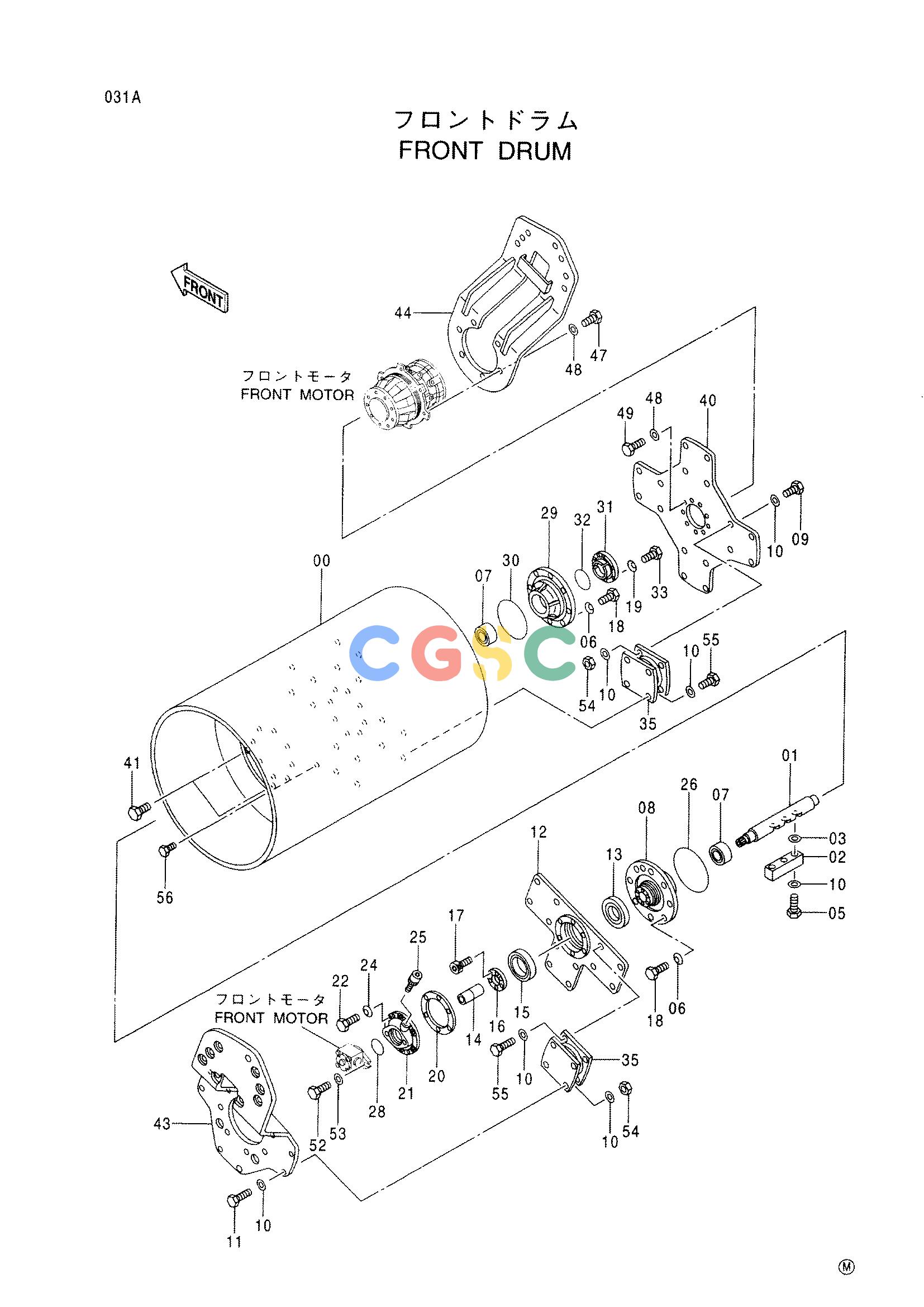

日立零件查询（CC150CW）FRONT DRUM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
894 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425738 | [1] | DRUM | |
| 01. | 425571 | [1] | SHAFT | |
| 02. | 425615 | [1] | WEIGHT | |
| 03. | 425067 | [3] | WASHER | |
| 05. | 439742 | [3] | BOLT | |
| 06. | 615045 | [16] | WASHER | |
| 07. | 114011 | [2] | BRG. | |
| 08. | 425562 | [1] | HOUSING;BRG. | |
| 09. | 947689 | [16] | BOLT | |
| 10. | 424195 | [87] | WASHER | |
| 11. | 500269 | [12] | BOLT | |
| 12. | 425749 | [1] | HOUSING;BRG. | |
| 13. | 947506 | [1] | SEAL;OIL | |
| 14. | 425770 | [1] | COUPLING | |
| 15. | 900208 | [1] | BRG.;BALL | |
| 16. | 433451 | [1] | COVER;BRG. | |
| 17. | 947803 | [6] | BOLT;SOCKET | |
| 18. | 947690 | [16] | BOLT | |
| 19. | 615043 | [6] | WASHER | |
| 20. | 433452 | [1] | PACKING | |
| 21. | 425572 | [1] | MOTOR FRANGE | |
| 22. | 947684 | [6] | BOLT | |
| 24. | 615044 | [6] | WASHER | |
| 25. | 947147 | [1] | BREATHER;AIR | |
| 26. | 160114 | [1] | O-RING | |
| 28. | 425538 | [1] | O-RING | |
| 29. | 425573 | [1] | HOUSING;BRG. | |
| 30. | 439412 | [1] | O-RING | |
| 31. | 425574 | [1] | COVER;BRG. | |
| 32. | 160033 | [1] | O-RING | |
| 33. | 947621 | [6] | BOLT | |
| 35. | 425452 | [7] | RUBBER | |
| 40. | 425575 | [1] | PLATE | |
| 41. | 425534 | [2] | PLUG | |
| 43. | 425739 | [1] | PLATE | |
| 44. | 425740 | [1] | PLATE | |
| 47. | 425558 | [6] | BOLT | |
| 48. | 425552 | [15] | WASHER | |
| 49. | 425557 | [9] | BOLT | |
| 52. | 947683 | [2] | BOLT | |
| 53. | 425551 | [2] | WASHER | |
| 54. | 570007 | [28] | NUT | |
| 55. | 947686 | [28] | BOLT | |
| 56. | 439172 | [1] | PLUG | |
