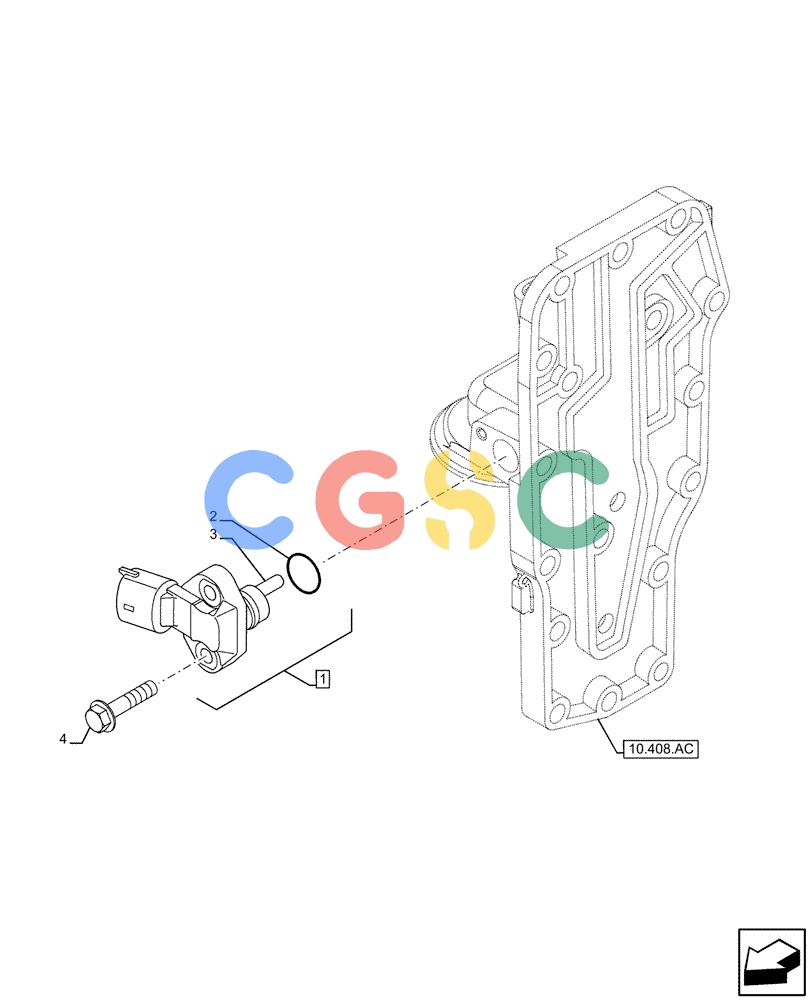

神钢零件查询(F4HFE6137 B003) - ENGINE 5801925169 47748446 TC 5.80 TIER 4B (1/12-) (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
997 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2859674 | [1] | SENSOR,Oil Pressure | TORASSY, Incl 2,3 Superseded by part number: |
| 1. | 504358206 | [1] | SWITCH,Pressure | SWITCH,Pressure |
| 2. | 4895477 | [1] | O-RING,2.62mm Thk x 13.94mm ID | TOR |
| 2. | 17916280 | [1] | SEAL | TOR |
| 2. | 42546555 | [1] | O-RING | TOR |
| 3. | 504372225 | [1] | SENSOR,Temperature / Pressure | CUR |
| 4. | 4895817 | [2] | BOLT,Flng, M6 x 1 x 20mm, Cl 10.9 | TOR |
