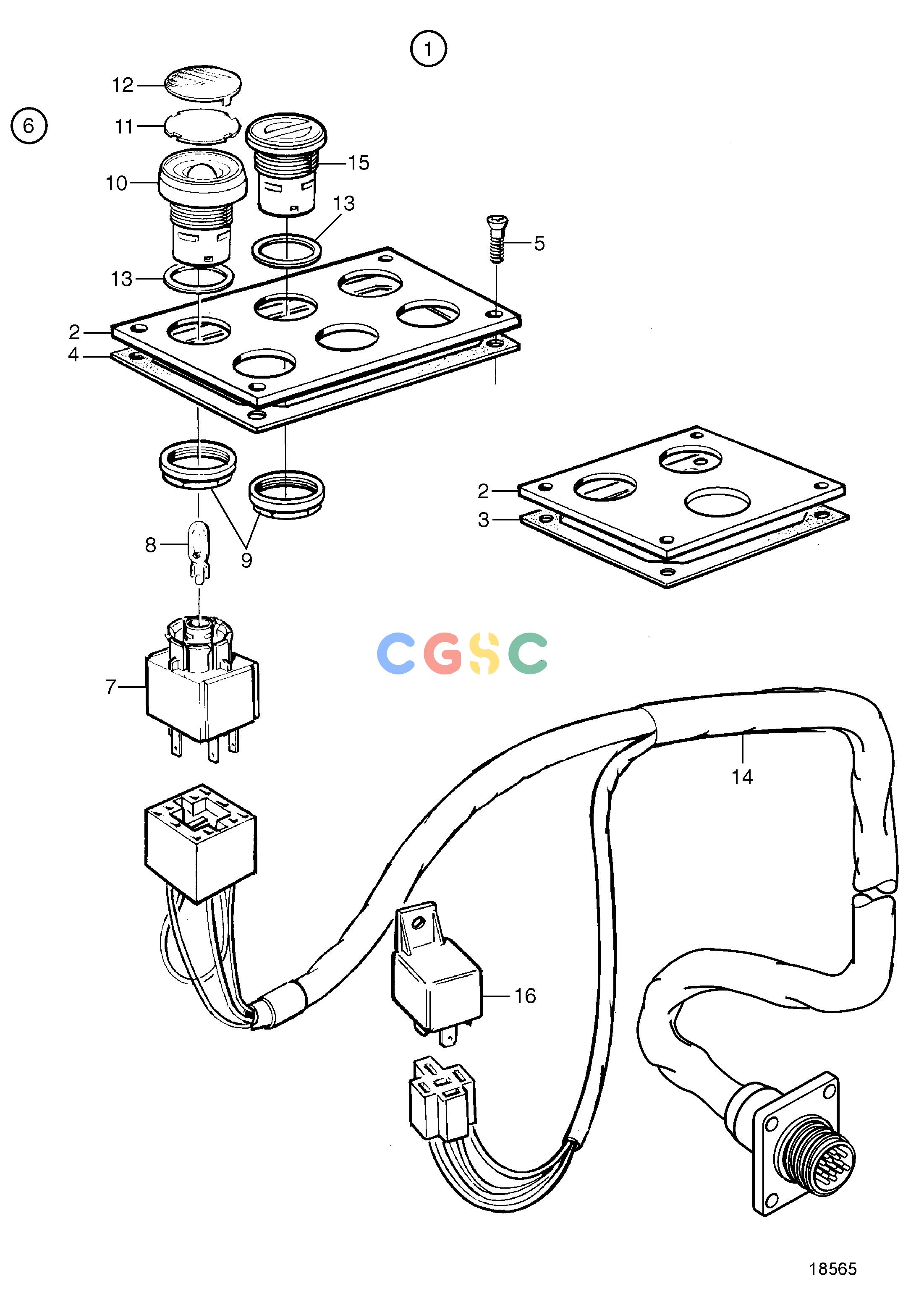

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EElectrical SystemMonitoring Panel for Single and Two Or More Stations: 2 HOLEEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Singel engine installation. For singel station., Nb! also avaible as 2x8-pole system., Round 16-pole
|
| 2. |
873642
|
[1] |
Plate
|
Singel engine installation. For singel station., 2 hole
|
| 3. |
873643
|
[1] |
Gasket
|
|
| 5. |
828647
|
[4] |
Screw
|
|
| 6. |
876950
|
[2] |
Push button kit
|
Spare part design
|
| 7. |
|
|
|
|
| 8. |
942327
|
[2] |
Bulb
|
12V, 1,2W
|
| 8. |
943638
|
[2] |
Bulb
|
24V, 1,2W
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
Blue
|
| 13. |
|
|
|
|
| 14. |
873629
|
[1] |
Wiring harness
|
Round 16-pole connection.
|
