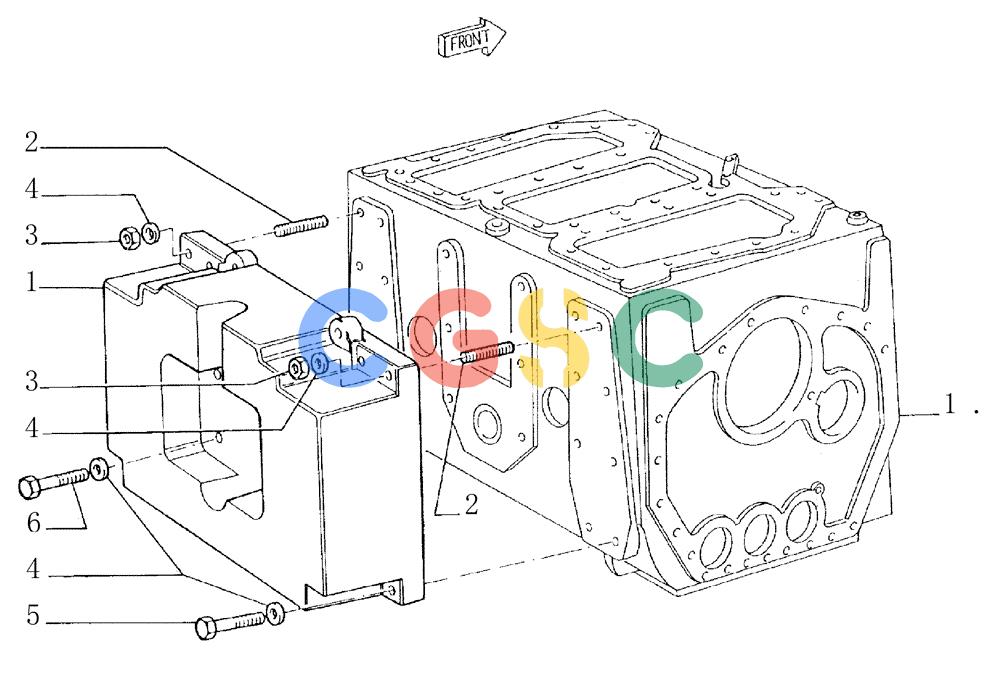

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.464[01]) - ADDITIONAL REAR COUNTERWEIGHT - OPTIONAL CODE 76038265 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79084381 | [1] | WEIGHT | LEC |
| 2. | 76045669 | [4] | STUD | LEC |
| 3. | 12164521 | [4] | NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10 | MOD24X2X19 Superseded by part number: 12164527 |
| 4. | 79005245 | [10] | WASHER,25mm ID x 55mm OD x 9mm Thk | LEC24X55 |
| 5. | 15997734 | [2] | BOLT,Hex, M24 x 2 x 110mm, Cl 10.9 | LEC24X2X110 Superseded by part number: 15997737 |
| 6. | 15998734 | [4] | BOLT,Hex, M24 x 2 x 180mm, Cl 10.9 | LEC Superseded by part number: 15998737 |
