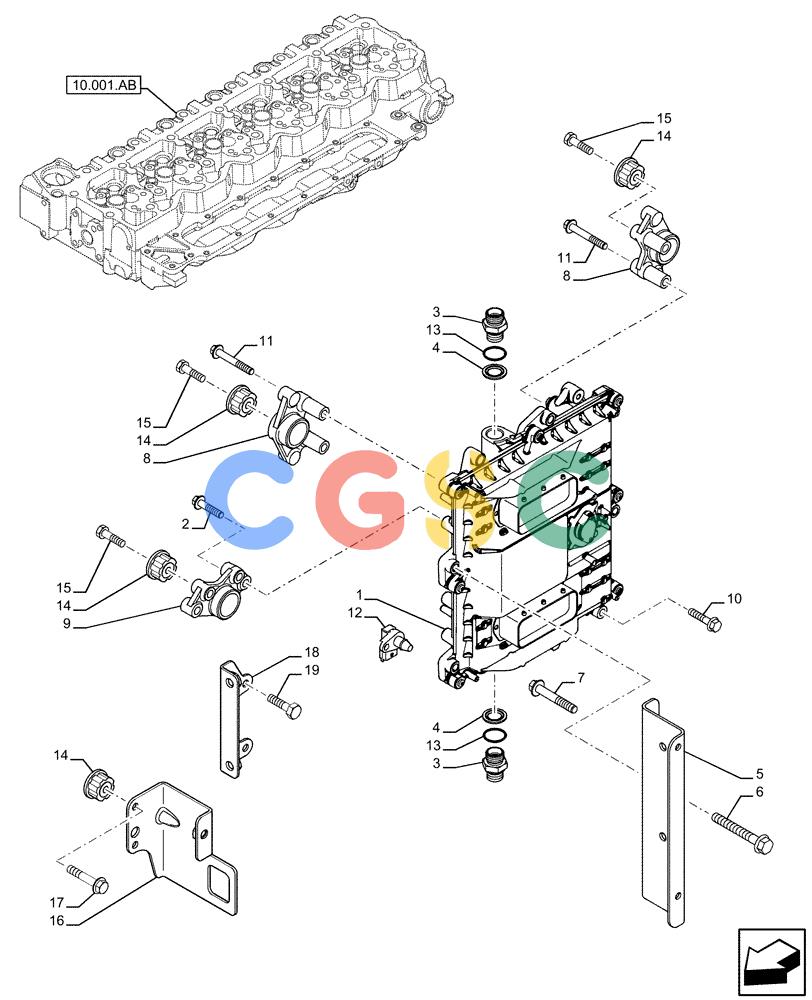

神钢零件查询(F4HFE6137 B003) - ENGINE 5801925169 47748446 TC 5.80 TIER 4B (1/12-) (55.015.AA) - CONTROL UNIT, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84499733 | [1] | ECU | GI |
| 1. | 84499733R | [1] | REMAN ELECT CONTROL | RAC |
| 1. | 8094212 | [1] | | |
| 4. | 2855150 | [2] | INSULATOR BLOCK | TOR Superseded by part number: 98498817 |
| 5. | NS | [2] | NOT SERVICED | BASRear support |
| 6. | NS | [3] | NOT SERVICED | BASScrew, M8 x 1.25 x 45mm |
| 7. | NS | [2] | NOT SERVICED | BASScrew, M6 x 16mm |
| 9. | 504297839 | [1] | BRACKET | TOR |
| 10. | NS | [2] | NOT SERVICED | BASScrew |
| 11. | 17935001 | [4] | SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm | TOR |
| 11. | 16586025 | [4] | SCREW,Hex, M6 x 30mm | TOR Superseded by part number: 2854083 |
| 12. | 4897224 | [2] | SENSOR | TOR |
| 13. | 4858609 | [2] | WASHER,Brass | TTF |
| 14. | 98498817 | [4] | ISOLATOR | TOR Superseded by part number: 2855150 |
| 15. | 2852101 | [3] | FLANGE BOLT,Hex, M6 x 16mm | TOR Superseded by part number: 18137825 |
| 17. | 2852818 | [2] | SCREW,Hex, M6 x 1 x 30mm | SM Superseded by part number: 16586025 |
| 19. | 4899078 | [2] | SCREW,Hex Flg, M8 x 1.25 x 45 | TOR |
| 19. | 18137825 | [2] | BOLT,Hex, M6 x 16mm | TOR |
