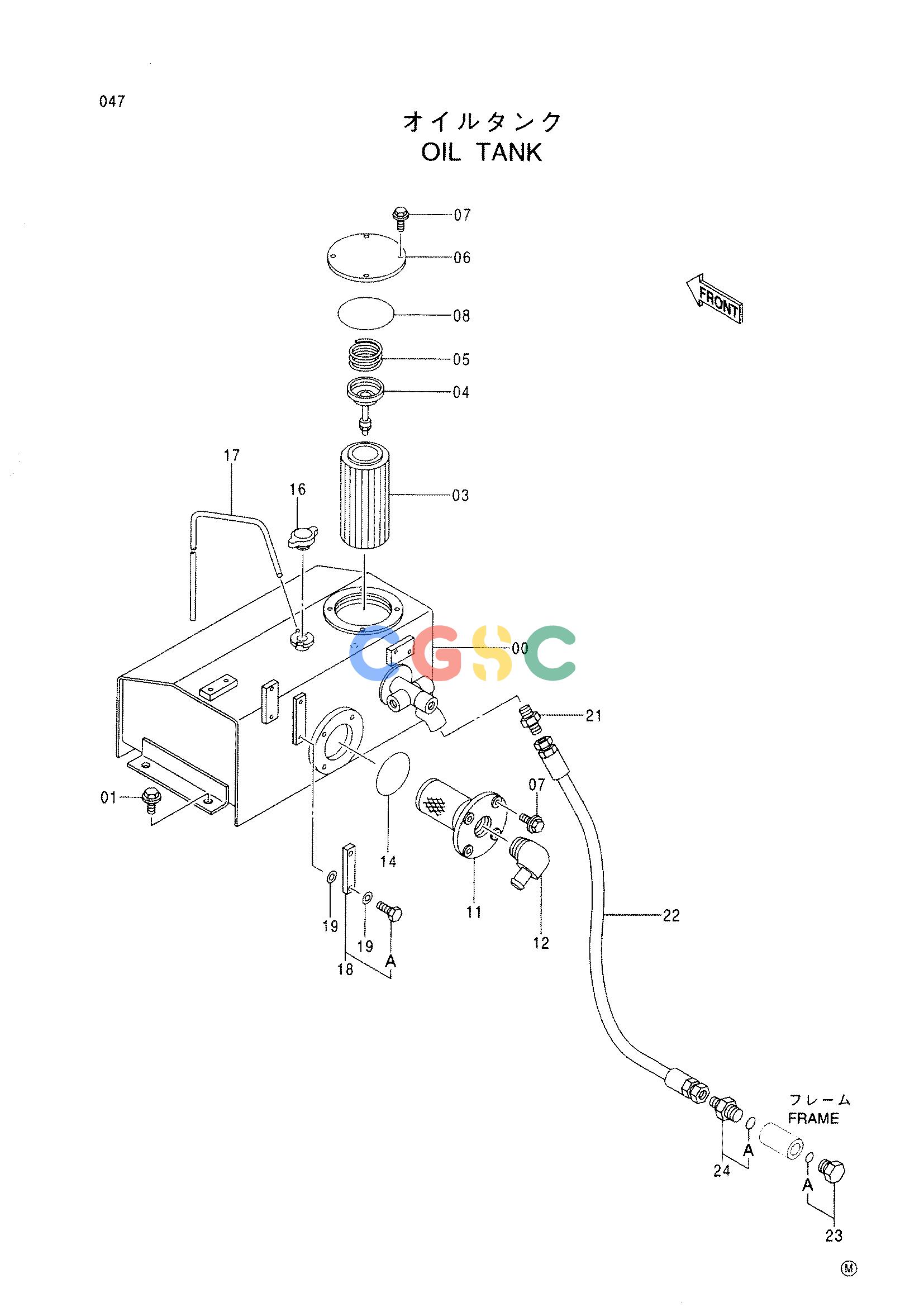

日立零件查询（CC150CW）OIL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
581 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425744 | [1] | TANK;OIL | |
| 01. | 500193 | [4] | BOLT;SEMS | |
| 03. | 424306 | [1] | ELEMENT;FILTER | |
| 04. | 424033 | [1] | VALVE | |
| 05. | 425594 | [1] | SPRING | |
| 06. | 425591 | [1] | COVER | |
| 07. | 500048 | [8] | BOLT;SEMS | |
| 08. | 425537 | [1] | O-RING | |
| 11. | 425018 | [1] | FILTER;SUCTION | |
| 12. | 425202 | [1] | ELBOW;S | |
| 14. | 425063 | [1] | O-RING | |
| 16. | 424985 | [1] | CAP | |
| 17. | 425598 | [1] | HOSE;BINYL | |
| 18. | 425530 | [1] | GAUGE;LEVEL | |
| 18A. | 424648 | [2] | BOLT | |
| 19. | 162010 | [4] | WASHER;SEAL | |
| 21. | 425479 | [1] | ADAPTER;S | |
| 22. | 425664 | [1] | HOSE | |
| 23. | 425547 | [1] | PLUG | |
| 23A. | 947520 | [1] | O-RING | |
| 24. | 424125 | [1] | ADAPTER;S | |
| 24A. | 947520 | [1] | O-RING | |
