沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EElectrical SystemMonitoring Panel for Single and Two Or More Stations: 6 HOLEEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
694 次

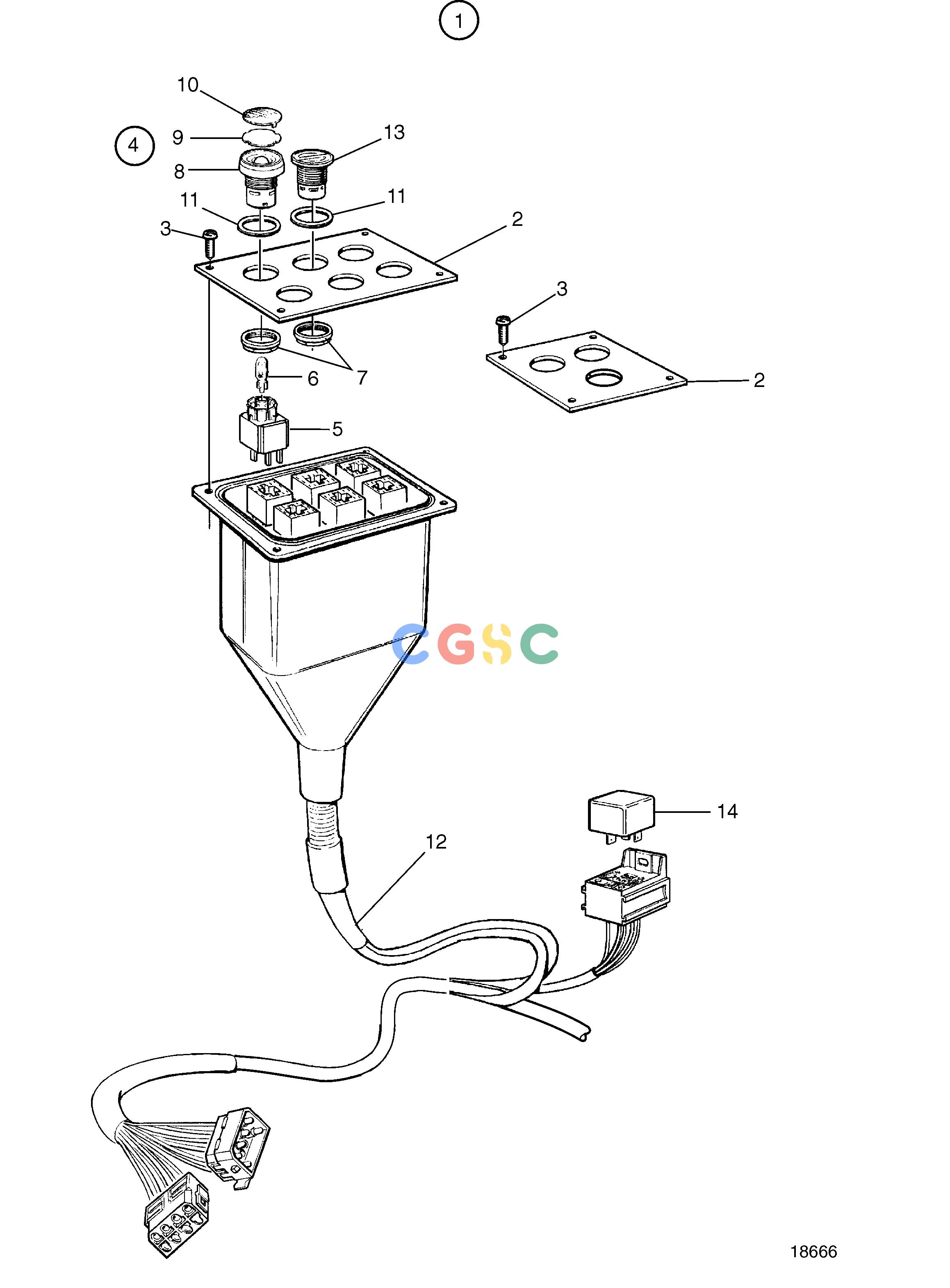

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873892
|
[1] |
Control panel
|
Twin engine installation. For one or more stations., 2x8-pole connection., 6 hole
|
| 2. |
873733
|
[1] |
Plate
|
Twin engine installation. For one or more stations., 6 hole
|
| 3. |
828647
|
[4] |
Screw
|
|
| 4. |
876950
|
[6] |
Push button kit
|
|
| 5. |
|
|
|
|
| 6. |
942327
|
[6] |
Bulb
|
12V, 1,2W
|
| 6. |
943638
|
[6] |
Bulb
|
24V, 1,2W
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
Blue
|
| 11. |
|
|
|
|
| 12. |
873871
|
[1] |
Cable kit
|
2x8-pole connection.
|
| 13. |
873750
|
[1] |
Plastic plug
|
|
| 14. |
873765
|
[1] |
Relay
|
12V
|
