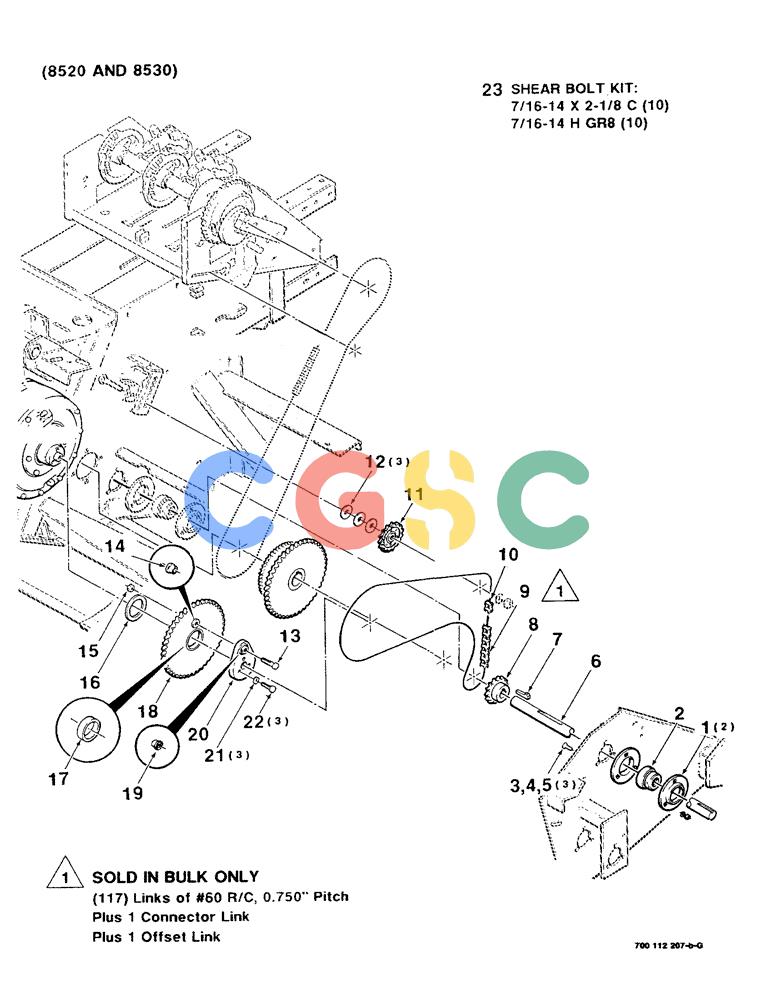

凯斯零件查询(8530) - CASE IH RECTANGULAR BALER (1/88-12/99) (2-22) - DRIVE ASSEMBLY (CONTINUED), (8520 AND 8530) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
50534
|
[2] |
FLANGED BEARING
|
CAS
- bearing Superseded by part number: H747188
|
| 2. |
700708094
|
[1] |
SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm
|
CAS
BEARING - spherical Superseded by part number: 2419CHA
|
| 3. |
700047
|
[3] |
BOLT
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 4. |
705038
|
[3] |
CONTROL VALVE
|
CAS
3/8" Superseded by part number: 492-11038
|
| 5. |
704023
|
[3] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
| 6. |
700112233
|
[1] |
SHAFT
|
HFI
- drive, pickup (8520 only)
|
| . . |
700116636
|
[1] |
SHAFT
|
HFI
- drive, pickup (8530 only)
|
| 7. |
61622
|
[1] |
BUCKET TOOTH KEY
|
IH
1/4 X 1-1/2 KEY - gib Superseded by part number: Q3914
|
| 8. |
7747074
|
[1] |
PINION
|
L
SPROCKET 60B14
|
| 9. |
611362R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - roller, #60 (10 foot bulk) Superseded by part number: 611362R91X
|
| 10. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
LINK - connector, #60 R/C
|
| 11. |
629972R91
|
[1] |
DRIVE SPROCKET,15T
|
IH
SPROCKET - idler Superseded by part number: 86619126
|
| 12. |
NLS
|
[3] |
NO LONGER SERVICED
|
BAS
5/8 HARDENED PLAIN WASHER
|
| 13. |
7884950
|
[1] |
BOLT
|
CAS
7/16-14 X 2-1/8 C
|
| 14. |
700112222
|
[1] |
SLEEVE
|
CAS
- shear
|
| 15. |
7774995
|
[1] |
NUT,7/16"-14, G8
|
CAS
7/16-14 H GR8 Superseded by part number: 429-107
|
| 16. |
700112230
|
[1] |
WASHER
|
CAS
|
| 17. |
700705916
|
[1] |
BRONZE BUSHING
|
CAS
BUSHING - bronze
|
| 18. |
700112220
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET 60B44 (Includes items 14 & 17)
|
| 19. |
7852718
|
[1] |
SLEEVE
|
CAS
- shear Superseded by part number: 196727
|
| 20. |
700112223
|
[1] |
ARM ASSY.
|
CAS
ARM (Includes item 19)
|
| 21. |
80679
|
[3] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 22. |
8701724
|
[3] |
BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8
|
CAS
1/2-20 X 1-1/2 C GR8
|
| 23. |
6521868
|
[1] |
BOLT
|
CAS
SHEAR BOLT KIT - package includes: 7884950 (10) and 7774995 (10) Superseded by part number: 226228
|
