纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.473[01]) - C-FRAME - FRONT IMPLEMENT - OPTIONAL CODE 76028875 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
678 次

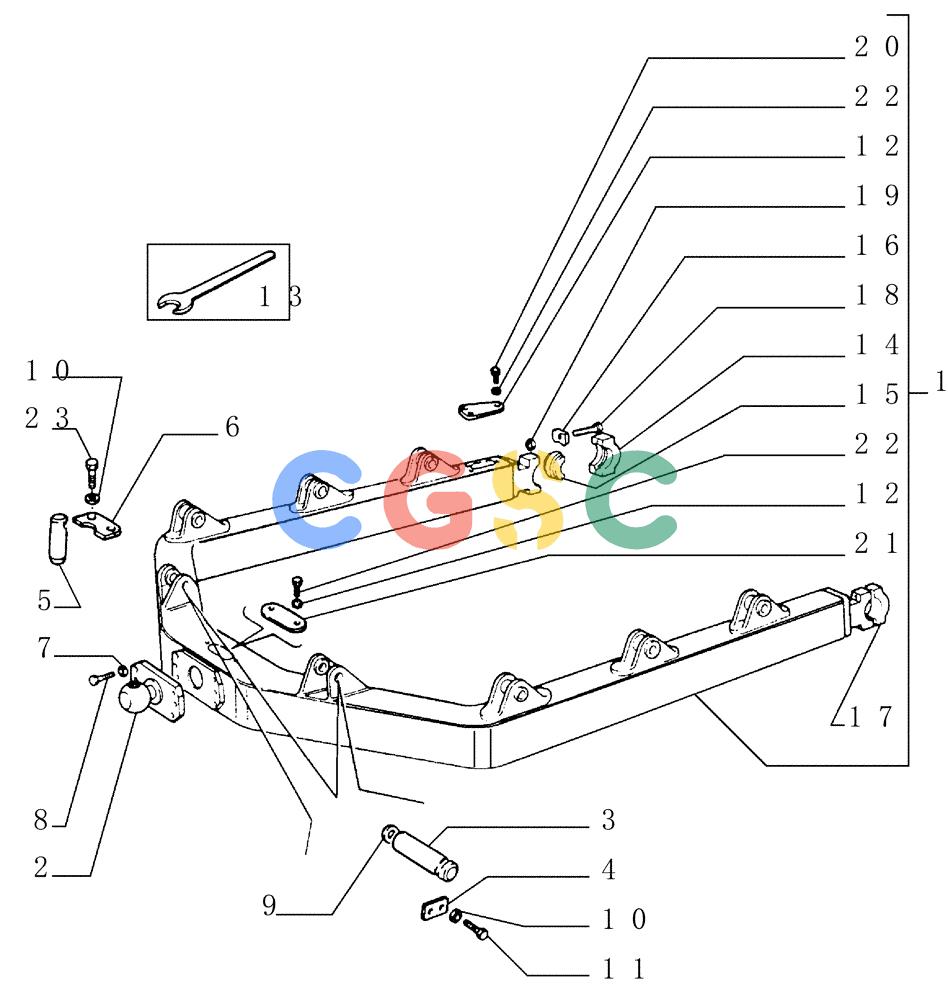

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76038101 | [1] | U-FRAME | LEC- ASSY |
| 2. | 8280722 | [1] | SUPPORT | LEC |
| 3. | 76028735 | [2] | PIN | LEC |
| 4. | 76028733 | [2] | COVER PLATE | LEC |
| 5. | 8280731 | [1] | PIN,45mm OD x 230mm L | LEC |
| 6. | 8270126 | [1] | PLATE | LEC Superseded by part number: 76092114 |
| 7. | 14496931 | [6] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 8. | 11118931 | [6] | BOLT,Hex, M16 x 50, 10.9 | WIN Superseded by part number: 412398 |
| 9. | 8280842 | [4] | SPACER,36mm ID x 45mm OD x 5mm L | LEC |
| 10. | 14496831 | [6] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 11. | 11115531 | [4] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 12. | 14496731 | [5] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 13. | 14585678 | [1] | WRENCH | LECKEY, LOCK 30X10 |
| 14. | 79091507 | [1] | SUPPORT | LEC |
| 15. | 8280721 | [2] | HALF-BUSHING | LEC |
| 16. | 8280723 | [4] | COVER PLATE | LEC |
| 17. | 8296713 | [1] | SUPPORT | LEC Superseded by part number: 76003029 |
| 18. | 15990731 | [4] | BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9 | LEC |
| 19. | 86015195 | [4] | NUT,M20 x 1.5, Cl 10 | RAC |
| 20. | 79089711 | [1] | PLATE | LEC |
| 21. | 79089723 | [1] | PLATE | LEC |
| 22. | 11112431 | [5] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 23. | 11422331 | [2] | BOLT,Hex, M14 x 1.5 x 30, 10.9, Full Thd | LEC14X1,5X30 |
