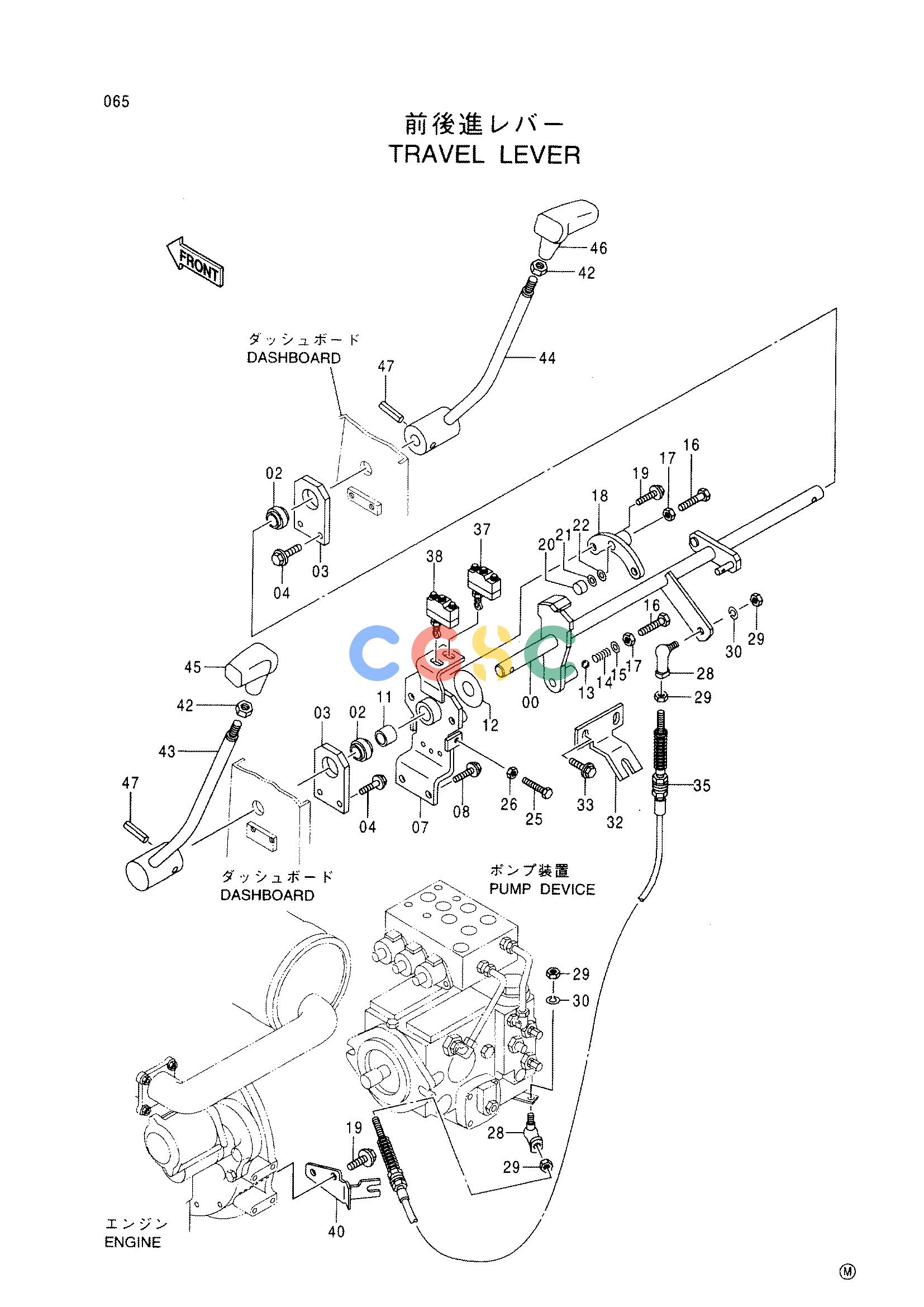

日立零件查询（CC150CW）TRAVEL LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
146 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425743 | [1] | SHAFT | |
| 02. | 425595 | [2] | BRG.;DRY | |
| 03. | 425592 | [2] | PLATE | |
| 04. | 500029 | [4] | BOLT;SEMS | |
| 07. | 425759 | [1] | BRACKET | |
| 08. | 500028 | [2] | BOLT;SEMS | |
| 11. | 425596 | [1] | BUSHING | |
| 12. | 425205 | [1] | DISC;FRICTION | |
| 13. | 425213 | [1] | BALL;STEEL | |
| 14. | 425208 | [1] | SPRING;COMPRES. | |
| 15. | 947321 | [1] | WASHER;PLANE | |
| 16. | 500037 | [2] | BOLT | |
| 17. | 570007 | [2] | NUT | |
| 18. | 425395 | [1] | BRACKET | |
| 19. | 500048 | [4] | BOLT;SEMS | |
| 20. | 425204 | [1] | HOLDER | |
| 21. | 425210 | [4] | SPRING;DISC | |
| 22. | 425065 | [1] | WASHER | |
| 25. | 947623 | [2] | BOLT | |
| 26. | 947854 | [2] | NUT | |
| 28. | 924514 | [2] | JOINT;BALL | |
| 29. | 947853 | [4] | NUT | |
| 30. | 947886 | [2] | WASHER;SPRING | |
| 32. | 425593 | [1] | BRACKET | |
| 33. | 947619 | [2] | BOLT;SEMS | |
| 35. | 425597 | [1] | CABLE;CONTROL | |
| 37. | 947158 | [1] | SWITCH;MICRO | |
| 38. | 425234 | [1] | SWITCH;MICRO | |
| 40. | 425760 | [1] | BRACKET | |
| 42. | 439919 | [2] | NUT | |
| 43. | 425779 | [1] | LEVER | |
| 44. | 425780 | [1] | LEVER | |
| 45. | 425445 | [1] | GRIP | |
| 46. | 425446 | [1] | GRIP | |
| 47. | 629043 | [2] | PIN;SPRING | |
