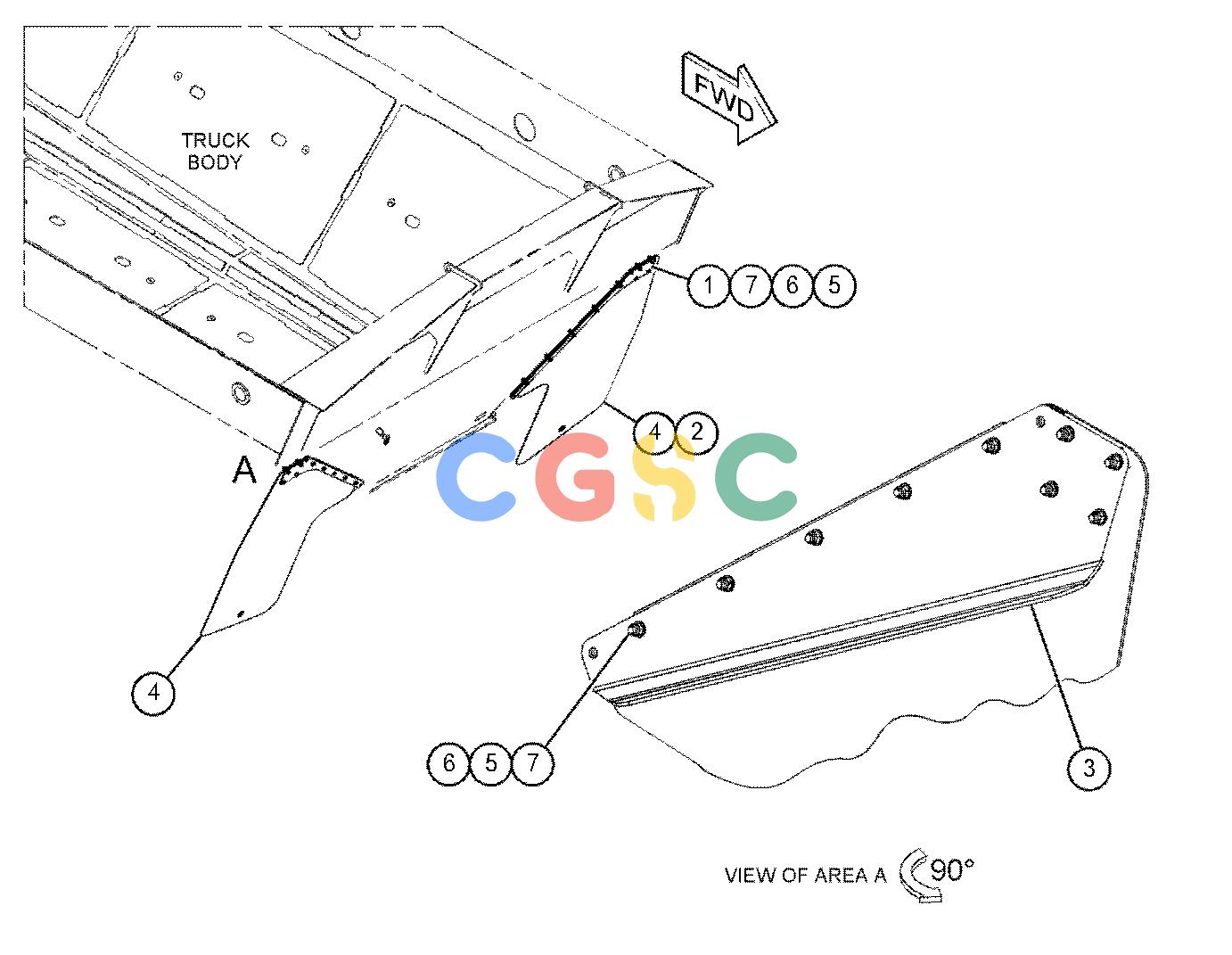

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 164-7293 | [2] | PLATE-MOUNTING | |
| 2. | 169-5026 | [1] | PLATE AS-MOUNTING(LH) | |
| 3. | 169-5027 | [1] | PLATE AS-MOUNTING(RH) | |
| (EACH PLATE AS INCLUDES) | ||||
| 4D-0670 | [2] | WASHER(0.562X1.19X0.188-IN THK) | ||
| 4. | 287-5631 | [2] | DEFLECTOR AS | |
| (EACH INCLUDES) | ||||
| 287-5634 | [1] | EYELET | ||
| 5. | 8T-0389M | [18] | LOCKNUT(M10X1.5-THD) | |
| 6. | 8T-4121 | [36] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4196M | [18] | BOLT(M10X1.5X35-MM) | |
| M | METRIC PART | |||
