卡特零件查询（725C2） 381-0038: LINES GP-GREASE
广数供应链运营团队, 15 02月, 2025，浏览：
295 次

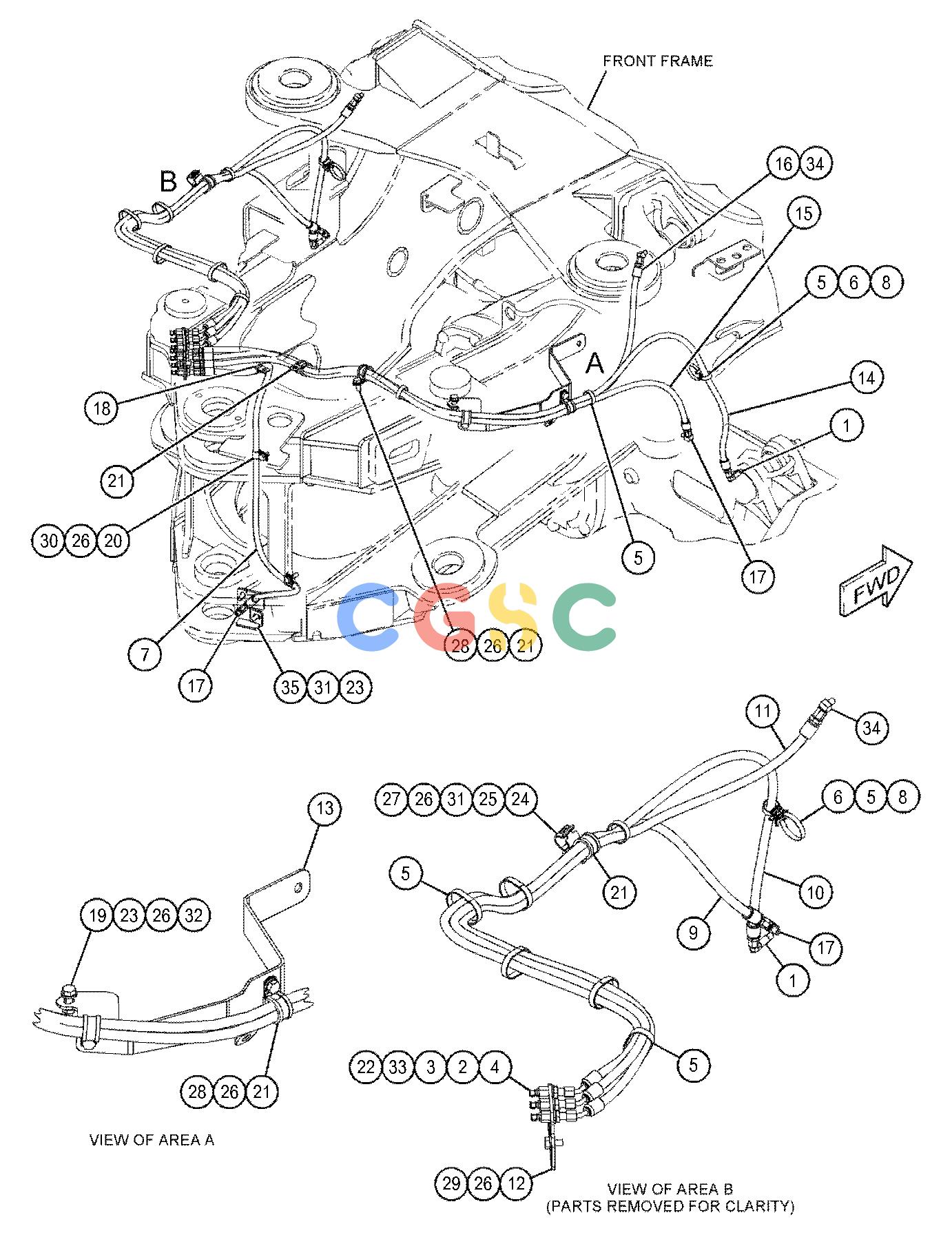

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-4132 | [2] | ELBOW | |
| 2. | 3B-8489 | [7] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 4U-1697 | [7] | ADAPTER-BULKHEAD | |
| 4. | 5U-7151 | [7] | CAP-GREASE | |
| 5. | 6U-0455C | [10] | STRAP | |
| 6. | 7K-1181C | [2] | STRAP-CABLE | |
| 7. | 179-9409I | [1] | HOSE AS | |
| 8. | 290-5562C | [2] | MOUNT(DUAL SWIVEL) | |
| 9. | 446-9658 | [1] | HOSE AS | |
| 10. | 446-9659 | [1] | HOSE AS | |
| 11. | 446-9660 | [1] | HOSE AS | |
| 12. | 454-2922 | [1] | PLATE | |
| 13. | 456-0464C | [1] | BRACKET AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 14. | 458-8476C | [1] | HOSE AS | |
| 15. | 458-8478C | [1] | HOSE AS | |
| 16. | 458-8480C | [1] | HOSE AS | |
| 17. | 2N-1287 | [3] | ELBOW-FLARED | |
| 18. | 320-7691 | [1] | CLIP(LOOP) | |
| 19. | 344-5675CM | [1] | NUT(M10X1.5-THD) | |
| 20. | 3U-2752 | [2] | CLIP(LOOP) | |
| 21. | 3U-2755C | [5] | CLIP(LOOP) | |
| 22. | 5B-3254 | [7] | NUT-JAM(7/16-20-THD) | |
| 23. | 7X-7729C | [3] | WASHER(11X25X3-MM THK) | |
| 24. | 8T-1889 | [1] | CLIP(SLOT) | |
| 25. | 8T-1890 | [1] | CLIP(TAB) | |
| 26. | 8T-4121C | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 28. | 8T-4136CM | [3] | BOLT(M10X1.5X25-MM) | |
| 29. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 30. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 31. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 32. | 8T-4196CM | [1] | BOLT(M10X1.5X35-MM) | |
| 33. | 8T-5360 | [7] | WASHER(12X22.5X2.5-MM THK) | |
| 34. | 9L-5125 | [2] | ELBOW | |
| 35. | 507-1243 | [1] | PLATE AS | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
