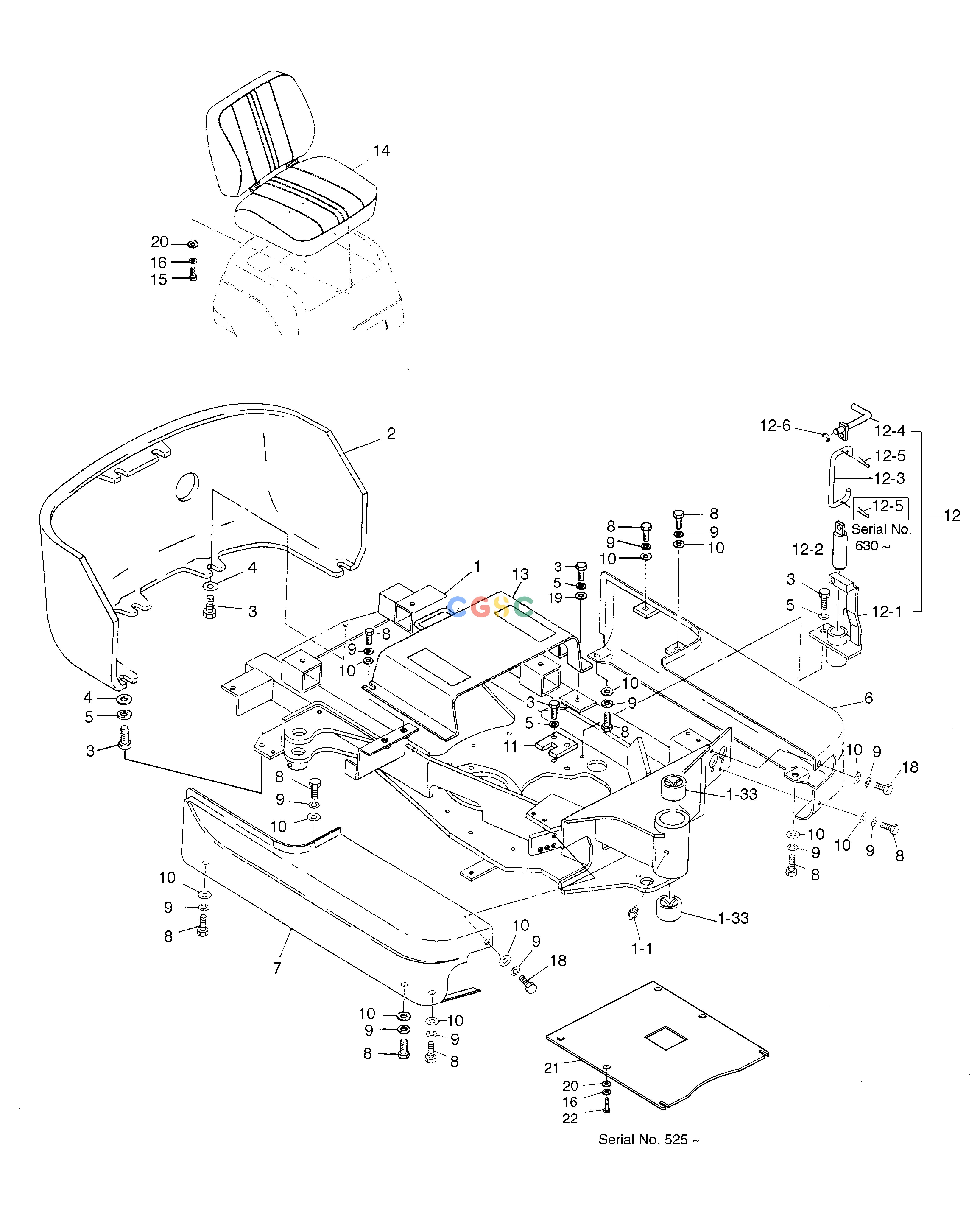

斗山零件查询SWING BODY SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2600-1062
|
[-] |
MAIN FRAME ASS'Y
|
|
| 1. |
2603-1328G
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1328H
|
[1] |
FRAME;MAIN
|
2603-1328J
|
| 1. |
2603-1328J
|
[1] |
FRAME;MAIN
|
|
| 1-1. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 1-33. |
2110-1214A
|
[2] |
BUSH
|
|
| 10. |
S5010513
|
[12] |
WASHER
|
|
| 11. |
2621-2742A
|
[1] |
PLATE;C/J
|
2621-2742B
|
| 11. |
2621-2742B
|
[1] |
PLATE;C/J
|
|
| 12. |
2123-1867A
|
[1] |
LOCK ASS'Y
|
2123-1867B
|
| 12. |
2123-1867B
|
[1] |
LOCK ASS'Y
|
|
| 12-1. |
2237-1058
|
[1] |
BOSS
|
|
| 12-2. |
2123-1866
|
[1] |
PIN;SWING LOCK
|
|
| 12-3. |
2136-1396A
|
[1] |
ROD
|
2136-1396B
|
| 12-3. |
2136-1396B
|
[1] |
ROD
|
|
| 12-4. |
2133-1911
|
[1] |
LEVER
|
|
| 12-5. |
S5735150
|
[1] |
PIN;SPLIT D1.8
|
|
| 12-5. |
S5735150
|
[2] |
PIN;SPLIT D1.8
|
|
| 12-6. |
S6540800
|
[1] |
RING;RETAINING
|
|
| 13. |
2621-2741C
|
[1] |
COVER
|
2621-2741E
|
| 13. |
2621-2741E
|
[1] |
COVER
|
|
| 14. |
2901-1055
|
[1] |
SEAT
|
901-00021
|
| 14. |
901-00021
|
[1] |
SEAT
|
|
| 15. |
S0509053
|
[4] |
. BOLT
|
|
| 16. |
S5102503
|
[4] |
. WASHER
|
|
| 16. |
S5102503
|
[10] |
. WASHER
|
|
| 18. |
S0508453
|
[2] |
BOLT
|
|
| 19. |
S5010613
|
[1] |
WASHER
|
|
| 2. |
2624-1057G
|
[1] |
WEIGHT;COUNTER
|
|
| 2. |
2624-1057H
|
[1] |
WEIGHT;COUNTER
|
|
| 20. |
2114-1058D29
|
[4] |
WASHER
|
|
| 20. |
2114-1058D29
|
[10] |
WASHER
|
|
| 21. |
621-02166
|
[1] |
COVER;UNDER
|
|
| 22. |
S0508853
|
[6] |
. BOLT
|
|
| 3. |
S0558253
|
[9] |
BOLT M10X1.5X35
|
|
| 4. |
2114-1058D10
|
[4] |
WASHER
|
|
| 5. |
S5102603
|
[9] |
. WASHER
|
|
| 6. |
2621-2780C
|
[1] |
COVER;SIDE(L.H.)
|
|
| 6. |
2621-2780E
|
[1] |
COVER;SIDE(L.H.)
|
|
| 7. |
2621-2781C
|
[1] |
COVER;SIDE(R.H.)
|
|
| 7. |
2621-2781E
|
[1] |
COVER;SIDE(R.H.)
|
|
| 8. |
S0508653
|
[12] |
BOLT
|
|
| 9. |
S5102503
|
[12] |
. WASHER
|
|
