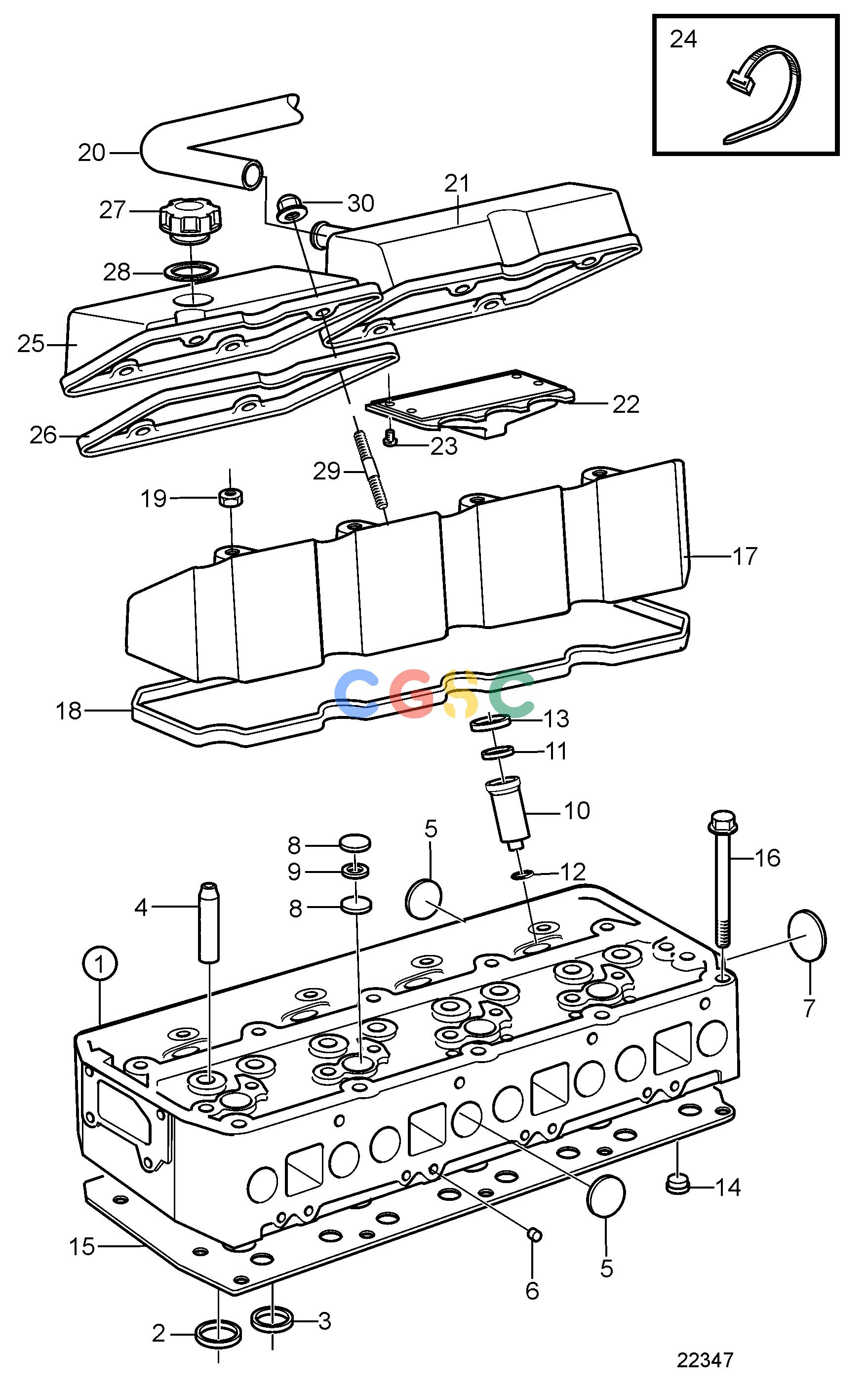

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803306
|
[1] |
Cylinder head
|
SN2203202490-2203207257, (3581552)
|
| 1. |
|
|
|
SN2203207258-, (3583896)
|
| 2. |
858331
|
[4] |
Valve seat, exhaust
|
Std
|
| 2. |
858332
|
[4] |
Valve seat, exhaust
|
O.S=0,20mm
|
| 3. |
860035
|
[4] |
Valve seat, inlet
|
Std
|
| 3. |
860036
|
[4] |
Valve seat, inlet
|
O.S=0,20mm
|
| 4. |
3582561
|
[8] |
Valve guide
|
(419653)
|
| 5. |
477026
|
[9] |
Expansion plug
|
|
| 6. |
967853
|
[8] |
Cap plug
|
|
| 7. |
968955
|
[1] |
Expansion plug
|
|
| 8. |
967948
|
[8] |
Expansion plug
|
|
| 9. |
949329
|
[4] |
Gasket
|
|
| 10. |
3582429
|
[4] |
Nozzle sleeve
|
|
| 11. |
838896
|
[4] |
Sealing ring
|
|
| 12. |
838821
|
[4] |
O-ring
|
|
| 13. |
838619
|
[4] |
Retainer
|
|
| 14. |
465420
|
[4] |
Jet
|
|
| 15. |
3582432
|
[1] |
Cylinder head gasket
|
|
| 16. |
838775
|
[19] |
Flange screw
|
|
| 17. |
838648
|
[1] |
Valve cover
|
|
| 18. |
838652
|
[1] |
Gasket
|
|
| 19. |
945408
|
[4] |
Flange nut
|
(968862)
|
| 20. |
3581473
|
[1] |
Hose
|
|
| 21. |
860541
|
[1] |
Valve cover
|
Replaced by 860542, 860601 & 977771
|
| 21. |
860542
|
[1] |
Valve cover
|
|
| 22. |
860601
|
[1] |
Insert
|
|
| 23. |
977771
|
[4] |
Flange screw
|
|
| 24. |
948211
|
[2] |
Cable tie
|
|
| 25. |
838651
|
[1] |
Valve cover
|
|
| 26. |
838654
|
[2] |
Gasket
|
|
| 27. |
1275403
|
[1] |
Oil filler cap
|
|
| 28. |
1275379
|
[1] |
Gasket
|
|
| 29. |
1542380
|
[8] |
Stud
|
(953034)
|
| 30. |
968458
|
[8] |
Flange cap nut
|
|
