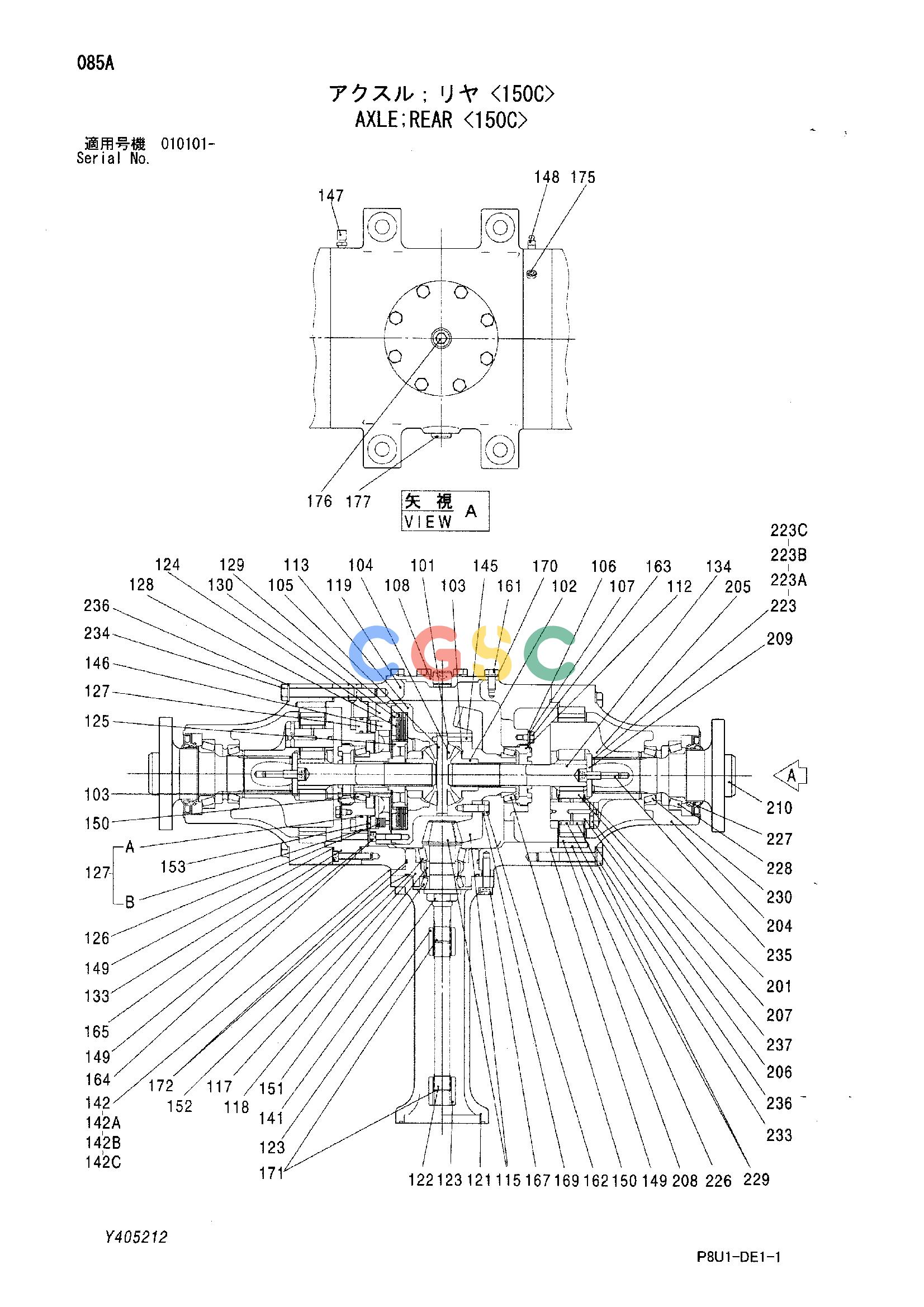

日立零件查询（CC150CW）AXLE;REAR <150C> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
640 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425457 | [1] | AXLE ASS'Y | |
| 101. | 425457-01 | [2] | GEAR;PINION | |
| 102. | 425457-02 | [2] | GEAR;BEVEL | |
| 103. | 425457-03 | [3] | WASHER;THRUST | |
| 104. | 425457-04 | [2] | GEAR;PINION | |
| 105. | 425457-05 | [1] | SHAFT;PINION | |
| 106. | 425457-06 | [2] | PLATE;LOCK | |
| 107. | 425457-07 | [2] | WASHER;LOCK | |
| 108. | 425457-08 | [1] | COVER | |
| 112. | 425457-09 | [2] | NUT | |
| 113. | 425457-10 | [1] | CASE;GEAR | |
| 115. | 425457-11 | [1] | GEAR ASS'Y | |
| 117. | 425457-12 | [1] | CAGE | |
| 118. | 425457-13 | [1] | PIECE;DISTANT | |
| 119. | 425457-14 | [1] | CASE | |
| 121. | 425457-15 | [1] | ADAPTER | |
| 122. | 425457-16 | [1] | SHAFT | |
| 123. | 425457-17 | [2] | SLEEVE | |
| 124. | 425457-18 | [1] | CASE | |
| 125. | 425457-19 | [1] | CLUTCH | |
| 126. | 425457-20 | [4] | SPRING | |
| 127. | 425457-21 | [1] | PISTON ASS'Y | |
| 127A. | 448732 | [1] | O-RING | |
| 127B. | 425457-22 | [1] | O-RING | |
| 128. | 425457-23 | [3] | PLATE;BRAKE | |
| 129. | 425457-24 | [3] | PLATE | |
| 130. | 425457-25 | [1] | PLATE | |
| 133. | 425457-26 | [1] | CASE | |
| 134. | 425457-27 | [2] | SHAFT | |
| 141. | 425457-28 | [1] | NUT | |
| 142. | 425457-29 | [1] | SHIM ASS'Y | |
| 142A. | 425457-30 | [2] | SHIM 0.1mm | |
| 142B. | 425457-31 | [1] | SHIM 0.15mm | |
| 142C. | 425457-32 | [3] | SHIM 0.3mm | |
| 145. | 425457-33 | [1] | PIN | |
| 146. | 425457-34 | [8] | PIN | |
| 147. | 425457-35 | [1] | BREATHER;AIR | |
| 148. | 425457-36 | [1] | BREATHER;AIR | |
| 149. | 425457-37 | [3] | O-RING | |
| 150. | 448729 | [2] | BRG.;ROL. | |
| 151. | 425457-38 | [1] | BRG.;ROL. | |
| 152. | 425457-39 | [1] | BRG.;ROL. | |
| 153. | 425457-40 | [1] | BRG.;NEEDLE | |
| 161. | 425457-41 | [8] | BOLT | |
| 162. | 425457-42 | [8] | BOLT | |
| 163. | 425457-43 | [4] | BOLT | |
| 164. | 425457-44 | [12] | BOLT | |
| 165. | 425457-45 | [2] | BOLT | |
| 167. | 425457-46 | [8] | BOLT | |
| 169. | 425457-47 | [8] | WASHER;PLANE | |
| 170. | 947887 | [8] | WASHER;SPRING | |
| 171. | 425457-48 | [2] | RING;RETAINING | |
| 172. | 425457-49 | [2] | O-RING | |
| 175. | 425457-50 | [1] | PLUG | |
| 176. | 425457-51 | [1] | PLUG | |
| 177. | 446025 | [1] | PLUG;MAGNET | |
| 201. | 425457-52 | [12] | WASHER;THRUST | |
| 204. | 425457-53 | [2] | HOUSING | |
| 205. | 425457-54 | [2] | SPIDER | |
| 206. | 425457-55 | [6] | PIN | |
| 207. | 425457-56 | [6] | GEAR;PLANETARY | |
| 208. | 425457-57 | [2] | GEAR;INTERNAL | |
| 209. | 425457-58 | [2] | WASHER;THRUST | |
| 210. | 425457-59 | [2] | SHAFT;DRIVE | |
| 223. | 425457-60 | [1] | SHIM ASS'Y | |
| 223A. | 425457-61 | [2] | SHIM 0.1mm | |
| 223B. | 425457-62 | [3] | SHIM 0.15mm | |
| 223C. | 425457-63 | [3] | SHIM 0.5mm | |
| 226. | 425457-64 | [6] | PIN | |
| 227. | 448724 | [2] | SEAL;OIL | |
| 228. | 448725 | [2] | BRG.;ROL. | |
| 229. | 425457-65 | [12] | BRG.;NEEDLE | |
| 230. | 425457-66 | [2] | BRG.;ROL. | |
| 233. | 425457-67 | [12] | BOLT | |
| 234. | 425457-68 | [12] | BOLT | |
| 235. | 425457-69 | [2] | BOLT;SOCKET | |
| 236. | 425457-70 | [24] | WASHER;PLANE | |
| 237. | 425457-71 | [6] | PIN;SPRING | |
