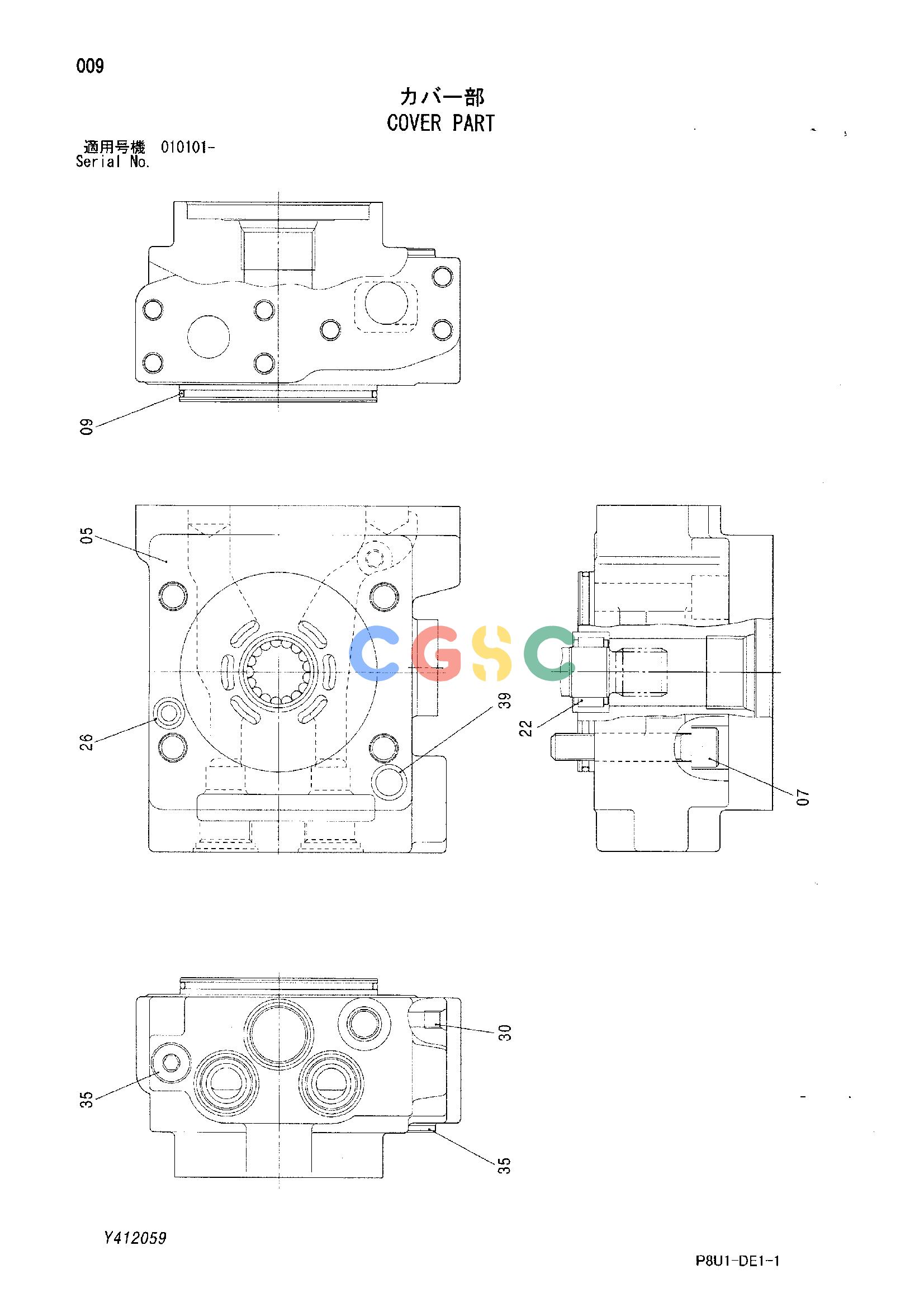

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 425458-26 | [1] | COVER PART | ||
| 05. | +++++++ | [1] | COVER | |
| 07. | 425458-27 | [4] | BOLT;SOCKET | |
| 09. | 425458-28 | [1] | O-RING | |
| 22. | 425458-29 | [1] | BRG. | |
| 26. | 425458-30 | [1] | O-RING | |
| 30. | 425458-31 | [1] | PLUG | |
| 35. | 448201 | [2] | PLUG | |
| 39. | 448211 | [1] | RING |
广数供应链运营团队, 15 02月, 2025，浏览： 688 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 425458-26 | [1] | COVER PART | ||
| 05. | +++++++ | [1] | COVER | |
| 07. | 425458-27 | [4] | BOLT;SOCKET | |
| 09. | 425458-28 | [1] | O-RING | |
| 22. | 425458-29 | [1] | BRG. | |
| 26. | 425458-30 | [1] | O-RING | |
| 30. | 425458-31 | [1] | PLUG | |
| 35. | 448201 | [2] | PLUG | |
| 39. | 448211 | [1] | RING |
