ASSEMBLY
|
HFI

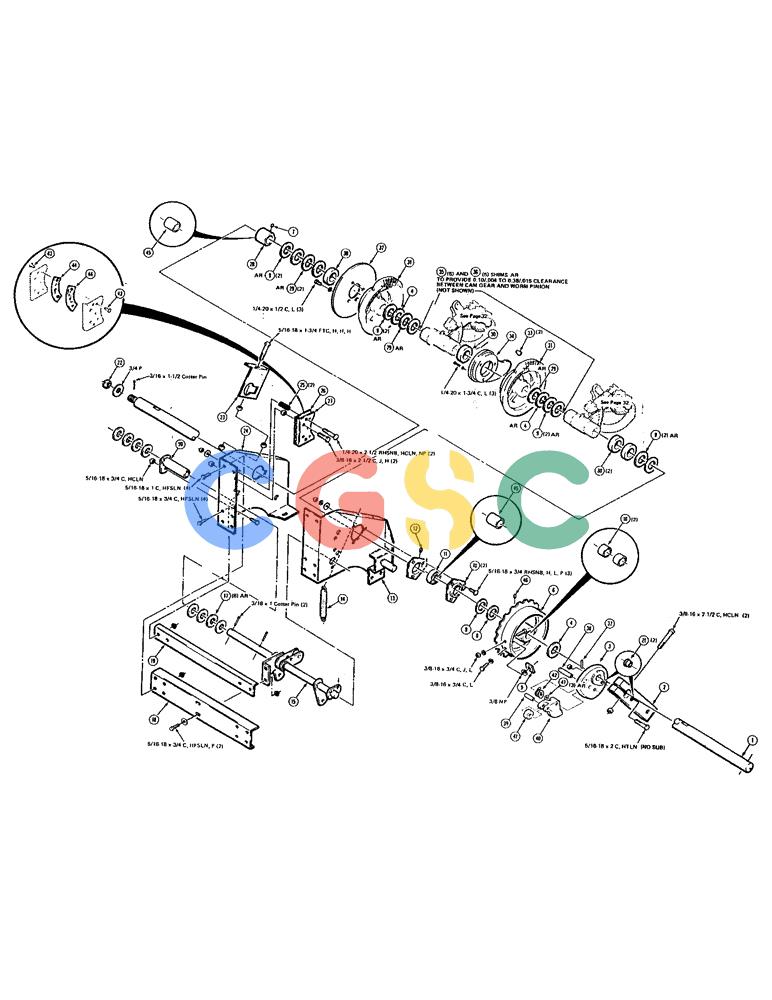

TWINE KNOTTER COMPLETE (items 1-45)
|
| 1. |
6853394
|
[1] |
SHAFT
|
HFI
DRIVE SHAFT, knotter
|
| 2. |
6853840
|
[1] |
ARM
|
CAS
shear
|
| 3. |
6853659
|
[1] |
CAM
|
HFI
clutch
|
| 4. |
7852171
|
[3] |
BUSHING
|
CAS
1-1/8 x 20 gauge machinery bushing
|
| 5. |
6853857
|
[1] |
LUG
|
CAS
|
| 6. |
6853303
|
[1] |
PINION
|
L
SPROCKET ASSEMBLY (includes bushings)
|
| 7. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 8. |
52522
|
[1] |
BUSHING
|
CAS
1-1/8 x 10 machinery bushing Superseded by part number: 51200384
|
| 9. |
7852189
|
[9] |
BUSHING
|
CAS
1-1/8 x 22 machinery bushing Superseded by part number: 195-2111
|
| 10. |
51482
|
[2] |
FLANGE
|
HFI
BEARING FLANGE Superseded by part number: T28259
|
| 11. |
6553333
|
[1] |
CIRCULAR BRUSH
|
HFI
SPHERICAL BEARING
|
| 12. |
77248
|
[1] |
FITTING
|
HFI
1/4 x 15/16 zerk Superseded by part number: 86547835
|
| 13. |
6853774
|
[1] |
PANEL
|
HFI
- left
|
| 14. |
7758147
|
[1] |
SPRING
|
CAS
- cam follower Superseded by part number: 700714064
|
| 15. |
700101175
|
[1] |
SHAFT
|
HFI
rocker
|
| 16. |
7852023
|
[2] |
BUSHING
|
CAS
BRONZE BUSHING, 1-1/8 I.D. x 3/4" long
|
| 17. |
95-81182
|
[8] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
|
| 18. |
700101174
|
[1] |
SHIELD
|
HFI
lower
|
| 19. |
6853428
|
[1] |
SHIELD
|
HFI
- upper
|
| 20. |
6553523
|
[1] |
ANCHOR
|
CAS
BEARING MOUNT
|
| 21. |
6853592
|
[1] |
SLEEVE
|
CAS
shear
|
| 22. |
7774227
|
[1] |
HARDWARE
|
HFI
3/4-16 hex slotted nut Superseded by part number: 25-1912
|
| 23. |
6553358
|
[1] |
RETAINER
|
HFI
BEARING RETAINER
|
| 24. |
6853402
|
[1] |
PANEL
|
HFI
SUPPORT PANEL - right
|
| 25. |
7758154
|
[2] |
SPRING
|
CAS
- brake
|
| 26. |
6553572
|
[1] |
BRAKE LINING
|
CAS
KNOTTER BRAKE - right
|
| 27. |
6553556
|
[1] |
BRACKET
|
CAS
KNOTTER BRAKE - left
|
| 28. |
6553341
|
[1] |
CLUTCH ASSEMBLY
|
HFI
CLUTCH BEARING ASSEMBLY (includes bushing)
|
| 29. |
740431
|
[4] |
WASHER
|
CAS
1-1/8 x 14 machinery bushing Superseded by part number: 495-81197
|
| 30. |
6853899
|
[4] |
SPACER
|
CAS
1-5/32 I.D. x 9/16" long
|
| 31. |
6553291
|
[2] |
GEAR
|
HFI
cam Superseded by part number: 700122623
|
| 32. |
6553283
|
[1] |
DISC
|
CAS
brake
|
| 33. |
761189
|
[2] |
WOODRUFF KEY,#C, 5/16" x 1 1/8"
|
HFI
5/16 x 1-1/8 Woodruff key Superseded by part number: 280414
|
| 34. |
700101186
|
[1] |
CAM
|
HFI
ARM
|
| 35. |
6553325
|
[5] |
ADJUSTING PLATE
|
CAS
SHIM, .010 thick
|
| 36. |
6553317
|
[5] |
ADJUSTING PLATE
|
CAS
SHIM, .005 thick
|
| 37. |
63024
|
[1] |
SPRING
|
NNA
1/8" x 1 1/4", Slotted Superseded by part number: 19711R1, 19711R1, NLS
|
| 38. |
6853642
|
[1] |
PIN
|
CAS
1/2 x 2-1/4" long
|
| 39. |
762286
|
[1] |
PIN
|
CAS
3/8 x 1-1/2 slotted spring pin Superseded by part number: 81844
|
| 40. |
6853626
|
[1] |
DRIVE DOG
|
CAS
DOG, knotter
|
| 41. |
6853634
|
[1] |
ROLLER
|
CAS
|
| 42. |
7758857
|
[1] |
SPRING
|
CAS
torsion
|
| 43. |
64980
|
[6] |
RIVET
|
CAS
1/8 x 1/4 aluminum rivet
|
| 44. |
7827587
|
[2] |
LINING
|
CAS
brake
|
| 45. |
700107120
|
[2] |
BUSHING
|
HFI
1-1/8 I.D. x 1-1/2" long
|
| 46. |
77040
|
[1] |
FITTING
|
CAS
1/4-28 x 45deg. zerk Superseded by part number: 219-90, 219-90, 87569
|
| 47. |
95-81100
|
[3] |
WASHER,33/64" x 7/8" x .049"
|
CAS
1/2 x 18 machinery bushing Superseded by part number: 86639334
|
| . . |
703579
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd
|
CAS
5/16-18 x 1 hex cap screw grade 5
|
| . . |
7703499
|
[7] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 x 3/4 hex cap screw grade 5 Superseded by part number: 87872
|
| . . |
7772858
|
[1] |
BOLT,Hex, 5/16" x 1 3/4", Gr 5
|
CAS
5/16-18 x 1-3/4 full thread hex cap screw grade 5
|
| . . |
413-532
|
[1] |
BOLT,Hex, 5/16" - 18 x 2", Gr 5
|
CAS
5/16-18 x 2 hex cap screw grade 5 Superseded by part number: 9636711
|
| . . |
703199
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 x 3/4 hex cap screw grade 5
|
| . . |
7701899
|
[3] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
|
CAS
3/8-16 x 2-1/2 hex cap screw grade 5 Superseded by part number: 87936
|
| . . |
7770233
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/2", Gr 5
|
CAS
1/4-20 x 2-1/2 round head square neck bolt grade 5 Superseded by part number: 9827610
|
| . . |
700013
|
[3] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 x 3/4 round head square neck bolt grade 5
|
| . . |
703140
|
[3] |
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
|
CAS
1/4-20 x 1-3/4 hex cap screw grade 5 Superseded by part number: 413-428, 413-428, NLS
|
| . . |
413-48
|
[3] |
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
CAS
1/4-20 x 1/2 hex cap screw grade 5 Superseded by part number: 88542
|
| . . |
704783
|
[2] |
SHIM,.020" Thk
|
NNA
1/4-20 hex center lock nut Superseded by part number: 230-4214
|
| . . |
704619
|
[1] |
SUPPORT
|
NNA
5/16-18 hex center lock nut Superseded by part number: 230-4215
|
| . . |
704635
|
[2] |
NUT
|
CAS
3/8-16 hex center lock nut Superseded by part number: 230-4216, 230-4216, 88902
|
| . . |
705707
|
[2] |
WASHER,1/4", SAE
|
CAS
1/4 narrow plain washer Superseded by part number: 87361
|
| . . |
231-4115
|
[1] |
NUT,5/16"-18, GB
|
CAS
5/16-18 hex top lock nut Superseded by part number: 280736
|
| . . |
705624
|
[1] |
TAPPET
|
NNA
1/2 narrow plain washer Superseded by part number: 495-11053, 495-11053, NLS
|
| . . |
705657
|
[1] |
WASHER
|
CAS
3/8 narrow plain washer Superseded by part number: 495-11041, 495-11041, NLS
|
