沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EEngineEngine Suspension for DP-Drive: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
537 次

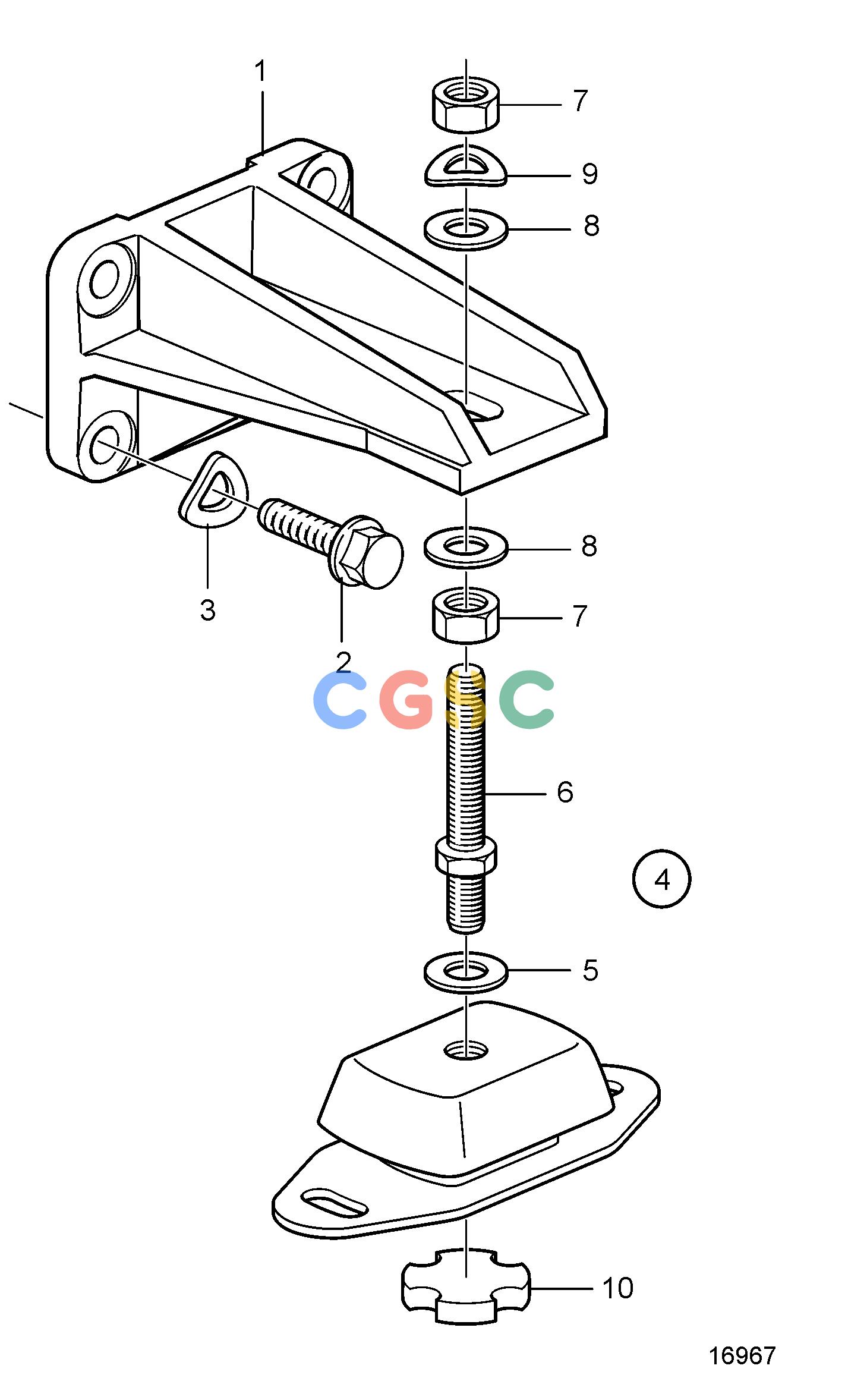

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580748
|
[2] |
Engine bracket
|
|
| 2. |
965192
|
[7] |
Flange screw
|
L=40mm
|
| 2. |
965193
|
[1] |
Flange screw
|
L=50mm
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
858161
|
[2] |
Rubber element
|
Ratio 2.15:1
|
| 5. |
955900
|
[2] |
Washer
|
|
| 6. |
860950
|
[2] |
Adjusting screw
|
|
| 7. |
955806
|
[4] |
Hexagon nut
|
|
| 8. |
955901
|
[2] |
Washer
|
D=34mm
|
| 8. |
978991
|
[2] |
Washer
|
D=40mm
|
| 9. |
941913
|
[2] |
Spring washer
|
|
| 10. |
843299
|
[2] |
Rubber disc
|
|
