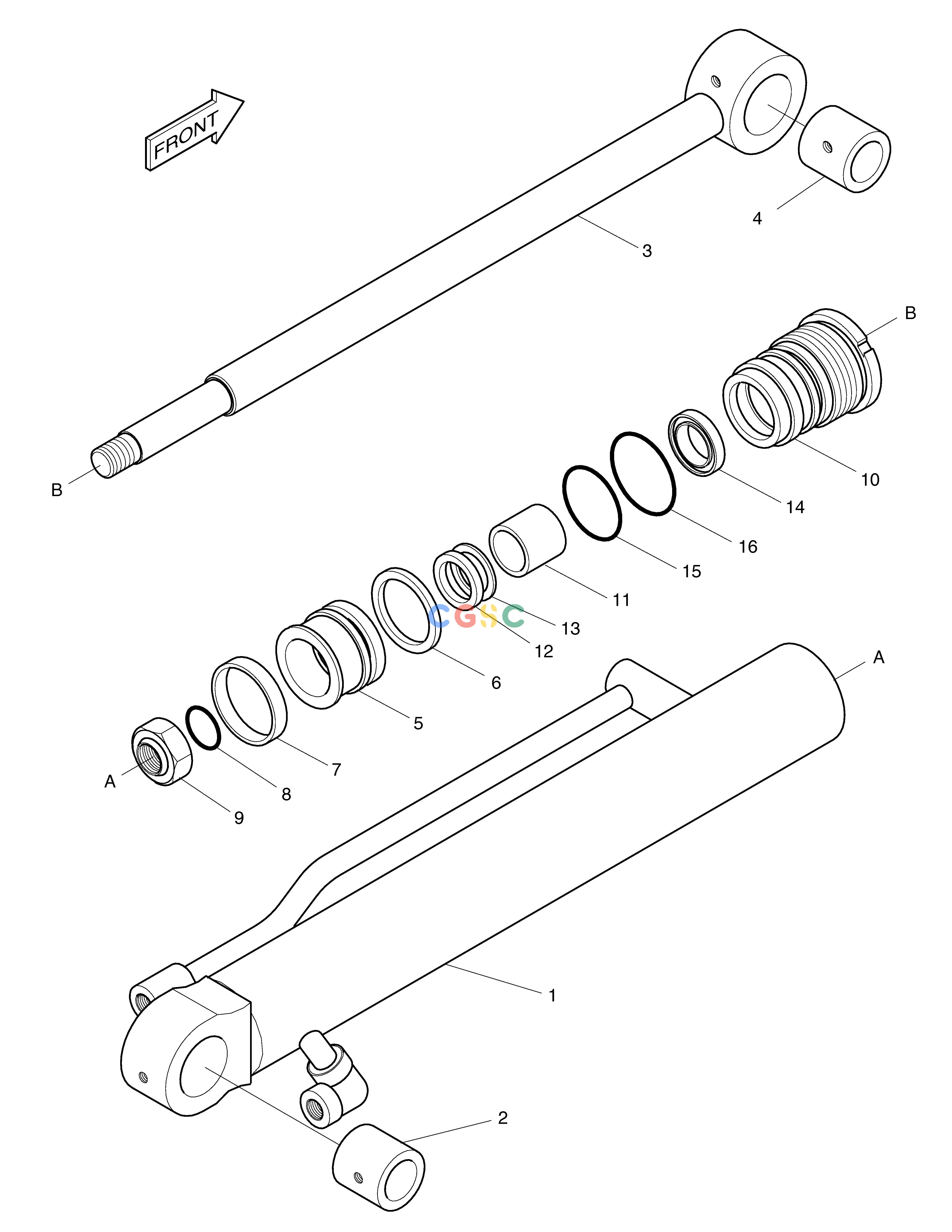

斗山零件查询ARM CYLINDER SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9173KT
|
[1] |
SEAL KIT;ARM
|
|
| -. |
2440-9173B
|
[1] |
ARM CYLINDER
|
2440-9173C
|
| -. |
2440-9173C
|
[1] |
CYLINDER;ARM
|
|
| 1. |
53A200-1
|
[1] |
TUBE ASS'Y
|
|
| 10. |
53A217-0
|
[1] |
COVER;ROD
|
|
| 11. |
E8410112
|
[1] |
BUSH;DU
|
|
| 12. |
E5310280
|
[1] |
PACKING;U I30X40X6
|
|
| 13. |
E6500520
|
[1] |
RING;BACK UP D30XD40X3T
|
|
| 14. |
E6010090
|
[1] |
SEAL;DUST I30X42X6
|
|
| 15. |
E6311041
|
[1] |
O-RING 1BG50
|
|
| 16. |
E6311161
|
[1] |
O-RING
|
|
| 2. |
53A212-0
|
[1] |
BUSH
|
|
| 3. |
53A213-1
|
[1] |
ROD ASS'Y
|
|
| 4. |
53A212-0
|
[1] |
BUSH
|
|
| 5. |
53A216-0
|
[1] |
PISTON
|
|
| 6. |
E5100260
|
[1] |
SEAL
|
|
| 7. |
00W228-0
|
[1] |
RING;WEAR D55XD50XW15
|
|
| 8. |
E6300491
|
[1] |
O-RING 1BP24
|
|
| 9. |
00N204-0
|
[1] |
NUT
|
|
