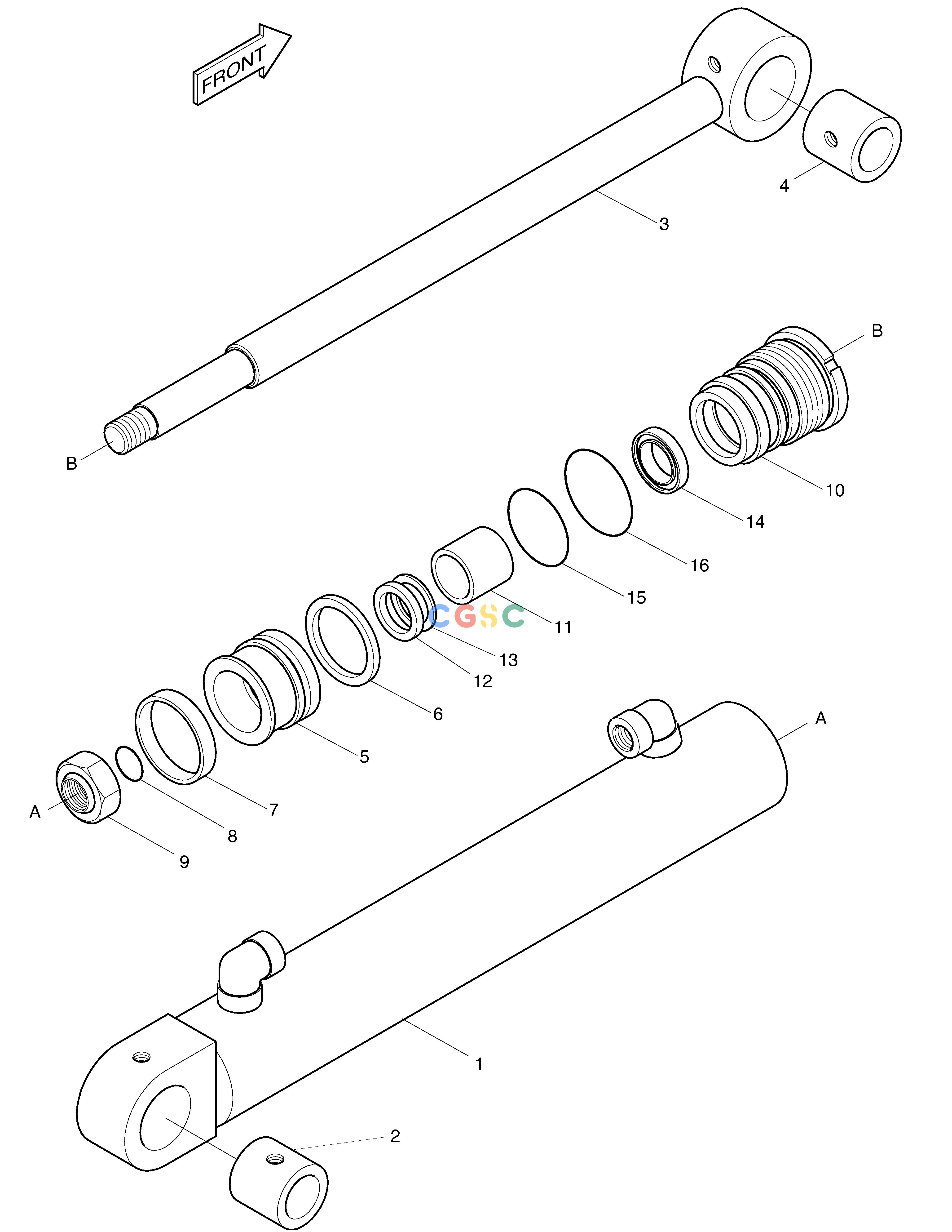

斗山零件查询BOOM SWING CYLINDER SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9175BKT
|
[1] |
SEAL KIT
|
|
| -. |
2440-9175B
|
[1] |
BOOM SWING CYLINDER
|
2440-9175C
|
| -. |
2440-9175C
|
[1] |
CYLINDER;BOOM SWING
|
|
| 1. |
53S200-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
53U212-0
|
[1] |
COVER;ROD
|
|
| 11. |
E8410097
|
[1] |
BUSH;DU
|
|
| 12. |
E5310200
|
[1] |
PACKING;U I25X33X5
|
|
| 13. |
E6500370
|
[1] |
RING;BACK UP D25XD33X2T
|
|
| 14. |
E6010070
|
[1] |
SEAL;DUST I25X37X6
|
|
| 15. |
E6310961
|
[1] |
O-RING
|
|
| 16. |
E6311041
|
[1] |
O-RING 1BG50
|
|
| 2. |
53A212-0
|
[1] |
BUSH
|
|
| 3. |
53S204-0
|
[1] |
ROD ASS'Y
|
|
| 4. |
53A212-0
|
[1] |
BUSH
|
|
| 5. |
53U211-0
|
[1] |
PISTON
|
|
| 6. |
E5100240
|
[1] |
SEAL 50X40X4.3
|
|
| 7. |
00W203-0
|
[1] |
RING;WEAR D50XD45XW15
|
|
| 8. |
E6300471
|
[1] |
O-RING
|
|
| 9. |
00N501-0
|
[1] |
NUT
|
|
