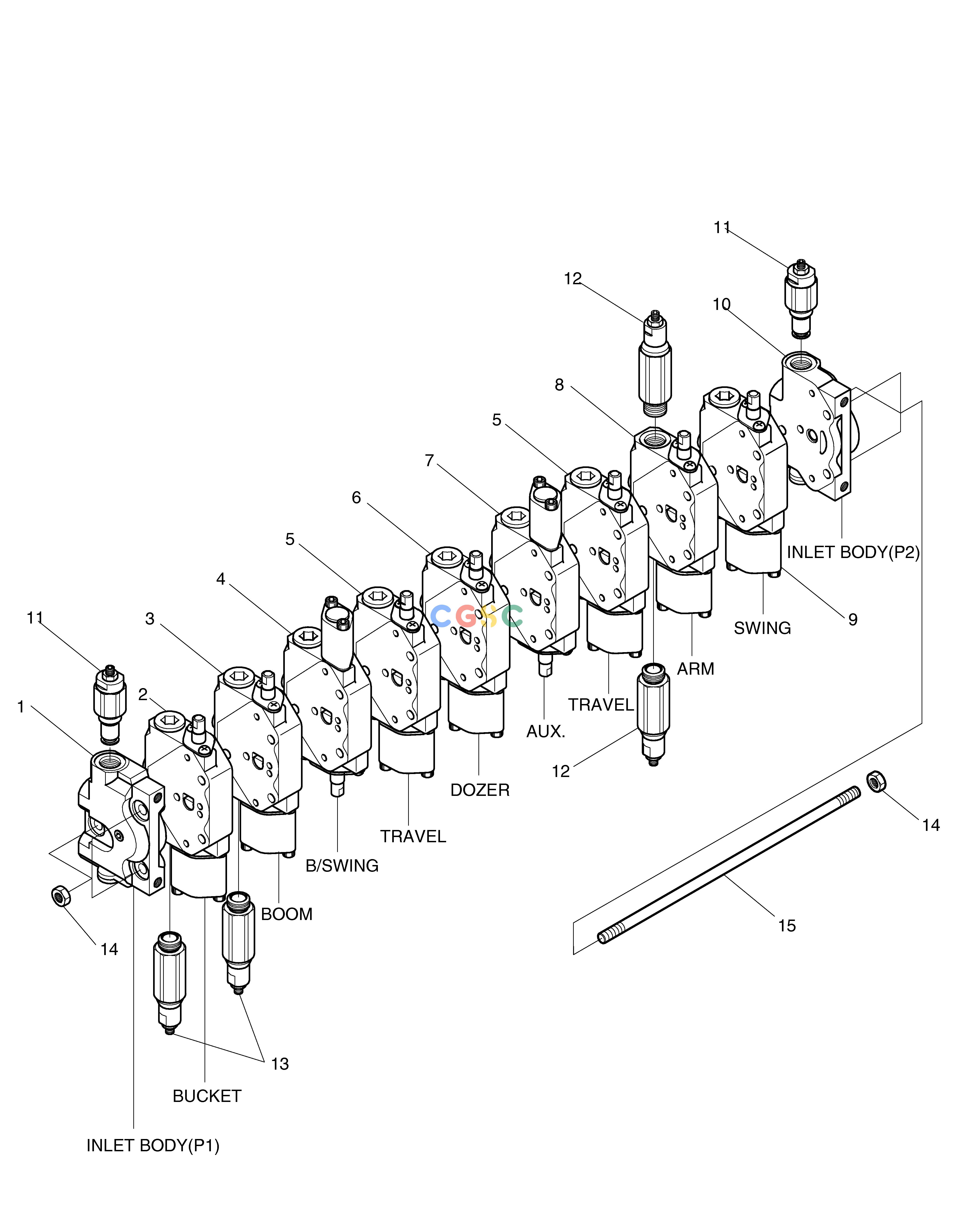

斗山零件查询CONTROL VALVE SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
319 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9174
|
[1] |
CONTROL VALVE ASS'Y
|
|
| 1. |
2371417247901
|
[1] |
INLET BODY ASS'Y
|
|
| 10. |
2371420261001
|
[1] |
INLET BODY ASS'Y
|
|
| 11. |
2371417105308
|
[2] |
RELIEF VALVE ASS'Y
|
|
| 12. |
2371417431103
|
[2] |
O/L RELIEF VALVE ASS'Y
|
|
| 13. |
2371417431102
|
[2] |
O/L RELIEF VALVE ASS'Y
|
|
| 14. |
01010110080004
|
[6] |
NUT M8
|
|
| 15. |
6251413047125
|
[3] |
BOLT M8
|
|
| 2. |
2371320170401
|
[1] |
WORK BODY ASS'Y-BUCKET
|
|
| 3. |
2371320170501
|
[1] |
WORK BODY ASS'Y-BOOM
|
|
| 4. |
2371320170601
|
[1] |
WORK BODY ASS'Y-B/SWING
|
|
| 5. |
2371320170701
|
[2] |
WORK BODY ASS'Y-TRAVEL
|
|
| 6. |
2371320170801
|
[1] |
WORK BODY ASS'Y-DOZER
|
|
| 7. |
2371320170901
|
[1] |
WORK BODY ASS'Y-AUX.
|
|
| 8. |
2371320171001
|
[1] |
WORK BODY ASS'Y-ARM
|
|
| 9. |
2371320171101
|
[1] |
WORK BODY ASS'Y-SWING
|
|
