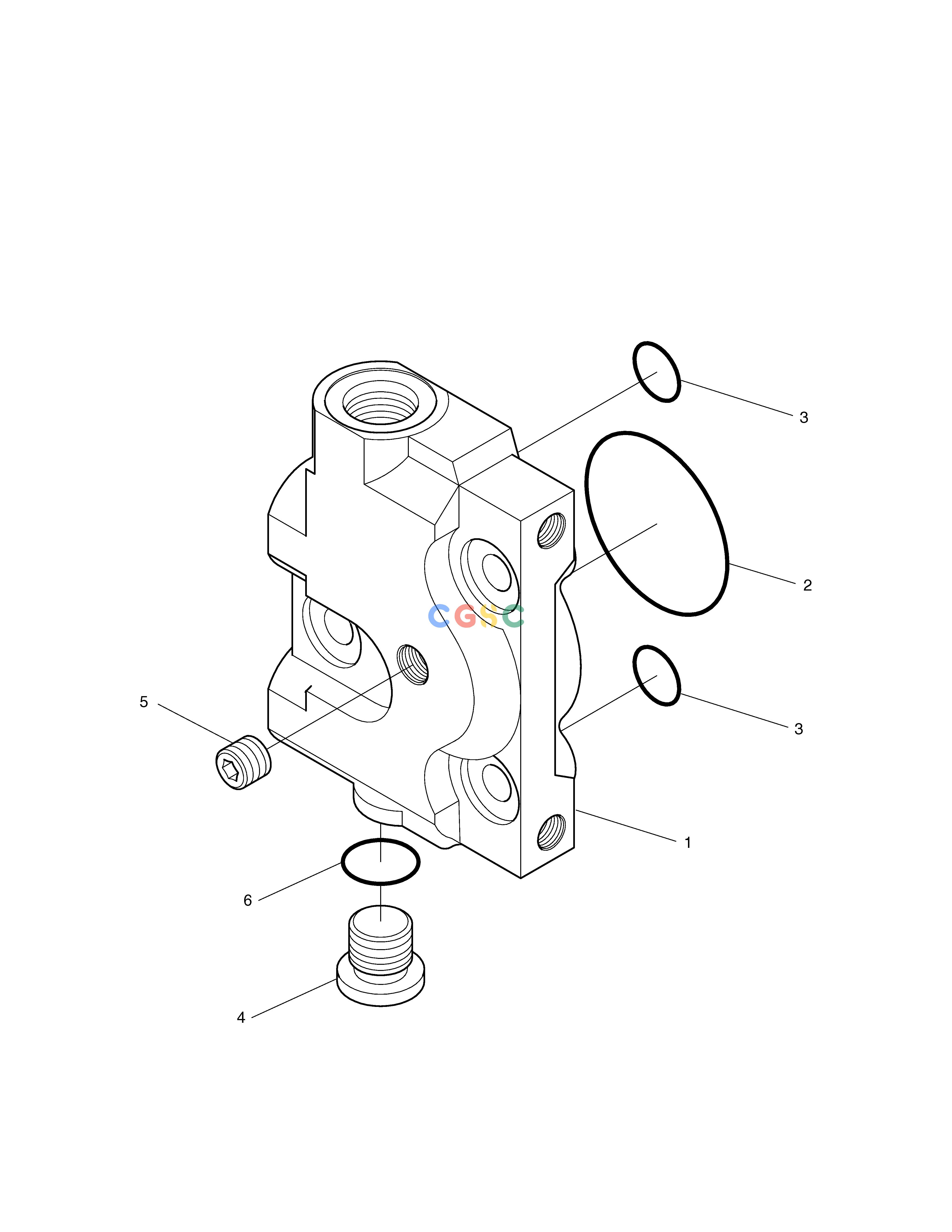

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2371217191001 | [1] | BODY | |
| 2. | 0403100012710 | [1] | O-RING ARP 1B127 | |
| 3. | 0401100010010 | [2] | O-RING 1B P10 | |
| 4. | 2355416618801 | [1] | PLUG PF1/4 | |
| 5. | 0360000100031 | [1] | PLUG;HEX. SOCKET PT1/8 | |
| 6. | 0401100011010 | [1] | O-RING 1B P11 |
广数供应链运营团队, 15 02月, 2025，浏览： 178 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2371217191001 | [1] | BODY | |
| 2. | 0403100012710 | [1] | O-RING ARP 1B127 | |
| 3. | 0401100010010 | [2] | O-RING 1B P10 | |
| 4. | 2355416618801 | [1] | PLUG PF1/4 | |
| 5. | 0360000100031 | [1] | PLUG;HEX. SOCKET PT1/8 | |
| 6. | 0401100011010 | [1] | O-RING 1B P11 |
